Place of Origin: | Hangzhou, China |
---|---|
Brand Name: | OEM Produce |
Certification: | CPR. |
Model Number: | RG6+2C |
Minimum Order Quantity: | 10km |
Price: | FOB Shanghai Price: 43.0USD/305m |
Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
Delivery Time: | 20days after deposit |
Payment Terms: | TT. LC |
Supply Ability: | 5000km/ Month |
Application: | Camer/ CCTV/ Telecommunication | Insulatioin: | Foam PE |
---|---|---|---|
Shield: | AL Foil+Braiding | Color: | Blue PVC Or Customized |
Power Wire: | 2x18AWG CCA | Working Voltage: | 12V DC/ 24V AC |
Brand: | OEM | Packing: | 1000Ft/ 305Meter |
High Light: | siamese cable for cctv,siamese cable for security cameras |

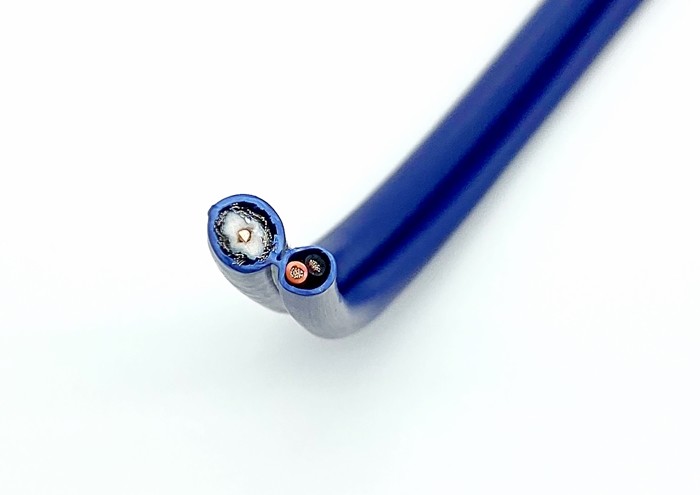

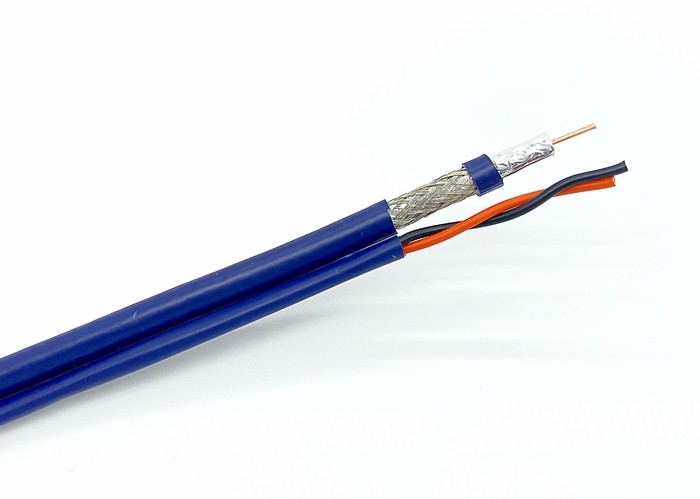

RG59 Standard: 1.1mm BC+4.7mm FPE+16x8x0.12mm TCCA +7.0mm PVC+18AWG CCA Power Wire 65° Packing: 305m/Roll
Construction | Material | Diameter(mm) |
Inner Conductor | BC | 1.1 |
Dielectric | Foam PE | 4.7 |
First Shield | Bonded AL Foil | 18# |
Second Shield | TCCA Braid | 90% |
Outer Jacket | PVC Blue | 7.0 |
Power Wire Conductor | CCA | 18AWG |
Power Wire Insulation | PVC | 1.9 |
Electrical Characteristics
Impedance (Ω) | 75±3 |
Capacitance (pF/m) | 52±2 |
Velocity of Propagation(﹪) | 85.0 |
Sparker Test | 4000 |
Return Loss 5-1000MHz(dB) |
≥22 |
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.9 | 2.8 |
55 | 2.1 | 6.7 |
187 | 3.6 | 11.8 |
211 | 3.8 | 12.5 |
400 | 5.1 | 16.7 |
500 | 5.7 | 18.7 |
750 | 7.0 | 22.8 |
860 | 7.5 | 24.6 |
1000 | 8.0 | 26.3 |
1500 | 9.9 | 32.5 |
1800 | 10.9 | 35.6 |
2200 | 12.6 | 41.2 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
