Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CE/ ROHS |
| Model Number: | GYFXTY-FL |
| Minimum Order Quantity: | 10km |
| Price: | 100-300usd |
| Packaging Details: | 2000m/ wooden drum |
| Delivery Time: | 15days |
| Supply Ability: | 1000km/ month |
| Jacket: | UV PE/ PVC Or LSZH | Type: | GYFXTY-FL |
|---|---|---|---|
| Application: | FTTH Conduit And Duct Installation | Shape: | Flat Span |
| Cable: | Outdoor Optical Fiber Cable | ||
| High Light: | outdoor fiber patch cable,aerial fiber optic cable |
||

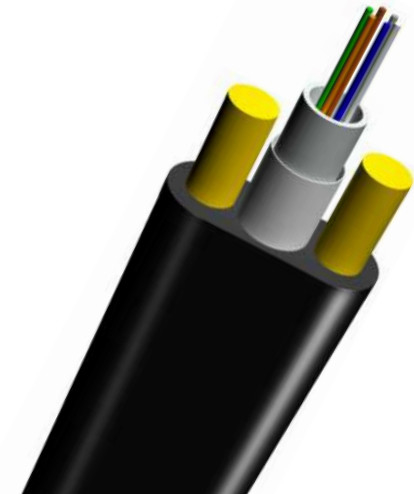

GYFXTY-FL Outdoor Cable
Uni-Tube All Dielectric Aerial Drop Optical Fiber Cable
Description

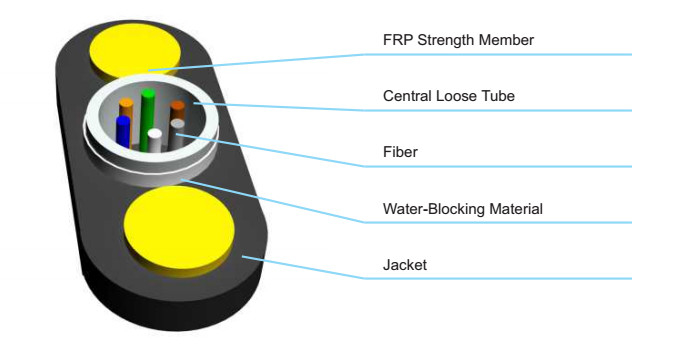

Designed for quick installation and ease in handling, EFON Flat-Span Drop cable serves as the last link for the FTTx networks of today. The design is constructed utilizing proven buffer tube technology with a single tube containing up to 24 fibers. Two diametrically opposed dielectric rods are placed along side the buffer tube to provide the mechanical properties of the cable. The finished product, with its compact size, acts as a self-supporting aerial solution for those last mile drops to the customer's home or office.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D
Features
Compact size, use universal cable clamp make installation easily. Up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection. Two parallel FRP wire to enhance tensile resistant.
UV and moisture-resistant design.
Designed for use with inexpensive attachment hardware. Self-supporting no messenger needed.
Applications
Conduit, Duct, Aerial/Lashed.
FTTx, Access.
Option
FRP or KFRP strength member can be choosed .
Glass yarn or Aramid yarn can be choosed.
Optical Characteristics GYFXTY-FL
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |||||
| Attenuation(+20℃) | 850 nm | ≤3.0 dB/km | ≤3.3 dB/km | ||||||
| 1300 nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||||
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||||
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | |||||||
| Bandwidth | 850 nm | ≥500 MHz·km | ≥200 Mhz·km | ||||||
| 1300 nm | ≥500 MHz·km | ≥500 Mhz·km | |||||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||||||
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | |||||||
Structure and Technical Specifications (7×1.0mm-Steel Stranded Wire)
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) | Aerial Install span with 1%sag | ||||
| Short Term | Long Term | Short Term | Long Term | NESC Light | NESC Medium | NESC Heavy | |||
| 2~12 | 4.5X8.0 | 39 | 1500 | 600 | 1000 | 300 | 100meters | 70meters | 50meters |
| 14~24 | 4.9X8.4 | 45 | 1500 | 600 | 1000 | 300 | 80meters | 60meters | 40meters |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
