Home > products > 75 Ohm Coaxial Cable > RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV

RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV

Product Details

Place of Origin: Hangzhou, China

Brand Name: OEM Produce

Certification: CE. ROHS.

Model Number: RG6 CATV Coaxial Cable

Payment & Shipping Terms

Minimum Order Quantity: 10km

Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel

Delivery Time: 20days after deposit

Payment Terms: TT. LC

Supply Ability: 5000km/ Month

Get Best Price
High Light:

75 ohm video cable

,

satellite coax cable

Type:
2RG6 Quad+2CAT5E
Number Of Conductors:
1
PVC Color:
OEM Manufacturer
Packing:
OEM Manufacturer
Feature:
75 Ohm Coaxial Cable With Lan Cable
Type:
2RG6 Quad+2CAT5E
Number Of Conductors:
1
PVC Color:
OEM Manufacturer
Packing:
OEM Manufacturer
Feature:
75 Ohm Coaxial Cable With Lan Cable
RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV

2RG6 Quad+2CAT5E 75 Ohm Coaxial Cable with Lan Cable CATV CCTV OEM Manufacturer



2RG6+2CAT5E Combo cable



2RG6 Standard

Construction Material      Diameter(mm)
Inner Conductor    BC     1.02
Dielectric    Foam PE         4.57
First Shield       Bonded AL Foil       18
Second Shield       AL Braid     48%
Third Shield
Outer Jacket    PVC      6.9



2RG6 CAT5E

Construction Material Diameter(mm)
Inner Conductor BC 0.51/ 24AWG
Dielectric Solid PE 0.91
First Shield
Second Shield
Third Shield
Outer Jacket PVC 5.1



Electrical Characteristics

Impedance (Ω)       75±3
Capacitance (pF/m)    52±2
Velocity of Propagation(﹪)   85.0

Return Loss   5-1000MHz(dB)

≥22

Return Loss  1000-3000MHz(dB)

≥20



Attenuation(@20℃)

Frequency (MHZ)   Min Attenuation (dB/100ft)   Max Attenuation (dB/100m)
 5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6

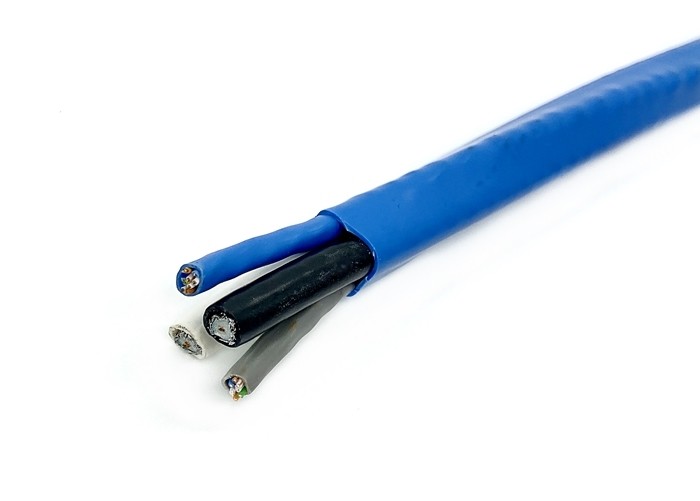

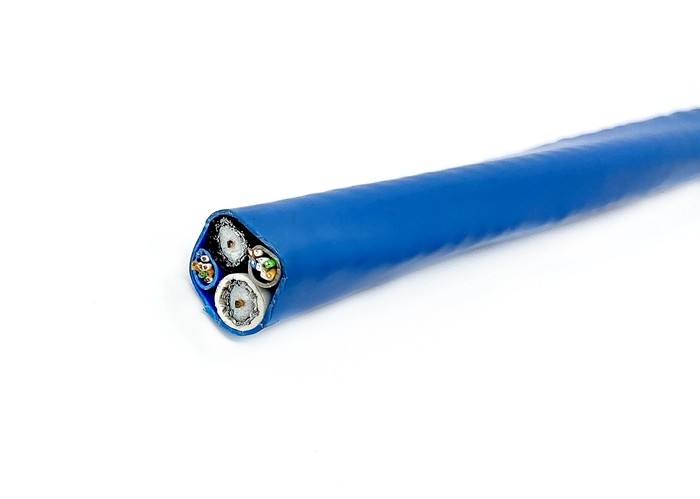

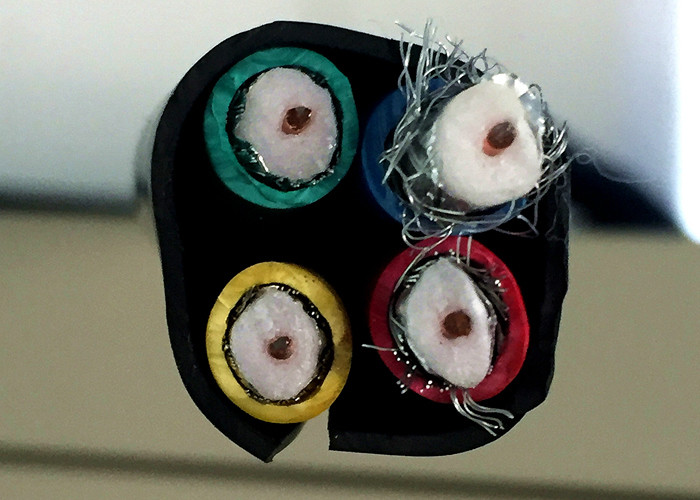

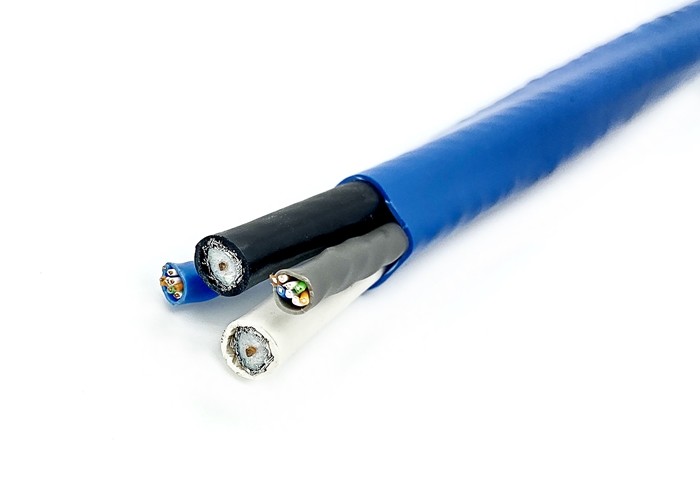

RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV 0RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV 1RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV 2

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.



If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
