Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CPR |
| Model Number: | RG6 CATV Coaxial Cable |
| Minimum Order Quantity: | 10km |
| Price: | 7.0usd/ 100m |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Delivery Time: | 20days after deposit |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Condoctor: | 18 AWG CCS | Insulation: | Foam PE |
|---|---|---|---|
| Shield: | AL Foil+Braiding | Color: | Black Or Customizde |
| Packing: | 100M Coil/ 305M Wooden Drum | Usage: | CATV/ SATV |
| Jelly: | With Or Without | ||
| High Light: | 75 ohm video cable,satellite coax cable |
||

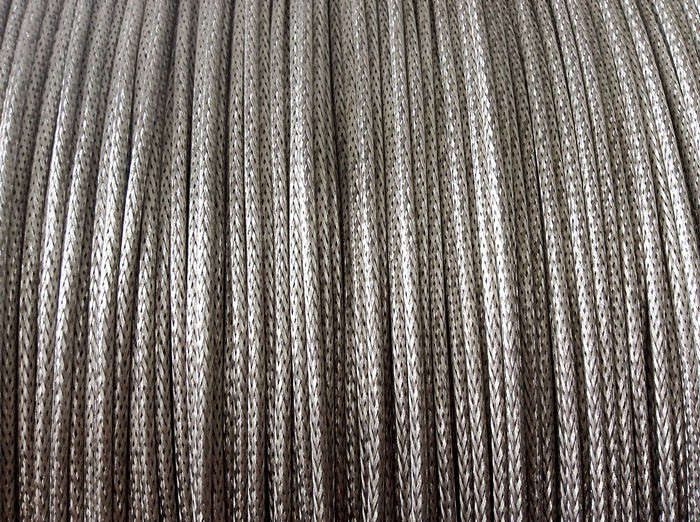

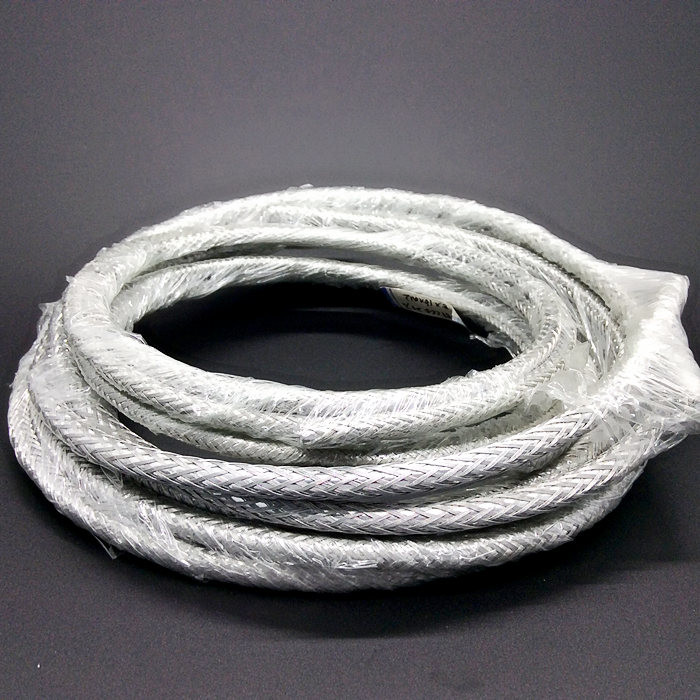

OEM coaxial cable and network cable semifinished without outer jacket. Such as RG59, RG6, RG7, RG11 and CAT5E/ CAT6 4Pairs Only have inner conductor, insulation and shield. Clients can make sheath in your locak factory. And packaging also can be customized, we can make it within wooden drum and pallet. Hope to work with you in the near future.
RG Series Coaxial cable
| Construction | Material | Diameter(mm) |
| Inner Conductor | CCS | 1.02 |
| Dielectric | Foam PE | 4.57 |
| First Shield | Bonded AL Foil | 18 |
| Second Shield | BC Braid | 80% |
| Outer Jacket | PVC | WITHOUT |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.6 | 1.9 |
| 55 | 1.6 | 5.2 |
| 187 | 2.8 | 9.3 |
| 211 | 3.0 | 10.0 |
| 400 | 4.1 | 13.5 |
| 500 | 4.6 | 15.0 |
| 750 | 5.6 | 18.5 |
| 860 | 6.1 | 20.0 |
| 1000 | 6.6 | 21.5 |
| 1500 | 8.2 | 26.8 |
| 1800 | 8.8 | 28.9 |
| 2200 | 9.8 | 32.2 |
| 3000 | 11.5 | 37.6 |
| RG Series Coax | Chinese Standard Coax |
| RG59 | SYWV-75-4 |
| RG6 | SYWV-75-5,SYFV-75-5 |
| RG11 | SYWV-75-7,SYFV-75-7 |
| RG58 | SYV-50-3 |
| RG142 | SFF-50-3-52 |
| RG174 | SYV-50-2-1 |
| RG178 | SFF-50-1 |
| RG179 | SFF-75-1.5-1 |
| RG213 | SYV-50-7 |
| RG303 | SFF-50-3-51 |
| RG304 | SFF-50-5-51 |
| RG316 | SFF-50-2-51 |
| RG393 | SFF-50-7-2 |
| RG400 | SFF-50-3-53 |

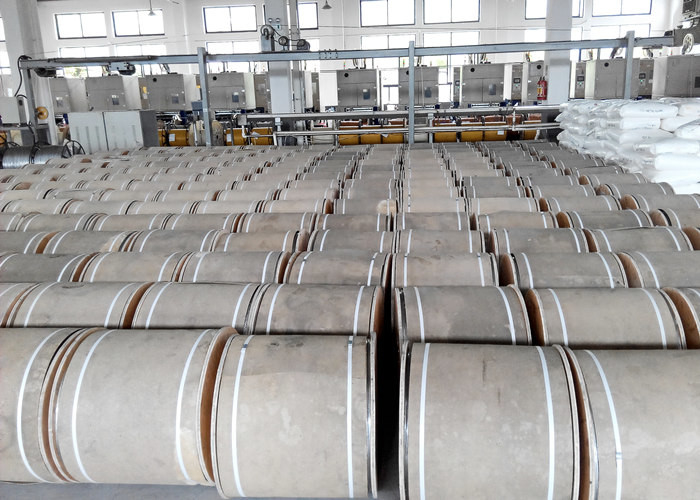

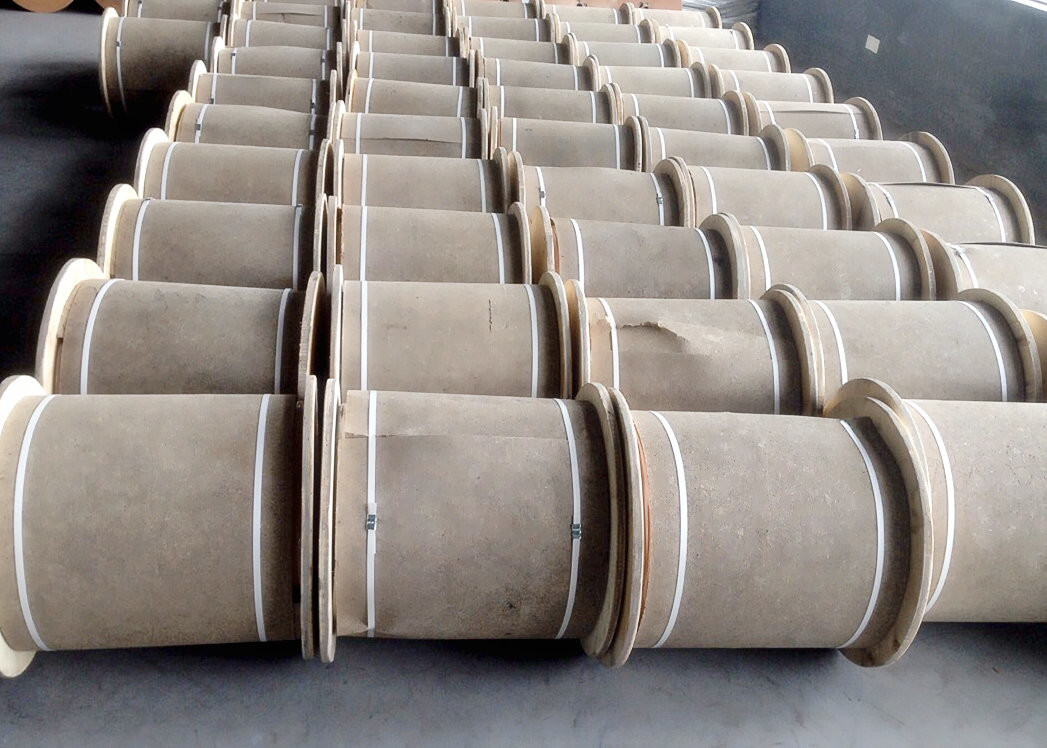

RG6 Coaxial Cable 305M/1000M Wooden drum Packing

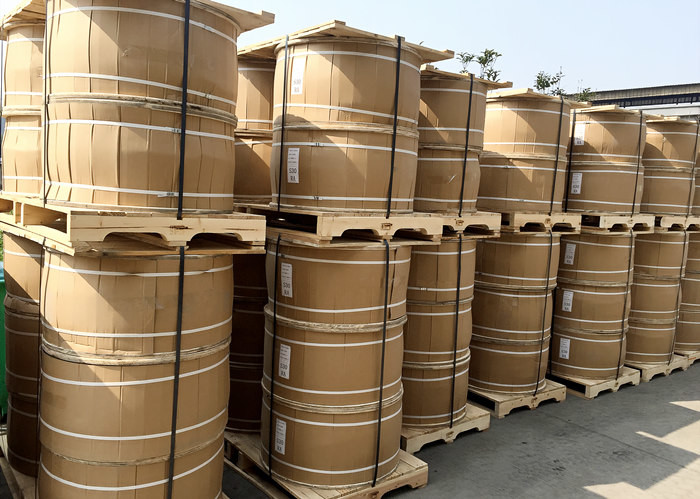

Finished Cables Loading the Container and Delivery to Port
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
