Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CPR

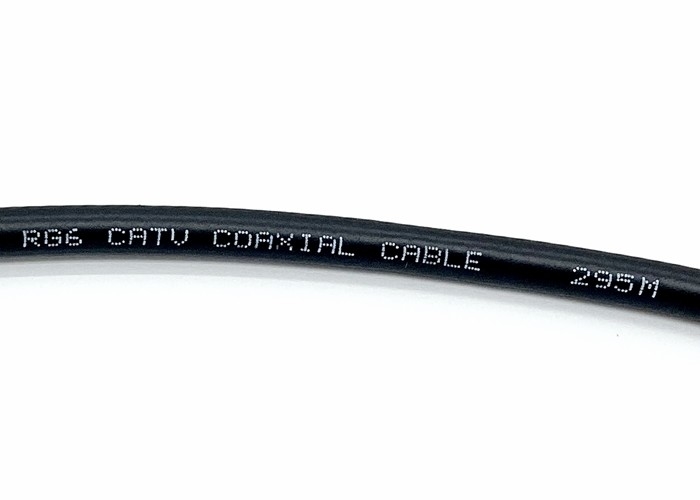

Model Number: RG6 CATV Coaxial Cable
Payment & Shipping Terms
Minimum Order Quantity: 10km
Price: 7.0usd/ 100m
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Condoctor: |
18 AWG CCS |
Insulation: |
Foam PE |
Shield: |
AL Foil+Braiding |
Color: |
Black Or Customizde |
Packing: |
100M Coil/ 305M Wooden Drum |
Usage: |
CATV/ SATV |
Jelly: |
With Or Without |
Condoctor: |
18 AWG CCS |
Insulation: |
Foam PE |
Shield: |
AL Foil+Braiding |
Color: |
Black Or Customizde |
Packing: |
100M Coil/ 305M Wooden Drum |
Usage: |
CATV/ SATV |
Jelly: |
With Or Without |

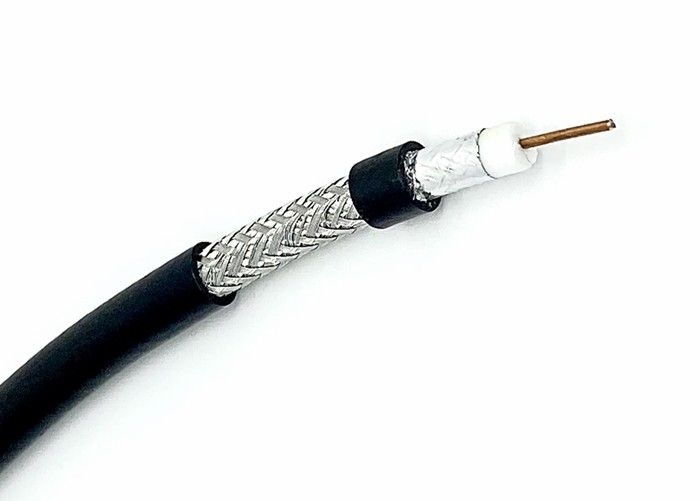

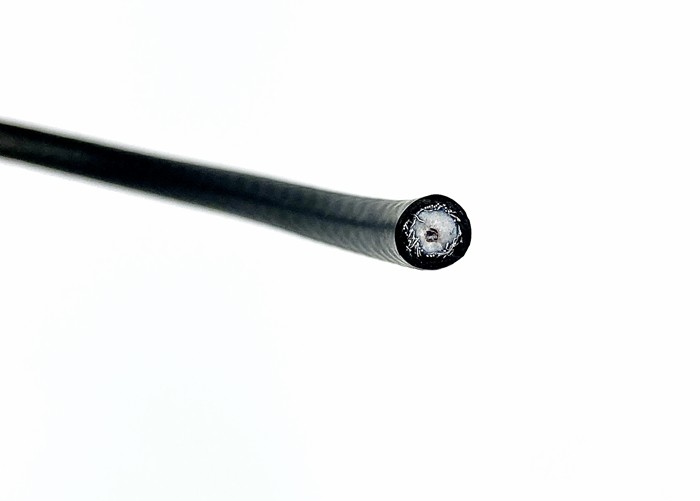

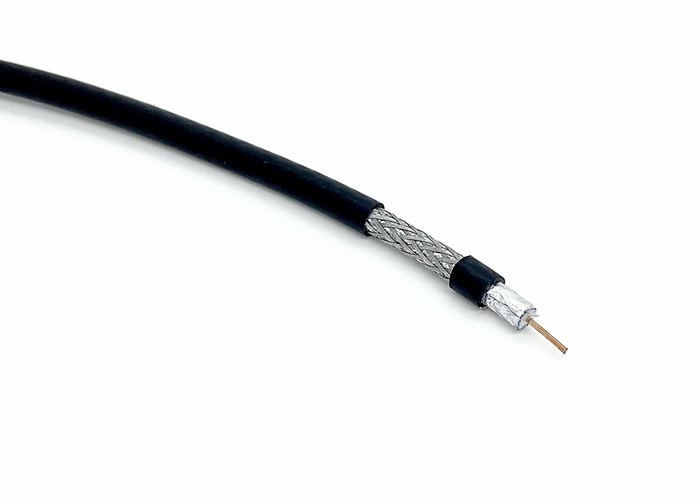

RG Series Coaxial cable
| Construction | Material | Diameter(mm) |
| Inner Conductor | CCS | 1.02 |
| Dielectric | Foam PE | 4.57 |
| First Shield | Bonded AL Foil | 18 |
| Second Shield | BC Braid | 80% |
| Outer Jacket | PVC | 6.91 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.6 | 1.9 |
| 55 | 1.6 | 5.2 |
| 187 | 2.8 | 9.3 |
| 211 | 3.0 | 10.0 |
| 400 | 4.1 | 13.5 |
| 500 | 4.6 | 15.0 |
| 750 | 5.6 | 18.5 |
| 860 | 6.1 | 20.0 |
| 1000 | 6.6 | 21.5 |
| 1500 | 8.2 | 26.8 |
| 1800 | 8.8 | 28.9 |
| 2200 | 9.8 | 32.2 |
| 3000 | 11.5 | 37.6 |
Model and standard control
| RG Series Coax | Chinese Standard Coax |
| RG59 | SYWV-75-4 |
| RG6 | SYWV-75-5,SYFV-75-5 |
| RG11 | SYWV-75-7,SYFV-75-7 |
| RG58 | SYV-50-3 |
| RG142 | SFF-50-3-52 |
| RG174 | SYV-50-2-1 |
| RG178 | SFF-50-1 |
| RG179 | SFF-75-1.5-1 |
| RG213 | SYV-50-7 |
| RG303 | SFF-50-3-51 |
| RG304 | SFF-50-5-51 |
| RG316 | SFF-50-2-51 |
| RG393 | SFF-50-7-2 |
| RG400 | SFF-50-3-53 |
RG6 Coaxial Cable 305M/1000M Wooden drum Packing
Finished Cables Loading the Container and Delivery to Port
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
