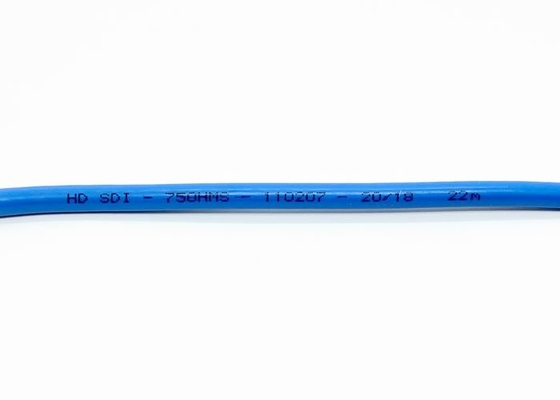

Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CPR. CE. ROHS |
| Model Number: | VHDX70S |
| Minimum Order Quantity: | 10km |
| Price: | FOB Shanghai Price: 11.0 USD/100m |

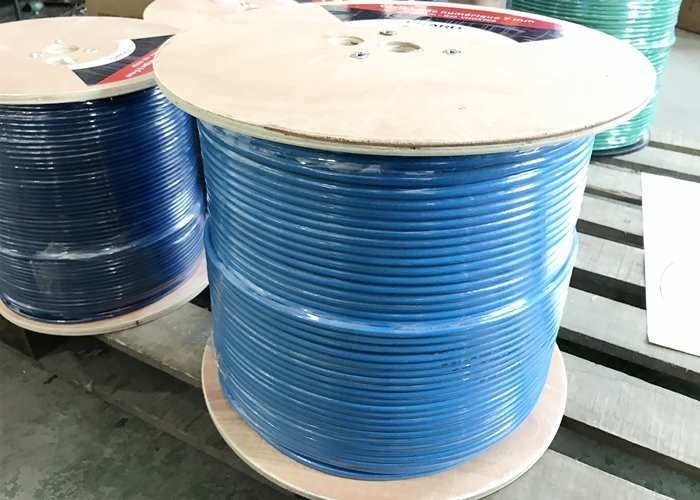

| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Delivery Time: | 20days after deposit |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Conductor: | 1.1Annealed Copper | Braiding: | 128*0.12TC |
|---|---|---|---|
| Color: | Blue RAL 5015 | Application: | CCTV, CATV |
| Length: | 500m | Packing: | Wooden Drum |
| Fire Resistant: | C2 CM | ||
| High Light: | RG6 75 Ohm Video Cable,VHDX70S 75 Ohm Video Cable,1.1 annealed copper rg6 coax cable |
||

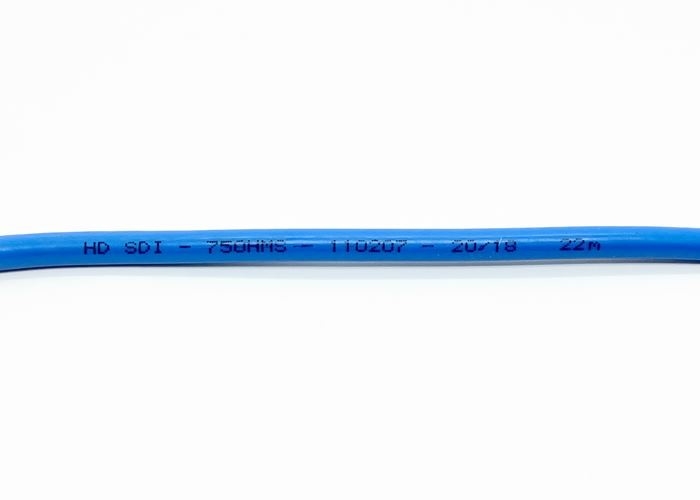

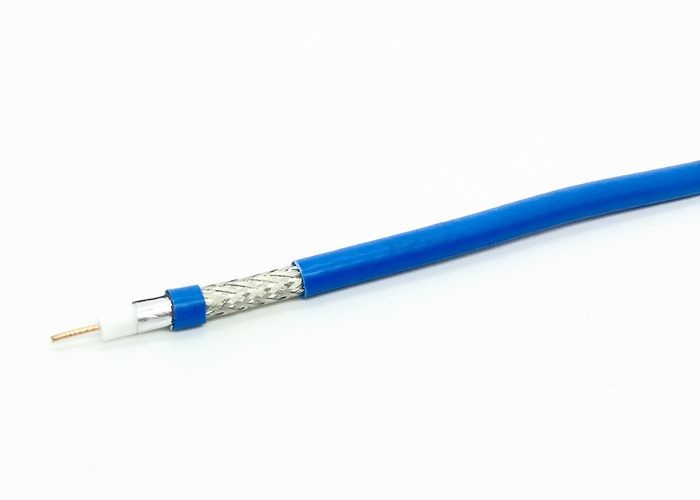

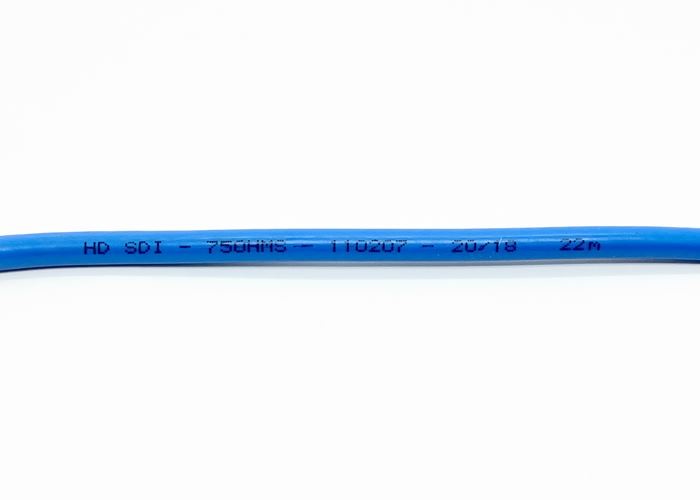

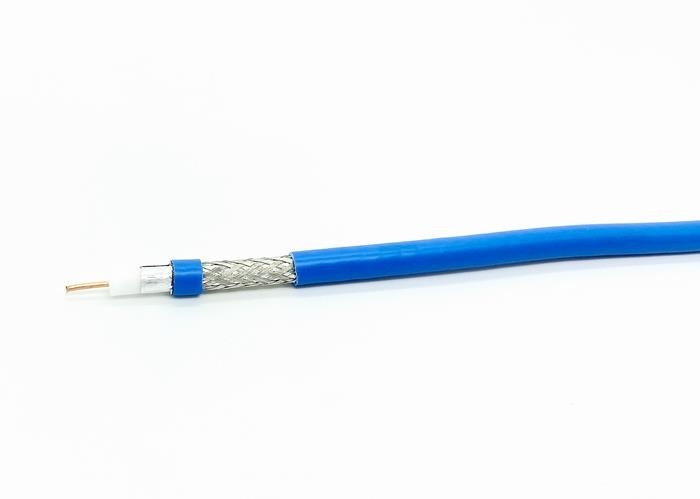

| Construction | Material | Diameter(mm) |
| Inner Conductor | Annealed Copper |
Ø 1.1 ± 0.005
|
| Dielectric | Foam PE/
Cellular PE Physical
|
Ø 4.9 ± 0.10
|
| First Shield | Bonded AL Foil | 14 |
| Second Shield | TC Braid |
78%
16 x (8 x Ø 0.12 mm)
|
| Outer Jacket |
PVC – Fire retardant C2
|
Ø 6.95 ± 0.15
|
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 58±2 |
| DC Resistance Inner Conductor |
21.1 Ω/km
|
| DC Resistance Outer Conductor |
12.8 Ω/km
|
| Velocity of Propagation(﹪) | 85.0 |
|
Return Loss 5-1000MHz(dB) |
≥23 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Max Attenuation (dB/100m) |
| 5 | 1.5 |
| 50 | 4.6 |
| 100 | 6.5 |
| 200 | 9.2 |
| 400 | 13.0 |
| 800 | 18.7 |
| 1000 | 21.5 |
| 1350 | 25.1 |
| 2150 | 32.1 |
| 3000 | 39.1 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
