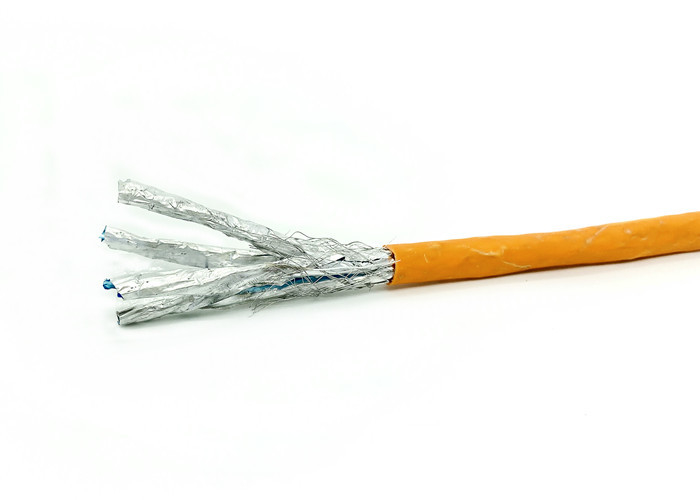

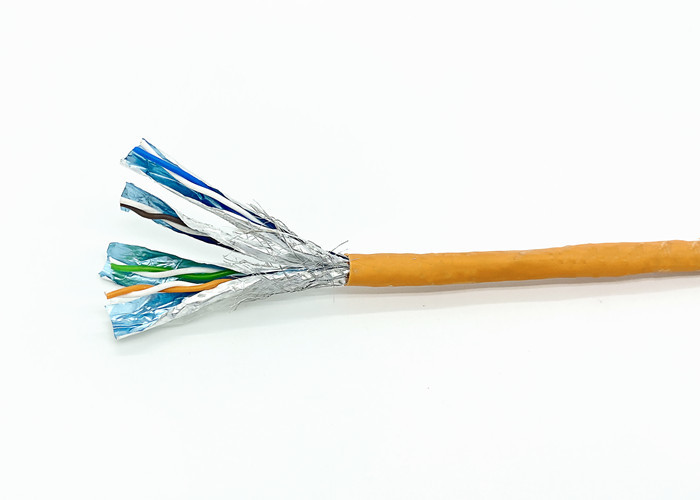

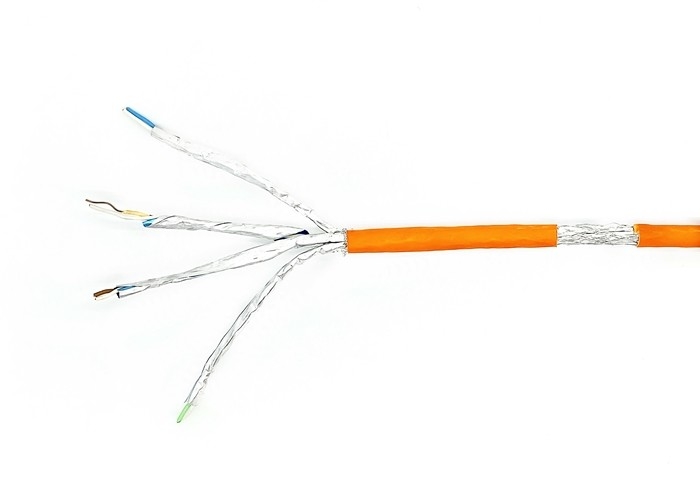

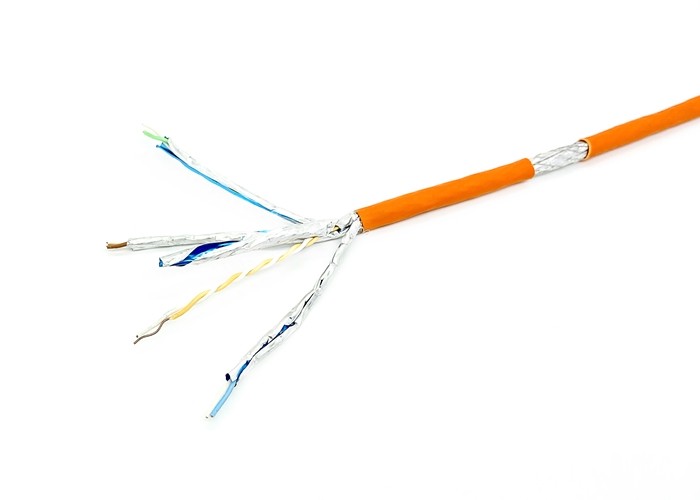

S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S

S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S
S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S
Basic Information
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CPR. CE. ROHS2.0
Model Number: CAT6A Lan Cable
Minimum Order Quantity: 10km
Price: FOB Shanghai Price: 75.00 USD/305m
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Get Best Price Contact Now
Type: SFTP Cat.6A First Shield: AL Foil
Insulation: HDPE Green,Brown, Yellow, Blue Braiding: 96*0.12AL-MG ALLOY WIRE Braiding
Jacket: PVC/ LSZH Length: 1000Ft/ 305M Or As Require
Application: Networking, PC Computer, Data Transfer OEM: Available
High Light:

cat6 internet cable

,

outdoor ethernet cable cat6

S/FTP Cat6A AL Foil Shielde each Pair 500MHz 10Gbit/s Network Cable

Network Cable S/FTP CAT6A



Product Structure

Conductor: Solid or stranded bare copper

S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S 0

Insulation material: PE Foam



Jacket material:PVC or LSZH



Production Description:

Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor ,RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA- 568B&ISO/ IEC 11801, yd/t1019-2001, ISO/IEC 11801, ANSI/ TIA/ EIA-568B.

Ethernet 10Base-T, 100Base,100Base-T4,1000Base- T.



The effective bandwidth of data layer is 10Gbit/s, the maximum transmission distance is 100 meters.

Cross isolation structure and the thicker jacket effectrively avoid the crosstalk between each pair of the cable. Double shield structure, make the cable have stronger anti-interference ability to the outside world and transmit the signal in strictest confidence.



Application:

Mainly used in the wiring system between work area correspondence leading-out terminal and distribution wiring frames connection. As well as used in the housing synithesis wiring system between user correspondence leading out terminal and patch panel.



Describe 4*2*0.58MM &S/FTP CAT 6A 4P 1/0.58MM S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S 1
Standard YD/T 1019-2013；TIA/EIA-568.C
1. Conductor Material Bare Copper
Diameter 0.58±0.01mm
2. Insulation Material  Foam PE
Diameter 1.38±0.05mm
Color A. Blue, White B.Orange, White

Characteristics(100m):

MHz ATT NEXT PSNEXT
4.00 3.80 66.30 63.30
8.00 5.30 61.80 58.80
10.00 5.9 60.30 57.30
16.00 7.5 57.2 54.20
20.00 8.40 55.8 52.80
25.00 9.40 54.3 51.30
31.25 10.50 52.90 49.90
62.50 15.00 48.40 45.40
100.00 19.10 45.30 42.30
200.00 27.60 40.8 37.80
250.00 31.10 39.3 36.30
300 34.3 38.1 35.1
400 40.1 36.3 33.3
500 45.3 34.8 31.8



MHz ELFEXT PS ELFEXT RL
4.00 56.00 53.00 23.00
8.00 49.90 46.90 24.50
10.00 48.00 45.00 25.00
16.00 43.90 40.90 25.00
20.00 42.00 39.00 25.00
25.00 40.00 37.00 24.30
31.25 38.10 35.10 23.60
62.50 32.10 29.10 21.50
100.00 28.00 25.00 20.10
200.00 22.00 19.00 18.00
250.00 20.00 17.00 17.30
300 18.5 15.5 17.3
400 16.0 13.0 17.3
500 14.0 11.0 17.3


C.Green, White D. Brown, White
3. Cross NO
4.. Drain Wire Optional/TC Braid ; Yes/ AL MG Braid
5. AL Foil Shield Shielded each Pair
6. Braid Shield  16/5/0.115±0.01mm Coverage ≥40％
7. Rip Cord 500D Nylon Wire
8. Sheath Thickness 0.6±0.1mm
Outer Diameter 7.8±0.3mm
Surface Smooth
Material

PVC(RoHS)
Color RAL7037灰&RAL5012蓝
Print Meature Height 3.0±0.6mm;width2.0±0.3mm
Color Black
Spacing ≤±0.5%,1m
Packing Wooden Drum ,Pallet
Carton Meature 40*20*30cm
Length 305±1.5m
Phsical Characteristics

Short Term Tensile Load (MPa) ≥13.5

Elongation(%) ≥150
Aging Condition(℃×hrs)100℃×24h×7d

Long Term Tensile Load (MPa) ≥12.5

Elongation(%) ≥125
Bending Radius(-20±2℃×4h): 8xO.D.
Electric Characteristics(20℃)

4-100MHz, Impedence(Ω)100±15

100-250MHz,Impedence(Ω) 100±22

250-500MHZ Impedence (Ω) 100±30
4-500MHz, Delay 20℃(ns/100m)≤45
DC Resistance/ Unbalance 20℃(Ω/100m) Max 9.38

network cable data transfer Level



Standard

(Name)



 Maximum Bandwidth

Maximum

Distance

 Maximum Data Rate Notes
Categary 5e 100MHz 100Meters 1Gbps



Still commonly used


Category 6 250MHz 100Meters 1Gbps,10Gbps(limited distance) Used in new buildings
Category 6a 500MHz 100Meters 10Gbps



Data centres and commercial


Category 7 600MHz   10Gbps



Fully shielded components. Non modular connectors


Category 7a 1000MHz   10Gbps



fully shielded solution


Category 8 1600-2000MHz   40Gbps



in development

S/FTP AL Foil Shielde Bulk CAT6A Ethernet Cable Each Pair 500MHz 10G Bit / S 2



If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.



If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
