Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE. ROHS.
Model Number: Coaxial Connector
Payment & Shipping Terms
Minimum Order Quantity: 30KM
Price: 0.3usd/pcs
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Material: |
Zinc Alloy |
Type: |
RG59 |
Useful: |
CCTV |
Pin: |
Golden Plated |
Material: |
Zinc Alloy |
Type: |
RG59 |
Useful: |
CCTV |
Pin: |
Golden Plated |

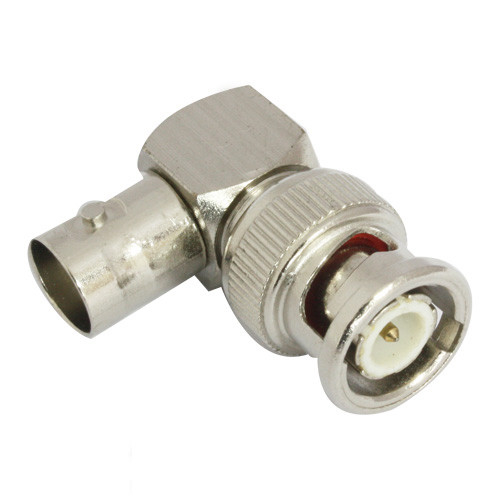

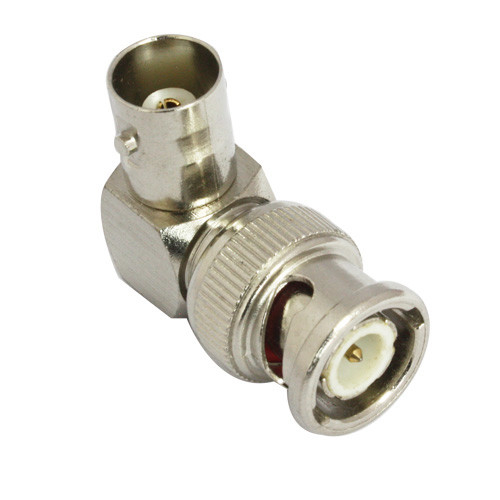

Right Angle BNC Male to BNC Female Splitter / BNC Male to BNC Female Connector
BNC Male to BNC Double Female Splitter
BNC Male to Two BNC Female Connector
Male to Female RF Connectors
T Type One Male to Two Female
Material:
Body—zinc alloy, nickel plated
Center pin—copper, gold plated
Net Weight: 18g/piece
Temperature range: - 40~ +155
Insulation resistance: ≥5000MΩ
Character impedance: 50Ω
Frequency range: 0~3GHZ
Disengage force: ≥0.6N
Contact resistance: center conductor≤1.5mΩ; outer conductor≤1mΩ
Durability: ≥ 500
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable.
It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut.
BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.
