Place of Origin: | Hangzhou, China |
---|---|
Brand Name: | OEM Produce |
Certification: | CPR. CE. ROHS. |
Model Number: | RG59+2C |
Minimum Order Quantity: | 10km |
Price: | FOB Shanghai Price: 33.0USD/305m |
Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
Delivery Time: | 20days after deposit |
Payment Terms: | TT. LC |
Supply Ability: | 5000km/ Month |
Conductor: | 21AWG Bare Copper | Application: | Monitor Signal Transmission |
---|---|---|---|
Braiding: | CCA 90% | Color: | Black Or White |
Fegure: | 8 Figure Shotgun | Other Name: | RG59P Siamese Cable |
OEM: | Available | ||
High Light: | siamese video cable,siamese cable for security cameras |

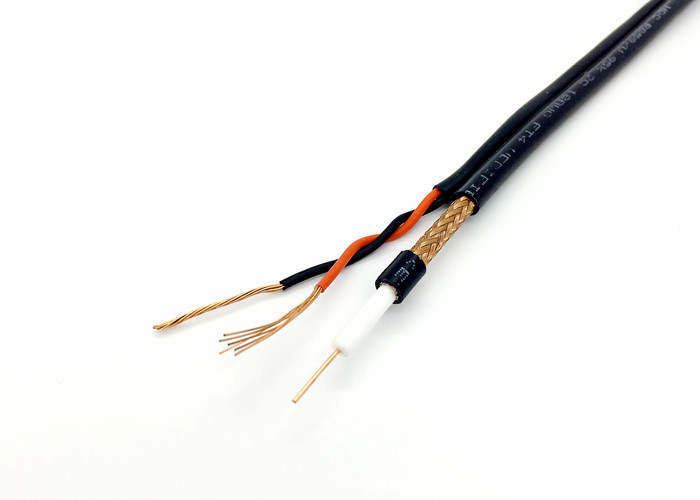

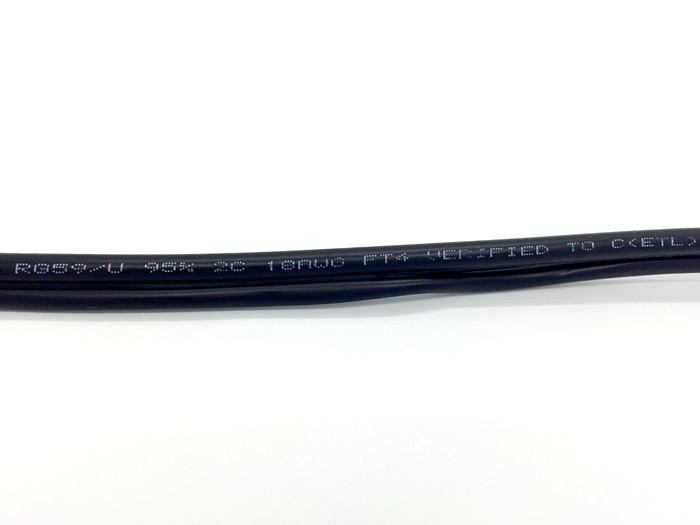

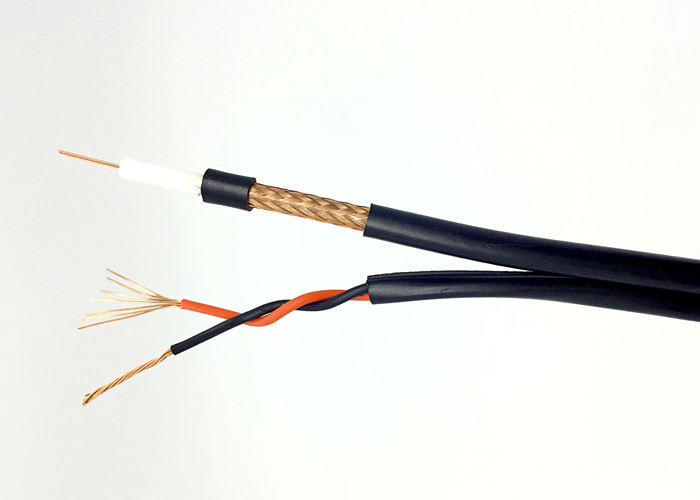

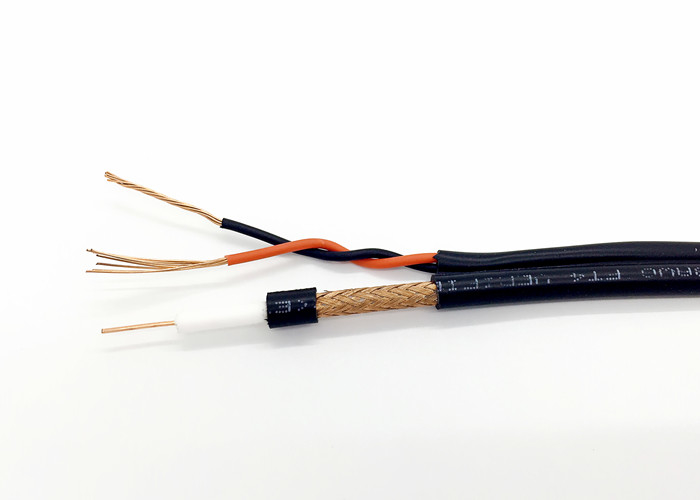

RG59+2DC Coaxial with Power CCTV Cable for Monitor Signal Transmission China Factory
0.81mm BC+3.66mm FPE+16x8x0.12mm CCA +6.0mm PVC+18AWG(24*0.2/7*0.39) CCA Power Wire +9.5PVC Black
Packing: 305m/Roll
Note:
RG59+2DC Coaxial with Power CCTV Cable is Type of coaxial cable with 0.75mm² DC power wire can be used for CCTV monitor security system. Both have video part and DC power part. Please check our details below carefully.
Coaxial part with 0.81BC inner conductoris, and power part use Flexible Stranded CCA material, can have a not high price to customers and be good accepted by global market. We will use all new PVC and PE as Jacket to make cable strong enough.
These material can make cables have a indoor working life more than 8 years. And can transfer video to 500 meter. Can guarantee video clear and not affected by environment.
As a responsible OEM manufacture, welcome to tell us what type and specs you need. Surely we can produce according to your requirements.
Details:
Construction | Material | Diameter(mm) |
Inner Conductor | BC | 0.81 |
Dielectric | Foam PE | 3.66 |
First Shield | Bonded AL Foil | without |
Second Shield | CCA Braid | 90% |
Outer Jacket | PVC WHITE | 6.1 |
Power Wire Conductor | CCA | 18AWG |
Power Wire Insulation | PVC | 1.9 |
Electrical Characteristics
Impedance (Ω) | 75±3 |
Capacitance (pF/m) | 52±2 |
Velocity of Propagation(﹪) | 85.0 |
Sparker Test | 4000 |
Return Loss 5-1000MHz(dB) |
≥22 |
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.9 | 2.8 |
55 | 2.1 | 6.7 |
187 | 3.6 | 11.8 |
211 | 3.8 | 12.5 |
400 | 5.1 | 16.7 |
500 | 5.7 | 18.7 |
750 | 7.0 | 22.8 |
860 | 7.5 | 24.6 |
1000 | 8.0 | 26.3 |
1500 | 9.9 | 32.5 |
1800 | 10.9 | 35.6 |
2200 | 12.6 | 41.2 |
Finished Cables Wooden drum and Pallet Packing
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
