Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CPR |
| Model Number: | RG59+2C |
| Minimum Order Quantity: | 10km |
| Price: | FOB Shanghai Price: 75.0USD/500m |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Delivery Time: | 20days after deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000km/ Month |
| Inner Connector: | 0.5BC | Insulation: | Foam PE |
|---|---|---|---|
| Jacket: | 9.0PE | Color: | Black |
| Application: | CCTV Camera Surveilance System | Type: | RG59P CCTV Cable |
| Biarding: | 80*0.12CCA | DC Power: | 2Cores*7*0.39CCA |
| Connector: | BNC And DC | ||
| High Light: | siamese cable for cctv,siamese cable for security cameras |
||

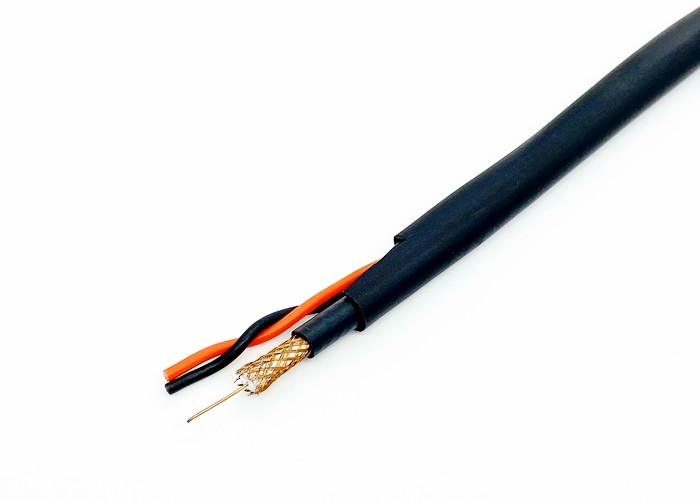

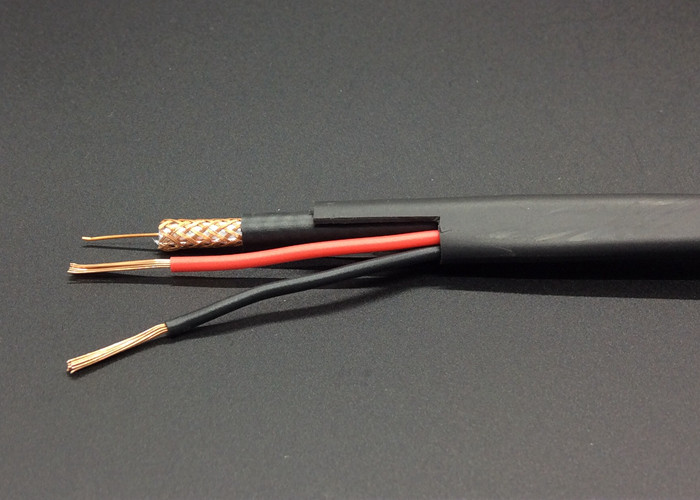

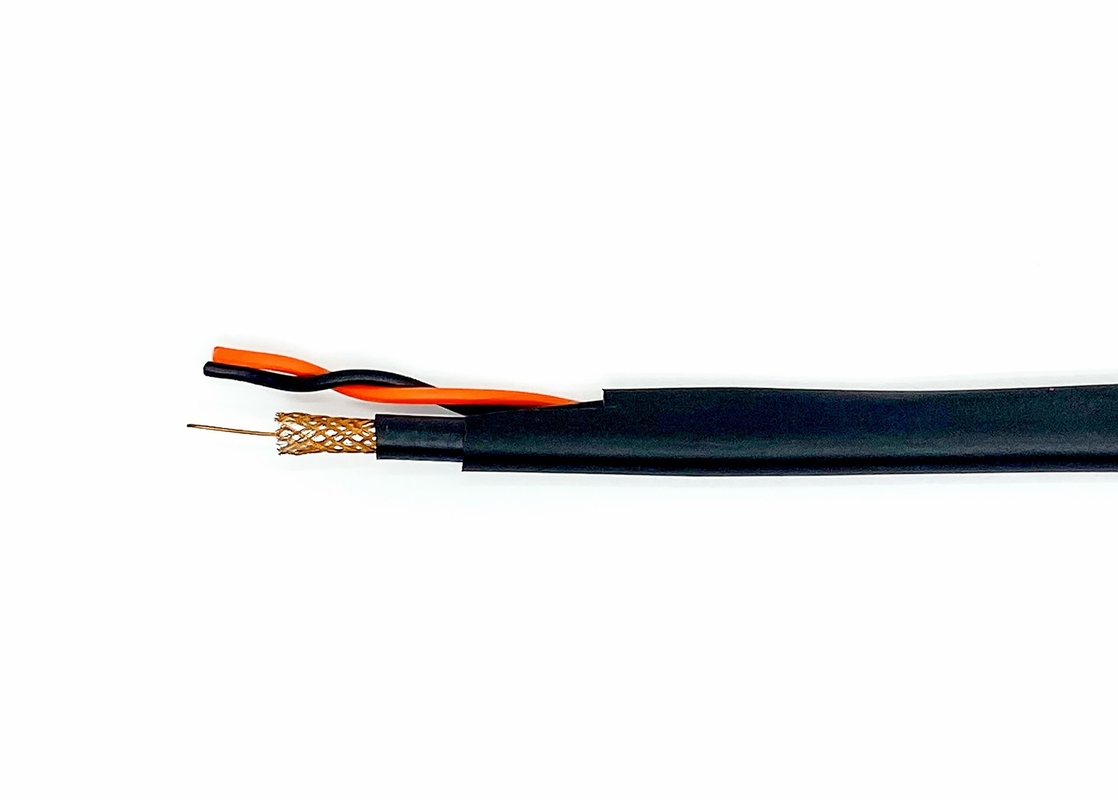

RG59+2C Outdoor CCTV Cable for Monitor Project
0.5mm BC+3.66mm FPE+16x5x0.12mm CCA +6.0mm PVC+18AWG(24*0.2/7*0.39) CCA Power Wire +9.5PVC Black
--Length: 100m/ 200m/ 300m/ 500m; Packing: Coil without a drum/ Paper Reel/ Plastic Reel/ Wooden Drum
--Cable marked Footage/ Meters
This is Type of coaxial cable with DC power wire can be used for CCTV security system. Both have video part and DC power part. Please check our details below carefully.
Coaxial part with 0.5BC inner conductoris, and power part use CCA material, can have a not high price to customers and be good accepted by global market. We will use all new PVC and PE as Jacket to make cable strong enough.
These material can make cables have a indoor working life more than 8 years. And can transfer video to 500 meter. Can guarantee video clear and not affected by environment.
As a responsible OEM manufacture, welcome to tell us what type and specs you need. Surely we can produce according to your requirements.
Advanced Features:
Presented below are key features of RG Series which are widely represented in different versions within this catalogue.
All of these products have some common features including:
--Closed cell Foamed PE Dielectric
--Attenuation Swept from 5MHz-2GHz
--High screening effectiveness, also know as Class A+/ Class A++ Screen Attenuation(AS) according to EN50117 SPECIFICATIONS
--Long-lasting stability of signal attenuation thanks to physical gas injected foam PE dielectric technology(skin-foam-skin)
-- Coaxial With Power CCTV Cable with PVC Jacket, flexible thermo-plastic material commonly used on general purpose coaxial products. Temprature rating:-40℃ to 80℃
Cavle Construction
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC 0.5 | |
| Dielectric | Solid PE | 3.7 |
| First Shield | Bonded AL Foil | 18 |
| Second Shield | AL Braid | 90% |
| Inner Jacket | PVC | 6.0; |
| Outer Jacket | PE | 9.0 |
| Power Wire | CCA | 0.2 |
| Power Wire Insulation | PE | 1.8 |
Kx6+2Alim Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
| Return Loss 5-1000MHz(dB) | ≥22 |
| Return Loss 1000-3000MHz(dB) | ≥20 |
Kx6+2Alim Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.6 | 1.9 |
| 55 | 1.6 | 5.2 |
| 187 | 2.8 | 9.3 |
| 211 | 3.0 | 10.0 |
| 400 | 4.1 | 13.5 |
| 500 | 4.6 | 15.0 |
| 750 | 5.6 | 18.5 |
| 860 | 6.1 | 20.0 |
| 1000 | 6.6 | 21.5 |
| 1500 | 8.2 | 26.8 |
| 1800 | 8.8 | 28.9 |
| 2200 | 9.8 | 32.2 |
| 3000 | 11.5 | 37.6 |
How to choose the right coaxial Cable－Material
1 Inner Conductor
SC(Silver Copper)
TC(Tined Copper)
BC(Bare Copper) or called CU have a good electrical performance and flexibility
CCA(Copper clad Aluminum) very Light but could be easier oxidized(rusted)
CCS(Copper clad steel) Cheap(price only 1/5 of BC) and not bad electrical performance
the cost is Silver copper>tinned copper>bare copper>Copper clad aluminum>Copper clad steel
2 Insulation
Solid PE/Foam PE/ Gas Injection PE
Currently there is two type of PE in the market for the Drop Cables,
Local PE(Chinese Manufacture)
Imported PE( DOW chemical..)
The main difference of the two type, is that Local PE is not pass the Oxidative induction time(OIT) Test, and the Crush resistant Test, which may required by the CATV company, but general the electrical performance is the same.
The price difference of the material is about 23%...
3 Foil Screen
Normally it is in three type
AL or copper foil not bonded to the insulation ---AP
AL or copper foil bonded to the insulation- Bonded Al/Pet(blue)- BAP(the most widely used)
AL/PET/AL foil bonded to the insulation- Bonded Al/Pet/AL- BAPA
I have meet some customer that want a copper color Al foil(some clients called golden foil), which is the same color of the copper foil, but it is Al foil. WOW--a lot lot cheaper,, scratch on the foil, you will see or burn it.
One more thing is the overlap of the foil, >2mm or >20%, you need to know from your supplier
4 Braiding
For the braiding wire, there is:
BC Copper wire,
TC Tinned copper wire,
SC Silvered copper wire,
CCA Copper clad Aluminum wire, looks like BC but could be easier oxidized(rusted)
AL Magnesium Aluminum Wire, (the most widely used)
the cost is Silver copper wire>tinned copper wire>copper wire>Copper clad aluminum wire> Aluminum wire
With a knife or lighter you can tell the difference
Another difference of the cost, is the braiding coverage, form 30%-95%, normally in the market is 48%, 60%, 77%, for the digital cable, is over 90%.
5 Jacket
The requirement for PVC included
1 Tensile strength before aging
2 Elongation before aging
3 Tensile strength after aging
4 Elongation after aging
5 Shrinkage
6 Heat shock
7 Cold bend
8 Cold Impact
9 UV Resistant
10 Fire resistant( include different grade, for north american market, there is CMX,CM,CMR/Riser,CMP/ Plenum, for European, it is IEC60332-1, IEC 60332-3, IEC60332-3C)
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
