Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE. ROHS.
Model Number: Coaxial Connector
Payment & Shipping Terms
Minimum Order Quantity: 30KM
Price: 0.3usd/pcs
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Material: |
Zinc Alloy |
Type: |
RG59 |
Useful: |
CCTV |
Pin: |
Golden Plated |
Material: |
Zinc Alloy |
Type: |
RG59 |
Useful: |
CCTV |
Pin: |
Golden Plated |
Product Details: Male CCTV BNC Connector for Rg59 , Coaxial Cable BNC Connector,
Male CCTV BNC Connector for Rg59 , Coaxial Cable BNC Connector
Description:

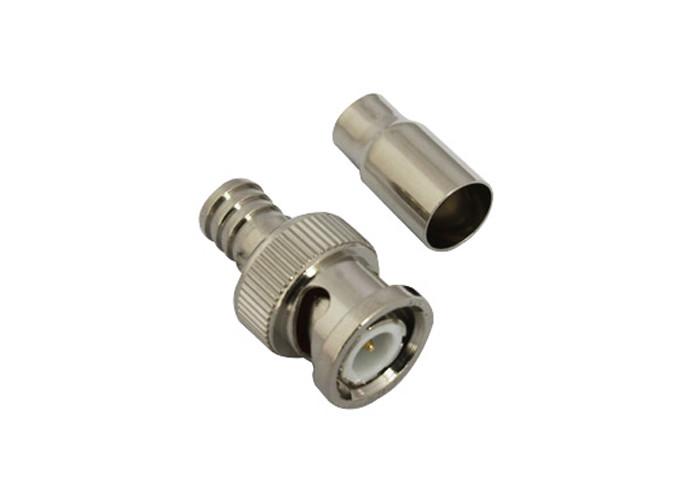

BNC connector: Two-piece BNC male crimp-style for RG-59
Captive center-pin design
Two-step ferrule with strain relief crimp
Material:
Body--zinc alloy, nickel plated
Ring—copper, nickel plated
Center pin—copper, gold plated
Net Weight: 8g/piece
Features:
Temperature range: - 40~ +155
Insulation resistance: ≥5000MΩ
Character impedance: 50Ω
Frequency range: 0~3GHZ
Disengage force: ≥0.6N
Contact resistance: center conductor≤1.5mΩ; outer conductor≤1mΩ
Durability: ≥ 500
Application:
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable.
It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs
are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.
