Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE. ROHS.
Model Number: RG59+2C CCTV Coaxial Cable
Payment & Shipping Terms
Minimum Order Quantity: 10km
Price: FOB Shanghai Price: 50USD/200m
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Useful: |
CCTV Video And Power |
Jacket Color: |
Black PE |
Spec: |
Customized |
Useful: |
CCTV Video And Power |
Jacket Color: |
Black PE |
Spec: |
Customized |

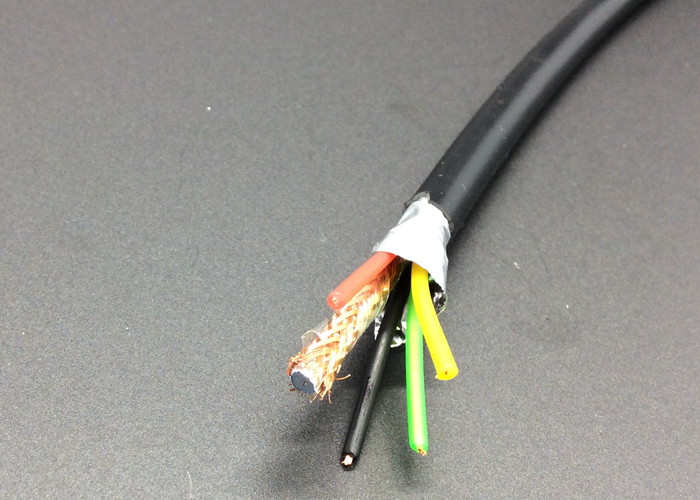

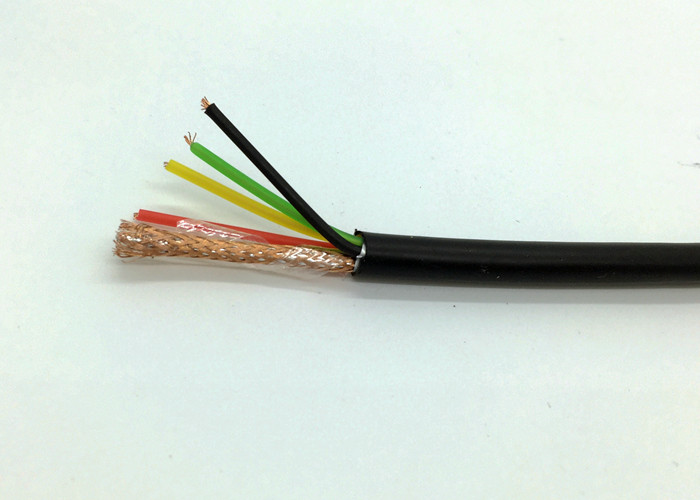

RG59 Siamese CCTV Coaxial cable
0.5mm Cu+3.5mm FPE+AL Foil+16x3x0.12mm CCA+5.6mm+2*(24*0.2mmCCA+2.0PVC)+5.4PVC Black or White, Packing: 200m/100m coil or 500m/wooden drum
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC | 0.5 |
| Dielectric | Foam PE | 3.5 |
| First Shield | AL Foil | 14# |
| Second Shield | CCA Braid | 46.6% |
| RG59 Outer Jacket | PVC WHITE | 5.6 |
| Power Wire Conductor | CCA | 18AWG |
| Power Wire Insulation | PVC | 2.0 |
| Cable Jacket | PVC | 9.5 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
| Sparker Test | 4000 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.9 | 2.8 |
| 55 | 2.1 | 6.7 |
| 187 | 3.6 | 11.8 |
| 211 | 3.8 | 12.5 |
| 400 | 5.1 | 16.7 |
| 500 | 5.7 | 18.7 |
| 750 | 7.0 | 22.8 |
| 860 | 7.5 | 24.6 |
| 1000 | 8.0 | 26.3 |
| 1500 | 9.9 | 32.5 |
| 1800 | 10.9 | 35.6 |
| 2200 | 12.6 | 41.2 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
