Kx6+2C Coax Bulk CCTV Cable Customized Color For Camera Installation 8 Fig

Product Details

Place of Origin: Hangzhou, China

Brand Name: OEM Produce

Certification: CPR

Model Number: KX6+2C

Payment & Shipping Terms

Minimum Order Quantity: 10km

Price: FOB Shanghai Price: 70.0USD/500m

Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel

Delivery Time: 20days after deposit

Payment Terms: L/C, T/T

Supply Ability: 5000km/ Month

Get Best Price
High Light:

bulk network cable

,

cctv camera cable

Inner Connector:
7*0.2BC
Jacket:
6.0; 5.0PVC
Color:
Green Or Customized
Application:
Video Wire For Camera
Type:
Kx6+2C Siamese CCTV Cable
Biarding:
128*0.12CCA
DC Power:
2Cores*7*0.39CCA
Connector:
BNC And DC
Cross Shape:
8 Figure
Inner Connector:
7*0.2BC
Jacket:
6.0; 5.0PVC
Color:
Green Or Customized
Application:
Video Wire For Camera
Type:
Kx6+2C Siamese CCTV Cable
Biarding:
128*0.12CCA
DC Power:
2Cores*7*0.39CCA
Connector:
BNC And DC
Cross Shape:
8 Figure
Kx6+2C Coax Bulk CCTV Cable Customized Color For Camera Installation 8 Fig

Type: Kx6+2C coax and power complex Bulk CCTV Cable for camera installation 8fig

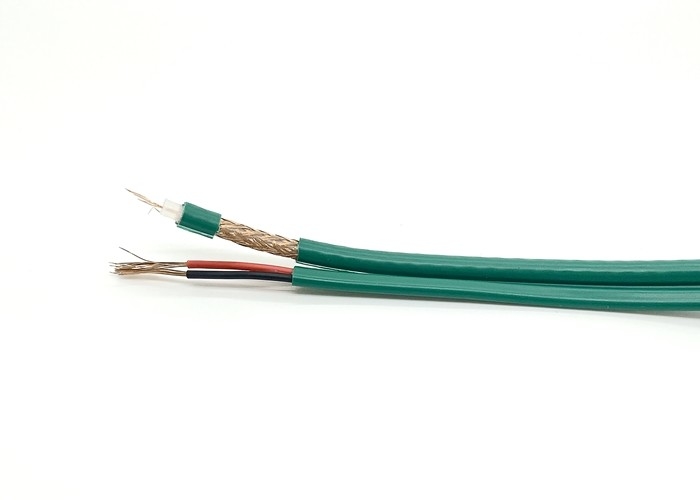

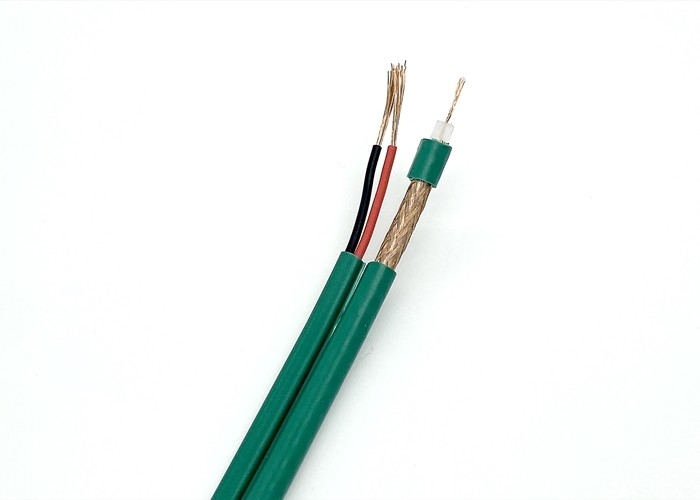

Spec: 7*0.2mm BC+3.7mm SPE+128*0.12mm CCA+6.0mm PVC + 2C*(7*0.39CCA+1.8PVC)+5.0PVC Green

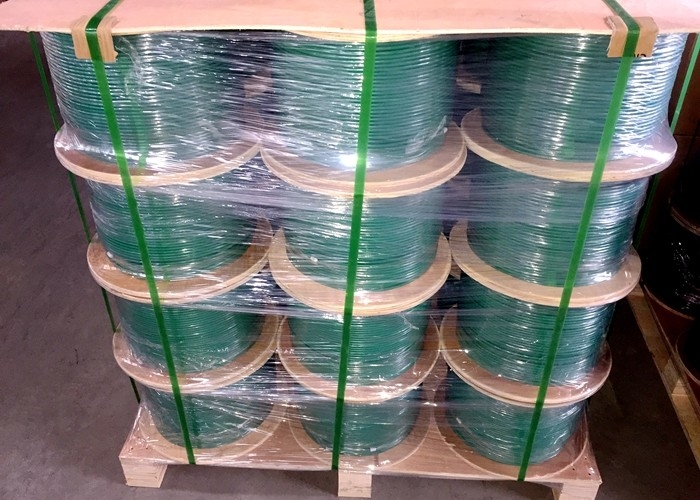

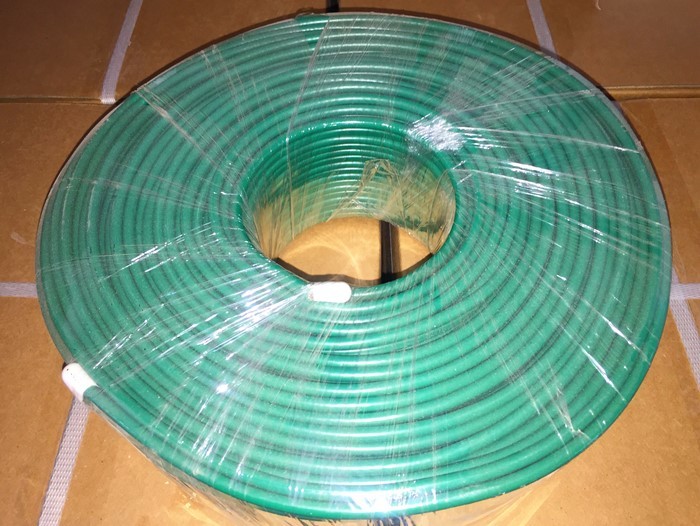

Length: 100m/ 200m/ 300m/ 500m; Packing: Coil without a drum/ Paper Reel/ Plastic Reel/ Wooden Drum



Kx6+2C 7*0.2 Coaxial cable

Kx6+2C Coaxial With Power CCTV Cable are generally used in video transmission and CCTV system. It can be easily wired for camera installation.



Advanced Features:

Presented below are key features of RG Series which are widely represented in different versions within this catalogue.

All of these products have some common features including:

-- Closed cell Foamed PE Dielectric

-- Attenuation Swept from 5MHz-2GHz

-- High screening effectiveness, also know as Class A+/ Class A++ Screen Attenuation(AS) according to EN50117 SPECIFICATIONS

-- Long-lasting stability of signal attenuation thanks to physical gas injected foam PE dielectric technology(skin-foam-skin)

-- Coaxial With Power CCTV Cable with PVC Jacket, flexible thermo-plastic material commonly used on general purpose coaxial products. Temprature rating:-40℃ to 80℃

-- Coaxial cables with PE outer sheath, strong enough to protect the coaxial core from the environment, must be used for outdoor / underground/ direct burial installations. Temprature rating:-65℃ to 85℃

-- Characteristics of LSZH: flame and fire retartant, low smoke and fume emission, zero halogen and UV resistant

-- Series of Anti-corrosion protection materials are available

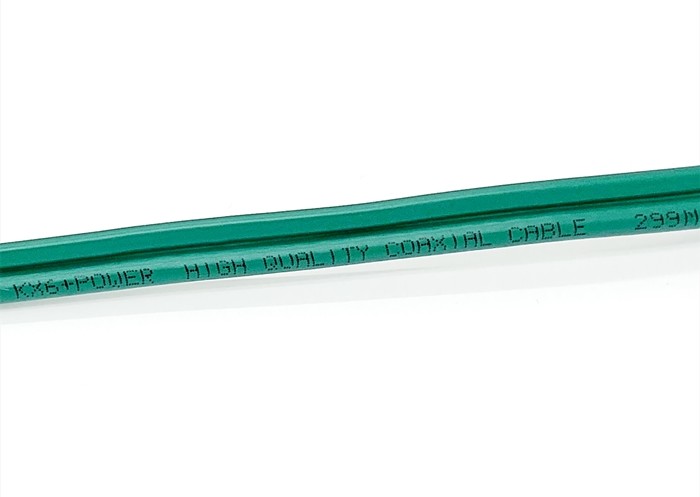

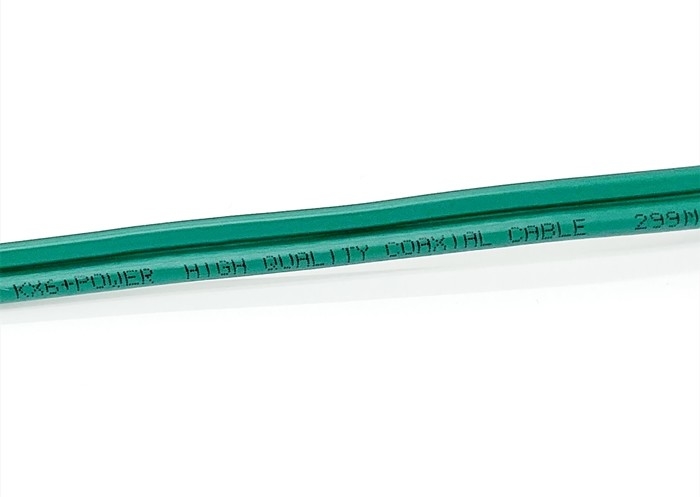

-- Cable marked Footage/ Meters



Kx6+2Alim Construction

Construction Material Diameter(mm)
Inner Conductor BC 7x0.2
Dielectric Solid PE 3.7
First Shield Bonded AL Foil 18
Second Shield AL Braid 90%
Outer Jacket PVC 6.0; 5.0
Power Wire CCA 0.2
Power Wire Insulation PE 1.8



Kx6+2Alim Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0
Return Loss 5-1000MHz(dB) ≥22
Return Loss 1000-3000MHz(dB)

≥20





Kx6+2Alim Attenuation(@20℃)

Frequency (MHZ) Min Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6


Kx6+2C Coax Bulk CCTV Cable Customized Color For Camera Installation 8 Fig 0

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.



If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
