GYXTY Steel Wire Armored Outdoor Fiber Optic Cable Tensile Resistant High Flexibility

Product Details

Place of Origin: Hangzhou, China

Brand Name: OEM Produce

Certification: CE/ ROHS

Model Number: GYXTY

Payment & Shipping Terms

Minimum Order Quantity: 10km

Price: 100-300usd

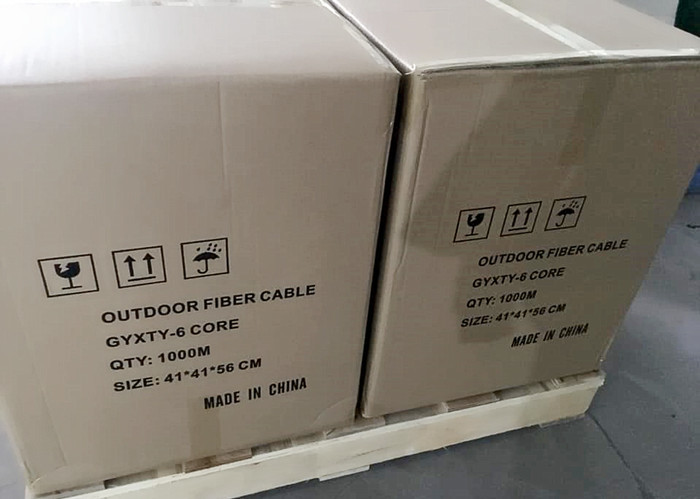

Packaging Details: 2000m/ wooden drum

Delivery Time: 15days

Supply Ability: 1000km/ month

Get Best Price
High Light:

outdoor fiber patch cable

,

aerial fiber optic cable

Type:
GYXTY
Armored:
Steel Wire Armored
Application:
Networking, CATV, HTTP, HTTS
Fiber:
Uni-Tube Single Mode Optical
Type:
GYXTY
Armored:
Steel Wire Armored
Application:
Networking, CATV, HTTP, HTTS
Fiber:
Uni-Tube Single Mode Optical

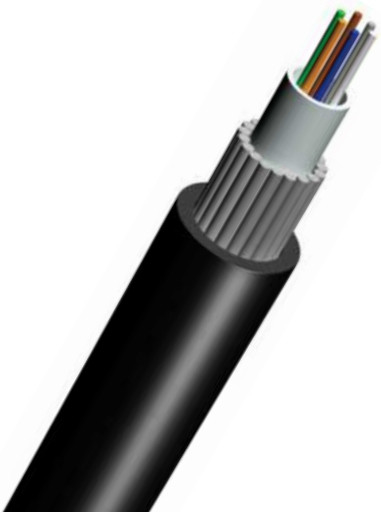

GYXTY Steel Wire Armored Outdoor Fiber Optic Cable Tensile Resistant High Flexibility

GYXTY Outdoor Cable

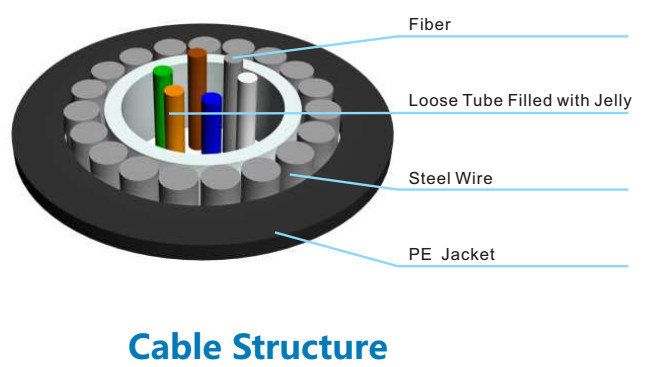

Steel Wire Armored Uni-Tube Single Jacket Cable

Description

Steel Wire Armored Uni-Tube Single Jacket cable is designed with the flexibility and versatility required for today's most demanding installations, including aerial/ lashed, Conduit and Duct. Two parallel FRP wire or Steel wire to enhance tensile resistant .Overall steel wire armoring provide good tensile and crush resistant.



Temperature Range

Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D

Features

Compact structure, Low cost. Up to 24 fibers.

Uni-tube gel-filled construction for superior fiber protection.

Two parallel FRP wire or Steel wire to enhance tensile resistant.

UV and moisture-resistant design.


Applications

Conduit, Duct, Aerial/Lashed.

FTTx, Access.



Option

FRP or Steel wire strength member can be choosed.

Glass yarn or Kevlar yarn is available when additional mechanical protection is desired.

GYXTY Steel Wire Armored Outdoor Fiber Optic Cable Tensile Resistant High Flexibility 0
Optical Characteristics                                                                             GYTS

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm     ≤3.0 dB/km ≤3.3 dB/km
1300 nm     ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm     ≥500 MHz·km ≥200 Mhz·km
1300 nm     ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture     0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm


 Structure and Technical Specifications (7×1.0mm-Steel Stranded Wire)

Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Allowable Tensile Load(N) Allowable Crush Resistance(N/100mm)
Short Term Long Term Short Term Long Term
2~12 7.1 74 2000 1000 1500 600
14~24 7.5 80 2000 1000 1500 600

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.GYXTY Steel Wire Armored Outdoor Fiber Optic Cable Tensile Resistant High Flexibility 1GYXTY Steel Wire Armored Outdoor Fiber Optic Cable Tensile Resistant High Flexibility 2



If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.



If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
