Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CE/ ROHS |
| Model Number: | GYTY53 |
| Minimum Order Quantity: | 10km |
| Price: | 100-300usd |
| Packaging Details: | 2000m/ wooden drum |
| Delivery Time: | 15days |
| Supply Ability: | 1000km/ month |
| Jacket: | UV PE | Armored: | Non |
|---|---|---|---|
| Application: | FTTX | Fiber: | Fujikura G652 |
| Length: | 1km, 2km Or As Required | Packing: | Wooden Drum |
| OEM: | Available | ||
| High Light: | aerial fiber optic cable,bulk fiber optic cable |
||

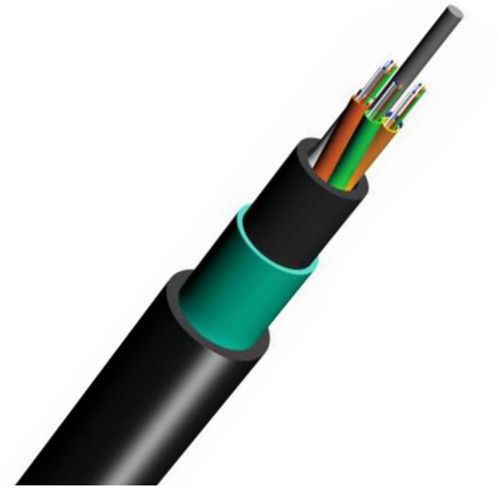

GYTY53 Double PE Jacket Loose Tube Steel Tape Armored Optical Fiber Cable
Description
Non-Armored Loose Tube fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations. With fiber counts up to288 and S-Z strand designs for easy mid-span access.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D
Features
Loose tube gel-filled construction for superior fiber protection.
Double jacket and double armor to protect cable from rodent attack and mechanical damage.
UV and moisture-resistant design.
Applications
Direct buried, Duct or Underground conduits.
Backbone.
Option
FRP or Steel central strength member can be choosed.
Dry core structure available for ease of handling.
Flame-retardant jacket can be provided.
Optical Characteristics GYTS
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |||||
| Attenuation(+20℃) | 850 nm | ≤3.0 dB/km | ≤3.3 dB/km | ||||||
| 1300 nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||||
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||||
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | |||||||
| Bandwidth | 850 nm | ≥500 MHz·km | ≥200 Mhz·km | ||||||
| 1300 nm | ≥500 MHz·km | ≥500 Mhz·km | |||||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||||||
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | |||||||

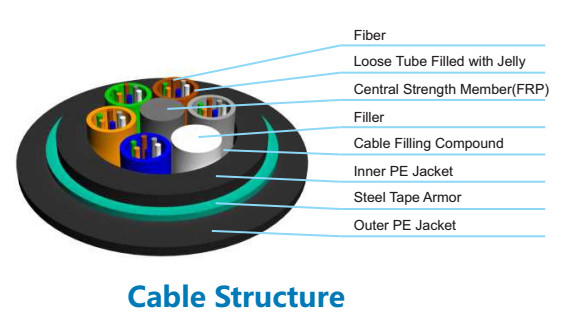

Structure and Technical Specifications
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 12.7 | 173 | 6 | 6 | 3000 | 1000 | 3000 | 1000 |
| 38~72 | 13.9 | 211 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
| 74~96 | 15.5 | 251 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 98~120 | 17.2 | 299 | 12 | 10 | 3000 | 1000 | 3000 | 1000 |
| 122~144 | 18.8 | 345 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
| 146~216 | 19.0 | 337 | 12 | 18(2 layers) | 3000 | 1000 | 3000 | 1000 |
| ＞144 | Available upon customer·s request | 3000 | 1000 | 3000 | 1000 | |||
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
