Place of Origin: | Hangzhou, China |
---|---|
Brand Name: | OEM Produce |
Certification: | CE. ROHS. |
Model Number: | Cat5e+2C CCTV Cable |
Minimum Order Quantity: | 10km |
Price: | 95.0usd/box |
Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
Delivery Time: | 20days after deposit |
Payment Terms: | TT. LC |
Supply Ability: | 5000km/ Month |
Type: | FTP CAT5E+2C | Number Of Conductors: | 2 Pair Copper |
---|---|---|---|
Cable Name: | Lan With DC Power CCTV Cable | Useful: | CCTV IP Camera Wire |
High Light: | siamese coaxial cable,rg coaxial cable |

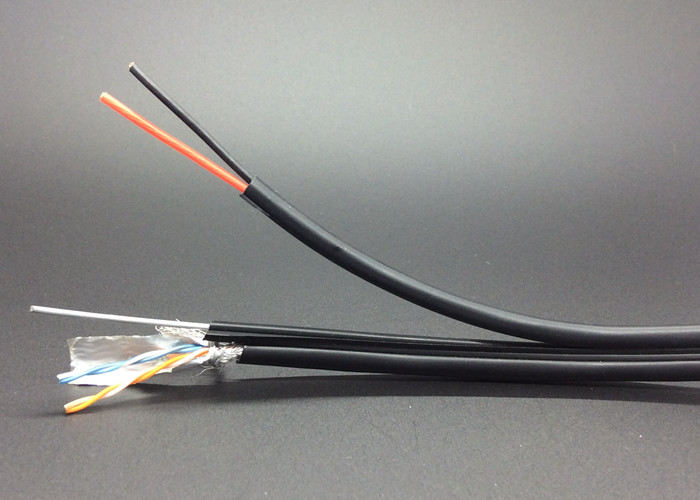

FTP CAT5E+2C Lan with DC Power CCTV Cable 2 Pair Outdoor with Drop Steel Camera Wire
we are professiona coaxial and lan cable manufacturer in China. Welcom to let us know your cables need.
CAT5E +2C Siamese Cable:
Spec: 4 Pair*(0.5BC+0.91PE)+rip cord+5.1PVC Gray+2C*(24*0.2CCA+1.8PVC)+5.1PVC+2C*(7*0.38CCA+1.8PE)
Packing: 100m/reel or 305m/reel
Construction Detail
Lan Cable | Construction | Material | Diameter(mm) |
Inner Conductor | BC | 0.5 | |
Insulation | PE | 0.9 | |
Outer Jacket | PVC | 5.1 | |
DC Power | Inner Conductor | CCA | 7*0.38 |
Insulation | PE/ PVC | 1.8 |
UTP CAT5E | |||||
Production Description: Rate temprature: 60℃, 75℃, 90℃ R eference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring |
|||||
BASIC CHARACTERISTICS | |||||
Temperature Rating | -20℃ to 60℃ | ||||
Dielectric Breakdown | 2500V | ||||
DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
Characteristics Impedance | 100Ω | ||||
Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair | |
(MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT | |
(dB/100m) | (dB/100m) | ||||
0.77 | 1.8 | NA | 70 | 69 | |
1 | 2 | 20 | 68.3 | 66.8 | |
4 | 4 | 23 | 59.3 | 54.7 | |
8 | 5.8 | 24.5 | 54.8 | 48.7 | |
10 | 6.5 | 25 | 53.3 | 46.8 | |
16 | 8.2 | 25 | 50.3 | 42.9 | |
20 | 9.2 | 25 | 48.8 | 40.7 | |
25 | 10.4 | 24.3 | 47.3 | 38.8 | |
31.25 | 11.7 | 23.6 | 45.9 | 36.9 | |
62.5 | 17 | 21.5 | 41.4 | 30.8 | |
100 | 22 | 20.1 | 38.3 | 26.8 | |
155 | 28.1 | 18.8 | 35.5 | 22.9 | |
200 | 32.4 | 18 | 33.8 | 20.7 | |
300 | 41 | 16.8 | 32.3 | 17.2 | |
350 | 44.9 | 16.3 | 30.2 | 15.9 |
Networking Cable Production Line
Loading the Container and Delivery Cables to Port
OEM Packing As Required
Cable Raw Material
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
