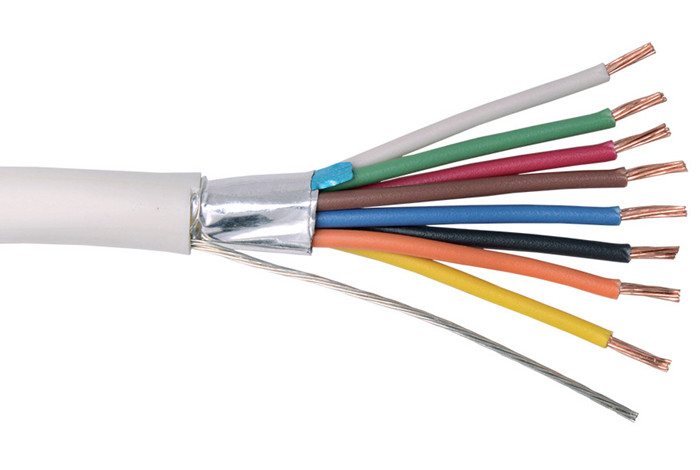

AL Shielded 8 Core Security Alarm Cable 0.22mm² Soft Flexible BC With TC Drain Wire

Product Details

Place of Origin: Hangzhou, China

Brand Name: OEM Produce

Certification: CE. ROHS.

Model Number: Alarm Cable

Payment & Shipping Terms

Minimum Order Quantity: 10km

Price: FOB Shanghai Price: 30USD/200m

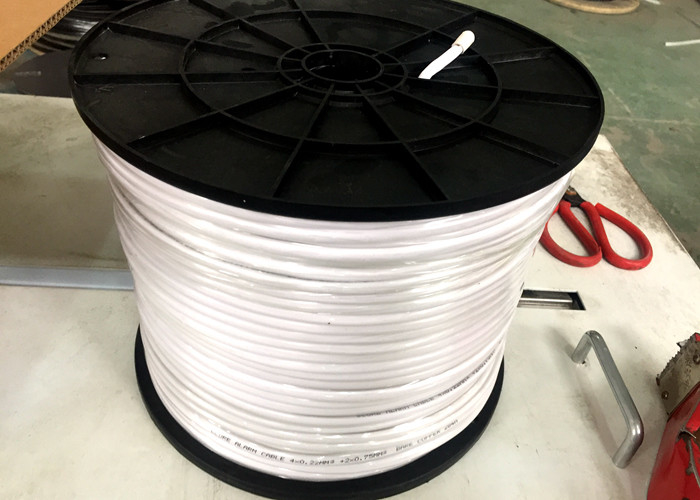

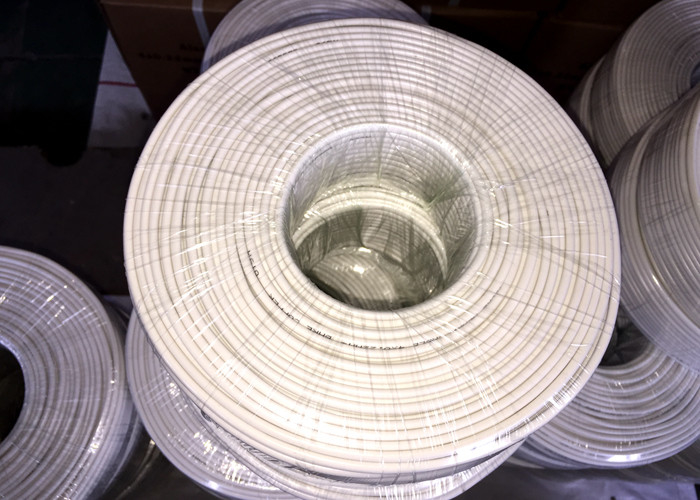

Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel

Delivery Time: 20days after deposit

Payment Terms: TT. LC

Supply Ability: 5000km/ Month

Get Best Price
High Light:

burglar alarm cable

,

alarm system cable

Useful:
Security And Alarm Cable
Jacket Color:
White PVC
Spec:
AL Shielded 8Core 0.22mm² Soft Flexible BC With TC Drain Wire
Inner Conductor:
Bare Copper
Useful:
Security And Alarm Cable
Jacket Color:
White PVC
Spec:
AL Shielded 8Core 0.22mm² Soft Flexible BC With TC Drain Wire
Inner Conductor:
Bare Copper
AL Shielded 8 Core Security Alarm Cable 0.22mm² Soft Flexible BC With TC Drain Wire

Security and Alarm Cable AL Shielded 8Core 0.22mm² Soft Flexible BC with TC Drain Wire

 C: Structure of unshielded 0.22mm² soft alarm cable
Serial NO. Section Specification Overall Diameter(mm)
C-01 2*0.22mm² 2*7/0.20 3
C-02 4*0.22mm² 4*7/0.20 3.5
C-03 6*0.22mm² 6*7/0.20 4.1
C-04 8*0.22mm² 8*7/0.20 4.5
C-05 10*0.22mm² 10*7/0.20 5.2
C-06 12*0.22mm² 12*7/0.20 5.4
C-07 14*0.22mm² 14*7/0.20 5.8
C-08 20*0.22mm² 20*7/0.20 6.8
C-09 30*0.22mm² 30*7/0.20 8.5
C-10 40*0.22mm² 40*7/0.20 10
C-11 2*0.5+2*0.22mm² 2*16/0.20+2*7/0.20 3.9
C-12 2*0.5+4*0.22mm² 2*16/0.20+4*7/0.20 4.5
C-13 2*0.5+6*0.22mm² 2*16/0.20+6*7/0.20 4.9
C-14 2*0.5+8*0.22mm² 2*16/0.20+8*7/0.20 5.7
C-15 2*0.5+10*0.22mm² 2*16/0.20+10*7/0.20 6
C-16 2*0.5+12*0.22mm² 2*16/0.20+12*7/0.20 6.3
C-17 2*0.75+2*0.22mm² 2*24/0.20+2*7/0.20 4.2
C-18 2*0.75+4*0.22mm² 2*24/0.20+4*7/0.20 4.9
C-19 2*0.75+6*0.22mm² 2*24/0.20+6*7/0.20 5.3
C-20 2*0.75+8*0.22mm² 2*24/0.20+8*7/0.20 6.2

Electrical Characteristics

Temperature Rating -20℃ to 60℃
Operating Voltage 24/12V
DC Resistance per Conductor@ 20℃ 6.32 Ohms/1M’Nom

AL Shielded 8 Core Security Alarm Cable 0.22mm² Soft Flexible BC With TC Drain Wire 0AL Shielded 8 Core Security Alarm Cable 0.22mm² Soft Flexible BC With TC Drain Wire 1



If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.



If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
