Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CPR. CE. ROHS. |
| Model Number: | FTP Cat5e 2P+2C |
| Minimum Order Quantity: | 10km |
| Price: | 85.0usd/box |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Delivery Time: | 20days after deposit |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |

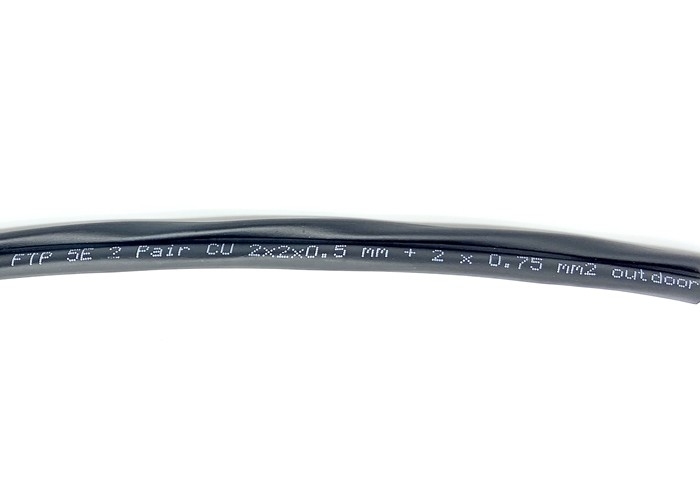

| Conductor: | 2x2x0.5CU Twisted | Insulation: | 2x2x0.91HDPE |
|---|---|---|---|
| Shield: | AL Foil Blue | Sheath: | Black PE-UV |
| Application: | CCTV Camera Installation | Cable Shape: | 8 Figure |
| Highlight: | bulk network cable,cctv camera cable |
||

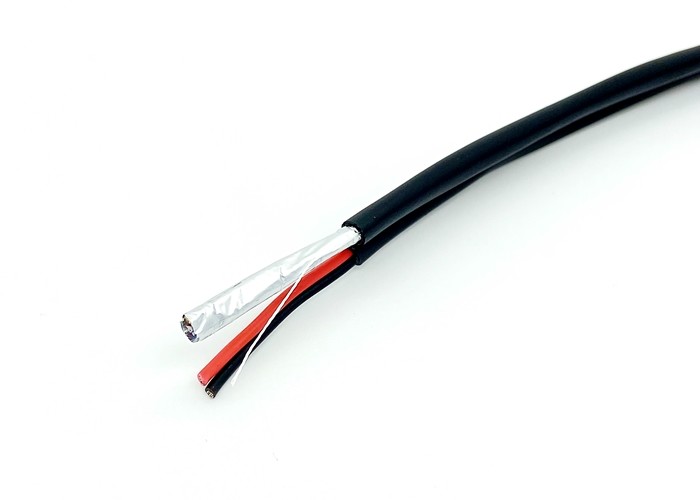

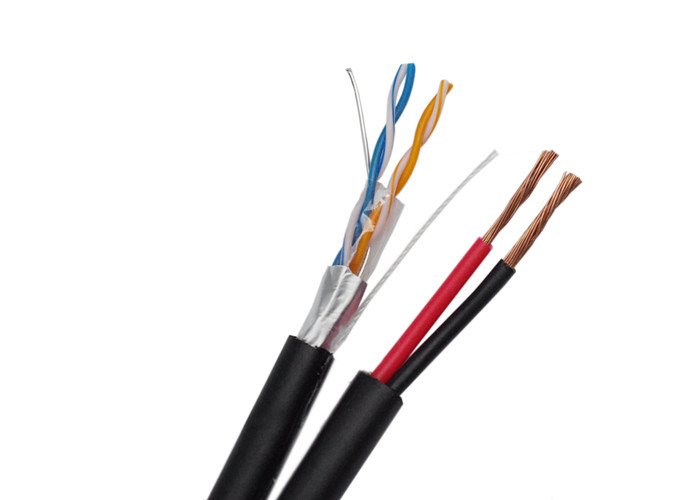

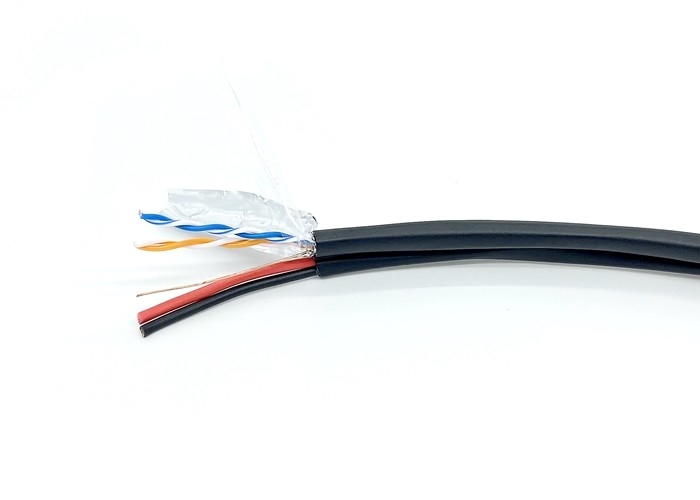

2P Twisted Network Wire FTP CAT5E+2C Siamese Lan with Power CCTV Cable for IP Camera
we are professiona coaxial and lan cable manufacturer in China. Welcom to let us know your cables need.
CAT5E +2C Siamese Cable:
Spec: 2 Pair*(058BC+0.91PE)+rip cord+5.1PVC Gray+2C*(24*0.2CCA+1.8PVC)+5.1PVC+2C*(7*0.38CCA+1.8PE)
Packing: 100m/reel or 305m/reel
| FTP CAT5E+2C Power Cable | ||||||
|
Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring |
||||||
| Basic Construction | Material | Diameter (mm) | ||||
| Lan Cable UTP CAT5E | Conductor | BC | 24AWG | |||
| Insulation | PE | 0.9 | ||||
| Jacket | PVC | 5.1 | ||||
| DC Power Wire | Conductor | CCA | 7*0.39 | |||
| Insulation | PE/ PVC | 1.8 | ||||
| BASIC CHARACTERISTICS | ||||||
| Temperature Rating | -20℃ to 60℃ | |||||
| Dielectric Breakdown | 2500V | |||||
| DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | |||||
| Characteristics Impedance | 100Ω | |||||
| Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair | ||
| (MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT | ||
| (dB/100m) | (dB/100m) | |||||
| 0.77 | 1.8 | NA | 70 | 69 | ||
| 1 | 2 | 20 | 68.3 | 66.8 | ||
| 4 | 4 | 23 | 59.3 | 54.7 | ||
| 8 | 5.8 | 24.5 | 54.8 | 48.7 | ||
| 10 | 6.5 | 25 | 53.3 | 46.8 | ||
| 16 | 8.2 | 25 | 50.3 | 42.9 | ||
| 20 | 9.2 | 25 | 48.8 | 40.7 | ||
| 25 | 10.4 | 24.3 | 47.3 | 38.8 | ||
| 31.25 | 11.7 | 23.6 | 45.9 | 36.9 | ||
| 62.5 | 17 | 21.5 | 41.4 | 30.8 | ||
| 100 | 22 | 20.1 | 38.3 | 26.8 | ||
| 155 | 28.1 | 18.8 | 35.5 | 22.9 | ||
| 200 | 32.4 | 18 | 33.8 | 20.7 | ||
| 300 | 41 | 16.8 | 32.3 | 17.2 | ||
| 350 | 44.9 | 16.3 | 30.2 | 15.9 | ||
Networking Cable Production Line
Loading the Container and Delivery Cables to Port
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
