Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE. ROHS.
Model Number: Alarm Cable
Payment & Shipping Terms
Minimum Order Quantity: 10km
Price: FOB Shanghai Price: 60USD/200m
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Useful: |
Fire And Smoke Alarm |
Jacket Color: |
Orange Or Red PVC |
Application: |
Security And Alarm System |
Inner Conductor: |
16AWG FPL-CL2 Class 2 Bare Copper |
Type: |
Fire Resistance Cable |
Useful: |
Fire And Smoke Alarm |
Jacket Color: |
Orange Or Red PVC |
Application: |
Security And Alarm System |
Inner Conductor: |
16AWG FPL-CL2 Class 2 Bare Copper |
Type: |
Fire Resistance Cable |

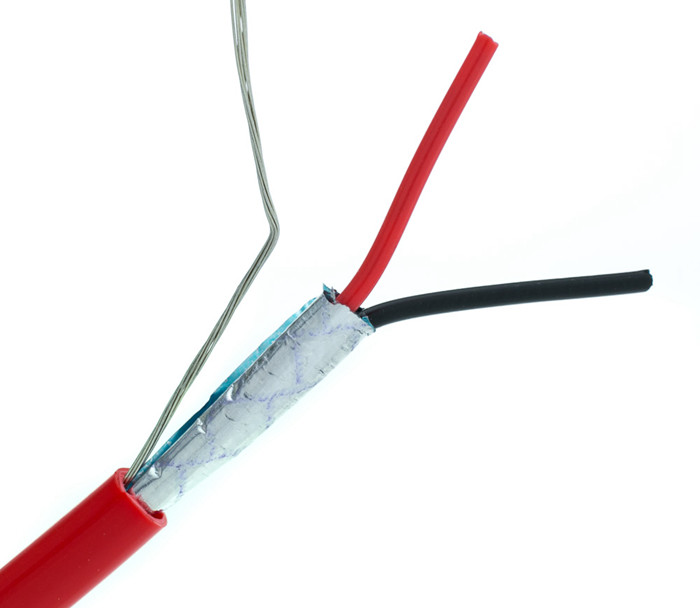

| Fire Alarm Cables 16AWG FPL-CL2 | |||||||
| AT1418 | Power Limited Multiple donductor | ||||||
| Application | |||||||
| Indoor for: | |||||||
| Audio Circuits | |||||||
| Control Circuits | |||||||
| Initiating Circuits | |||||||
| Notification Circuits | |||||||
| Properties | |||||||
| Temperature Rating: '-20 to 75℃ | |||||||
| Operating Voltage: 300 Volts max. | |||||||
| Flame Rating: UL 1685 Vertical Tray | |||||||
| Insulation & Jacket: PVC | |||||||

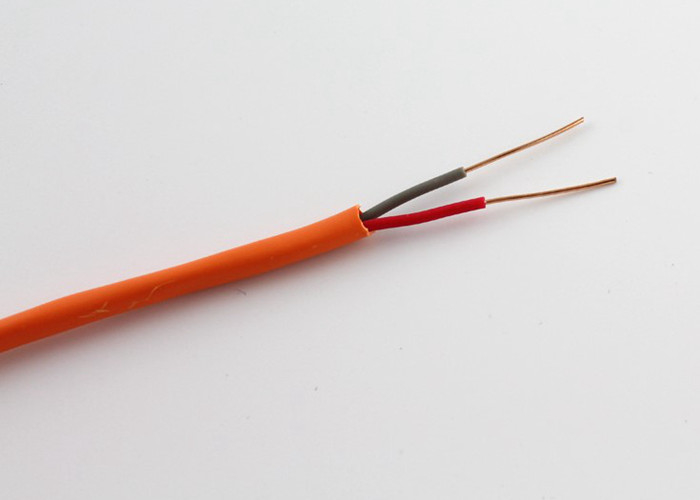

| Unshielded types | |||||||
| Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
| Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M' |
| 2 | 16 AWG | 0.006" | 0.015" | 0.158" | 20 | 81 | 4.15 |
| 4 | 16 AWG | 0.006" | 0.015" | 0.180" | 20 | 81 | 4.15 |

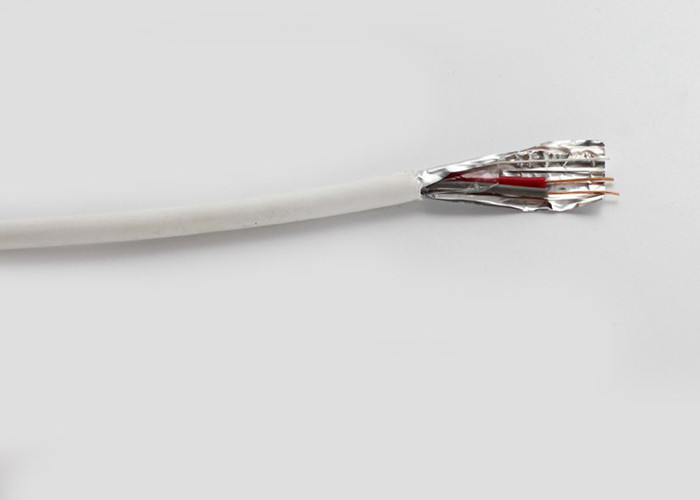

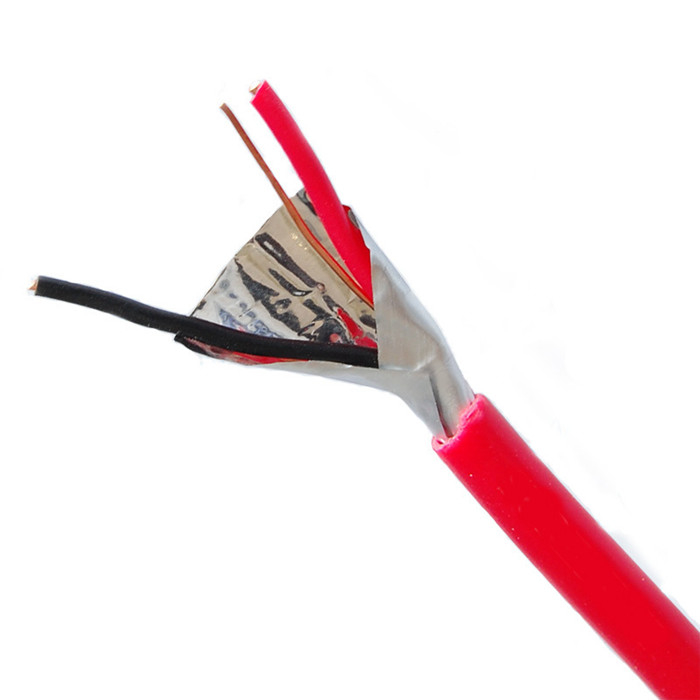

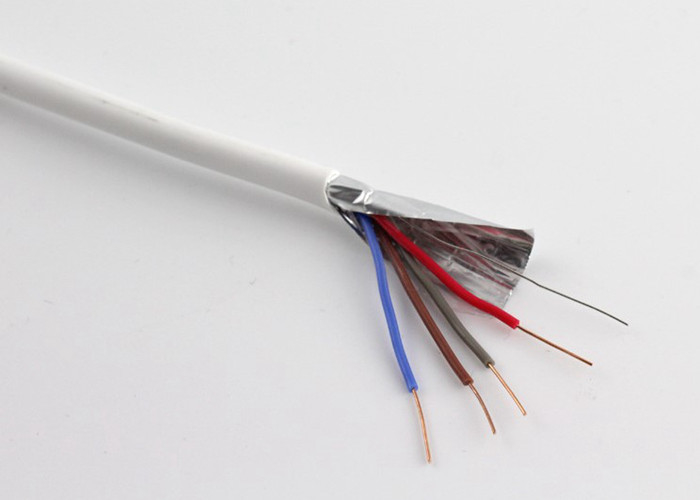

| Shielded types | |||||||
| Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
| Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M' |
| 2 | 16 AWG | 0.006" | 0.015" | 0.160" | 46 | 34 | 4.1 |
| 4 | 16 AWG | 0.006" | 0.015" | 0.186" | 46 | 34 | 4.1 |
| Drain Wire | 20 AWG Solid Tinned-Copper | ||||||
| Shield | 0.001" thick Aluminum/Mylar | ||||||
| Color | |||||||
| Number | Description | ||||||
| 2 | Blk,Red | ||||||
| 4 | Blk,Red,Ylw,Grn | ||||||
| Order Informations: | |||||||
| AITE AT1418 ×C16 E×××××××(UL) FPL OR CL2 SUN RES(ROHS) ××××FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9 | |||||||
| Packing | 1000FT/Pull Box, 1000FT/Spool, Pallet | ||||||
| Online Service: | |||||||
| Skype | thomas-aite | QQ: | 398023701 | ||||
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
