Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CE/ ROHS |
| Model Number: | JETnet |
| Minimum Order Quantity: | 10km |
| Price: | 100-300usd |
| Packaging Details: | 2000m/ wooden drum |
| Delivery Time: | 15days |
| Supply Ability: | 1000km/ month |
| Features: | Air-Blowing With HDPE Guided Tubes | Jacket: | HDPE DUCT |
|---|---|---|---|
| Type: | JETnet Outdoor Fiber Optic Cable | Application: | FTTX Direct Buried |
| Fiber: | Fujikura G652D | ||
| High Light: | outdoor fiber patch cable,bulk fiber optic cable |
||

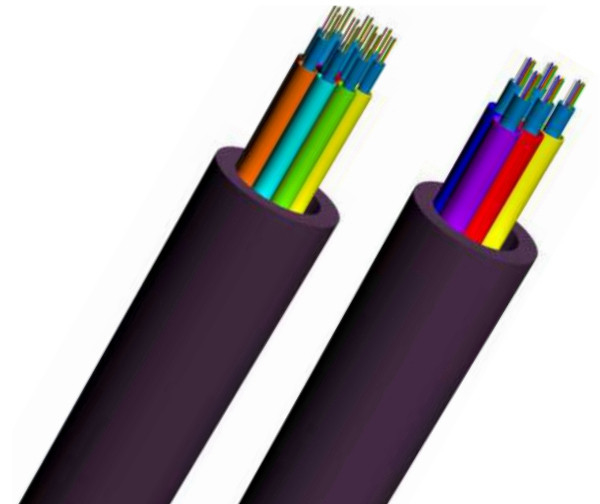

JETnet Outdoor Fiber Optic Cable Air-Blowing with HDPE Guided Tubes
JETnet Outdoor Cable
Air-Blowing Micro Cable System
Description
Air-Blowing Micro cable (JETnet®) technology is for optical cable installation by air-blowing method, originally invented by Dutch Draka Comteq (former NKF company) now introduced to Chinese market by EFON. This system can be applied to any network construction. The technology of this system is to use air to blow HDPE guided tubes into a buried HDPE or PVC duct. Then the micro non-metallic optical cable is installed by air-blowing into the guided tube. This methodhas a breakthrough over the limit of present cable bury technology and increases the usage efficiency of cable duct. And it also easily makes the cable branching and enlarges the cable capacity in all direction.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D
Features
High dense fiber count; Repeated use of guided tube; Efficient use of duct resources.
Blowing micro cable as business increases, meet customer's needs in time.
Leave space for new type optical fiber and JET in technology.
Easily enlarge capacity in all direction, lessen construction work and save on construct expense.
Fast installation of micro optical cable by air-blowing and with long distance, largely increase the bury efficiency. By installing Y-connector, branching of optical cable can be easily done anytime and anywhere without planning for location of splice closure and cable division, and without influence of other cable's operation.
At the same time, use of Y-connector can save lots of hand holes, splice closures and costs economically.

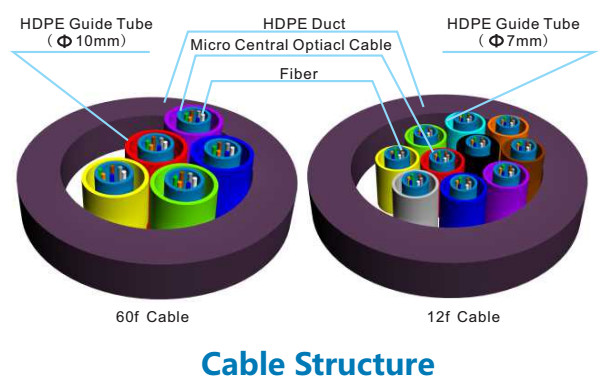

Standard component: Duct-Guided tube-Optical cable
The main components of JETnet® system are “Duct-Guided Tube-Optical Cable”. The duct is usually made with HDPE pipe with silicon inner surface, or made with PVC pipe. The guided tube is extruded with HDPE material. And the optical cable is the micro central tube optical cable.
The sizes of HDPE duct are of Φ25mm, Φ32mm, Φ40mm, Φ50mm, Φ63mm. The sizes of guided tube are of Φ7mm andΦ10mm.
EFON JETnet® cable is non-metallic micro central tube optical cable. The micro cable meets all specifications in mechanical tests and environmental temperature cycling for installation and operation condition in indoor and outdoor applications.
Quantity of Guided Tube in Duct
|
Duct Diameter(mm) |
Diameter of Guided Tube |
|
| 10mm | 7mm | |
| 25 | 1 | 2 |
| 32 | 3 | 6 |
| 40 | 5 | 10 |
| 50 | 7 | 14 |
| 63 | 10 | 20 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
