Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE. ROHS.
Model Number: PK 75-2-13
Payment & Shipping Terms
Minimum Order Quantity: 10km
Price: FOB Shanghai Price: 33.0 USD/400m
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Type: |
PK 75-2-13 |
Inner Conductors: |
0.12*7 TC(Tinned Copper) Conductor |
Coax: |
75 Ohm Coaxial Cable |
Type: |
PK 75-2-13 |
Inner Conductors: |
0.12*7 TC(Tinned Copper) Conductor |
Coax: |
75 Ohm Coaxial Cable |

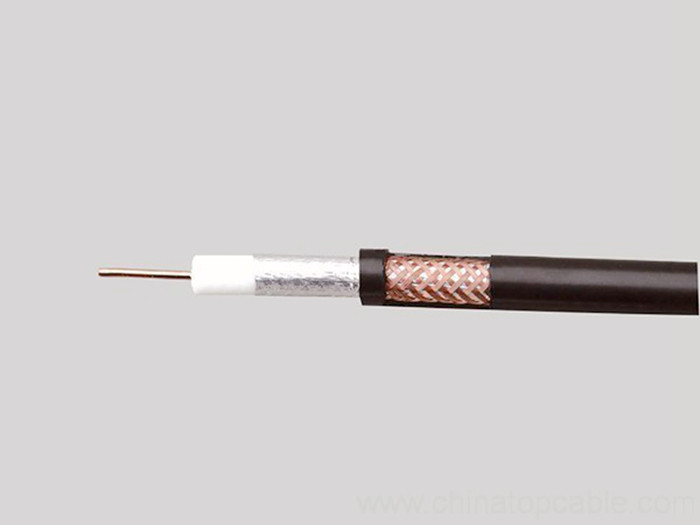

PK 75-2-13 75 Ohm Coaxial Cable with 0.12*7 TC(Tinned Copper) Conductor
PK 75-2-13 Stranded: 7X0.12mm TC+2.2mm SPE+16x4x0.10mm Cu+3.66mm PE Packing: 400m/roll
| Construction | Material | Diameter(mm) |
| Inner Conductor | TC | 7*0.12 |
| Dielectric | Solid PE | 2.2 |
| First Shield | Bonded AL Foil | without |
| Second Shield | BC Braid | 72% |
| Outer Jacket | PVC | 3.66 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 82.0 |
|
Return Loss 5-1000MHz(dB) |
≥23 |
|
Return Loss 1000-3000MHz(dB) |
≥19 |
Attenuation(@20℃)
| Frequency (MHZ) | Max Attenuation (dB/100m) |
| 10 | -- |
| 50 | 5.9 |
| 100 | 7.0 |
| 200 | 12.0 |
| 400 | 21.5 |
| 700 | 31.1 |
| 900 | 36.3 |
| 1000 | 39.8 |
| 1300 | 43.5 |
| 1450 | 46.2 |
| 1800 | 51.2 |
| 2200 | 59.0 |
