Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE. ROHS.
Model Number: Alarm Cable
Payment & Shipping Terms
Minimum Order Quantity: 10km
Price: FOB Shanghai Price: 30USD/200m
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Useful: |
House Control System |
Jacket Color: |
White PVC |
Spec: |
Security And Alarm Cable |
Inner Conductor: |
CCA/ BC/ TC |
Useful: |
House Control System |
Jacket Color: |
White PVC |
Spec: |
Security And Alarm Cable |
Inner Conductor: |
CCA/ BC/ TC |

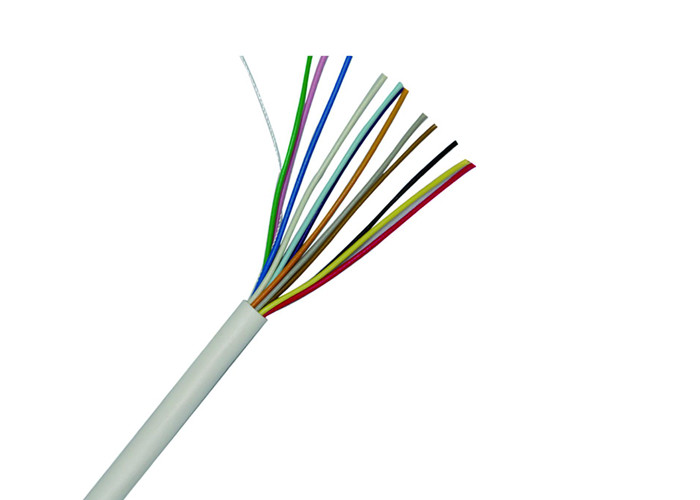

| C: Structure of unshielded 0.22mm² soft alarm cable | |||
| Serial NO. | Section | Specification | Overall Diameter(mm) |
| C-01 | 2*0.22mm² | 2*7/0.20 | 3 |
| C-02 | 4*0.22mm² | 4*7/0.20 | 3.5 |
| C-03 | 6*0.22mm² | 6*7/0.20 | 4.1 |
| C-04 | 8*0.22mm² | 8*7/0.20 | 4.5 |
| C-05 | 10*0.22mm² | 10*7/0.20 | 5.2 |
| C-06 | 12*0.22mm² | 12*7/0.20 | 5.4 |
| C-07 | 14*0.22mm² | 14*7/0.20 | 5.8 |
| C-08 | 20*0.22mm² | 20*7/0.20 | 6.8 |
| C-09 | 30*0.22mm² | 30*7/0.20 | 8.5 |
| C-10 | 40*0.22mm² | 40*7/0.20 | 10 |
| C-11 | 2*0.5+2*0.22mm² | 2*16/0.20+2*7/0.20 | 3.9 |
| C-12 | 2*0.5+4*0.22mm² | 2*16/0.20+4*7/0.20 | 4.5 |
| C-13 | 2*0.5+6*0.22mm² | 2*16/0.20+6*7/0.20 | 4.9 |
| C-14 | 2*0.5+8*0.22mm² | 2*16/0.20+8*7/0.20 | 5.7 |
| C-15 | 2*0.5+10*0.22mm² | 2*16/0.20+10*7/0.20 | 6 |
| C-16 | 2*0.5+12*0.22mm² | 2*16/0.20+12*7/0.20 | 6.3 |
| C-17 | 2*0.75+2*0.22mm² | 2*24/0.20+2*7/0.20 | 4.2 |
| C-18 | 2*0.75+4*0.22mm² | 2*24/0.20+4*7/0.20 | 4.9 |
| C-19 | 2*0.75+6*0.22mm² | 2*24/0.20+6*7/0.20 | 5.3 |
| C-20 | 2*0.75+8*0.22mm² | 2*24/0.20+8*7/0.20 | 6.2 |
Electrical Characteristics
| Temperature Rating | -20℃ to 60℃ |
| Operating Voltage | 24/12V |
| DC Resistance per Conductor@ 20℃ | 6.32 Ohms/1M’Nom |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
