Place of Origin: | Hangzhou, China |
---|---|
Brand Name: | OEM Produce |
Certification: | CPR. CE. ROHS. |
Model Number: | RG11-U |
Minimum Order Quantity: | 10km |
Price: | FOB Shanghai Price: 50.00 USD/305m |
Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
Delivery Time: | 20days after deposit |
Payment Terms: | TT. LC |
Supply Ability: | 5000km/ Month |
Type: | RG11U | Conductor: | CCS Copper Clad Steel |
---|---|---|---|
Insulation: | Foamed PE(Skin-Foam-Skin)) | Shielth: | AL Foil+Braiding+AL Foil |
Color: | Ivory Or Customized | Packing: | 1000Meter Wooden Drum |
Application: | CATV, MATV | ||
High Light: | 75 ohm bnc cable,satellite coax cable |

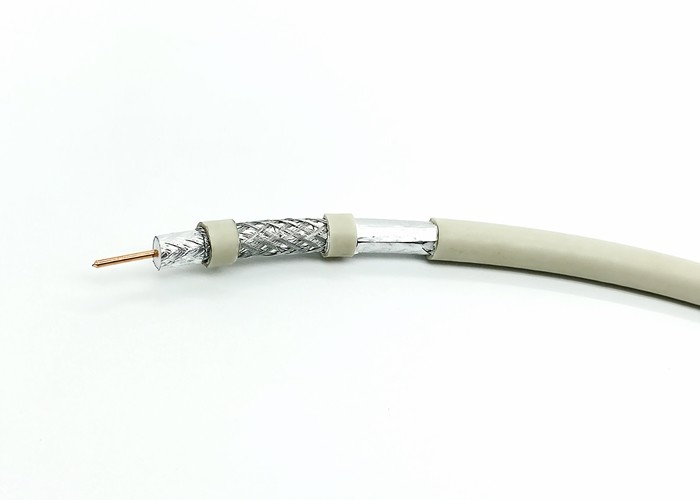

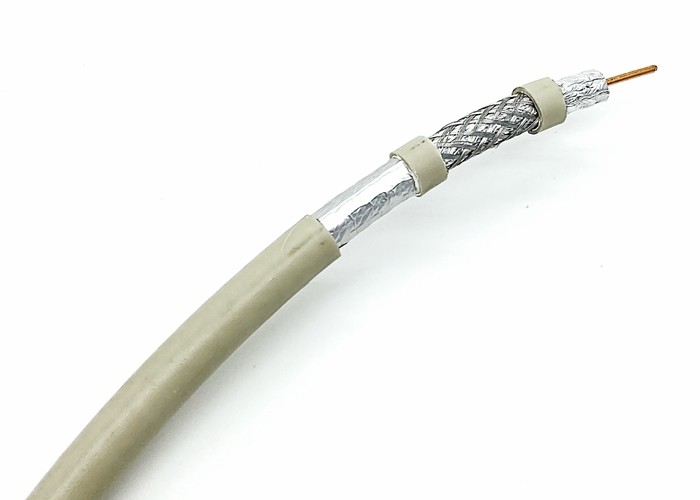

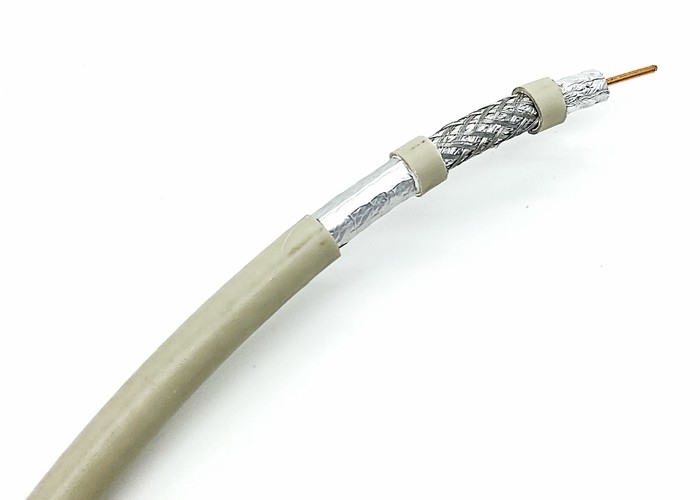

75 Ohm Coaxial Cable RG11/ F1160 Trunk Telecom Wire Foamed PE(Skin-Foam-Skin))
RG Series Coaxial cable
RG11: 1.63mm Cu+7.25mm FPE+AL Foil+16x6x0.16mm AL(70%) +10.10mm PVC
Packing: 305m/wooden drum
RG11 Coaxial cable
RG11 Coaxial Cables are generally used in video transmission, CCTV, Digital TV, Satellite TV system abd HFC broadband networks.
Advanced Features:
Presented below are key features of RG Series which are widely represented in different versions within this catalogue.
All of these products have some common features including:
--Closed cell Foamed PE Dielectric
--Attenuation Swept from 5MHz-2GHz
--High screening effectiveness, also know as Class A+/ Class A++ Screen Attenuation(AS) according to EN50117 SPECIFICATIONS
--Long-lasting stability of signal attenuation thanks to physical gas injected foam PE dielectric technology(skin-foam-skin)
--Coaxial cables with PVC Jacket, flexible thermo-plastic material commonly used on general purpose coaxial products. Temprature rating:-40℃ to 80℃
--Coaxial cables with PE outer sheath, strong enough to protect the coaxial core from the environment, must be used for outdoor / underground/ direct burial installations. Temprature rating:-55℃ to 85℃
--Characteristics of LSZH: flame and fire retartant, low smoke and fume emission, zero halogen and UV resistant
--Series of Anti-corrosion protection materials are available
--Cable marked Footage/ Meters
Construction | Material | Diameter(mm) |
Inner Conductor | BC | 1.63 |
Dielectric | Foam PE | 7.25 |
First Shield | Bonded AL Foil | 25 |
Second Shield | AL Braid | 70% |
Third Shield | AL Foil | 24th |
Outer Jacket | PVC Ivory | 10.3 |
Electrical Characteristics
Impedance (Ω) | 75±3 |
Capacitance (pF/m) | 52±2 |
Velocity of Propagation(﹪) | 85.0 |
Return Loss 5-1000MHz(dB) |
≥22 |
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.4 | 1.3 |
55 | 1.0 | 3.2 |
187 | 1.7 | 5.7 |
211 | 1.9 | 6.2 |
400 | 2.6 | 8.5 |
500 | 2.9 | 9.5 |
750 | 3.6 | 11.9 |
860 | 4.0 | 13.1 |
1000 | 4.3 | 14.3 |
1500 | 5.1 | 16.8 |
1800 | 5.7 | 18.6 |
2200 | 6.3 | 20.7 |
3000 | 7.6 | 24.9 |
TYPE | Conductor | Insulation | Braid Shield | Jacket |
Nom. Imped Ohm |
Nom. Capa. pF/m |
Attenuation 100MHz db/Km |
|||||
No./mm | MTRL | mm | MTRL | No./mm | No./mm | MTRL |
O.D mm |
MTRL | ||||
RG-6/U | 1/1.02 | BC | 4.57 | FPE | AF | 95% | TC | 6.9 | PVC | 75 | 55 | 94 |
RG-8/U | 7/0.9 | BC | 7.24 | FPE | 95% | - | BC | 10.3 | PVC | 52 | 85 | 64 |
RG-8/U | 7/0.724 | BC | 7.24 | PE | 95% | - | BC | 10.3 | PVC | 52 | 97 | 70 |
RG-8/X | 19/0.287 | BC | 3.94 | FPE | 95% | - | BC | 6.15 | PVC | 52 | 85 | 121 |
RG-11/U | 1/1.63 | BC | 7.24 | FPE | DF | 75% | TC | 10.3 | PVC | 75 | 57 | 49 |
RG-14/U | 1/2.591 | BC | 9.4 | PE | 97% | 97% | BCBC | 13.8 | PVC | 52 | 97 | 50 |
RG-58/U | 1/0.8 | BC | 2.9 | PE | 95% | - | TC | 5.0 | PVC | 50 | 94 | 140 |
RG-58A /U | 19/0.203 | TC | 2.9 | FPE | AF | 97% | TC | 5.03 | PVC | 50 | 86 | 131 |
RG-58A /U | 19/0.18 | TC | 2.95 | PE | 95% | - | TC | 4.95 | PVC | 50 | 102 | 160 |
RG-58C /U | 19/0.18 | TC | 2.95 | PE | 95% | - | TC | 4.95 | NC-PVC | 50 | 102 | 160 |
RG-59/U | 7/0.254 | BC | 3.71 | FPE | 95% | - | BC | 6.15 | PVC | 75 | 57 | 98 |
RG-59/U | 1/0.81 | BC | 3.71 | FPE | AF | 85% | BC | 6.15 | PVC | 75 | 57 | 98 |
RG-59/U | 1/0.643 | CCS | 3.71 | PE | 95% | - | BC | 6.15 | PVC | 73 | 69 | 120 |
RG-59A /U | 17/0.16 | BC | 3.71 | PE | 95% | - | BC | 6.15 | NC-PVC | 73 | 69 | 120 |
RG-59B/U | 1/0.584 | CCS | 3.71 | PE | 95% | - | BC | 6.15 | NC-PVC | 75 | 67 | 120 |
RG-62/U | 1/0.643 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | PVC | 93 | 44 | 83 |
RG-62A /U | 1/0.643 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | NC-PVC | 93 | 44 | 83 |
RG-62B/U | 7/0.203 | CCS | 3.71 | SSPE | 95% | - | BC | 6.15 | NC-PVC | 93 | 44 | 100 |
RG-71B/U | 1/0.643 | CCS | 3.71 | SSPE | 95% | 95% | TCTC | 6.22 | PE | 93 | 44 | 84 |
RG-174/U | 7/0.16 | CCS | 1.52 | PE | 95% | - | TC | 2.8 | PVC | 50 | 100 | 260 |
RG-174A /U | 7/0.16 | CCS | 1.52 | PE | 95% | - | TC | 2.8 | NC-PVC | 50 | 100 | 260 |
RG-212/U | 1/1.412 | SC | 4.7 | PE | 97% | 97% | SCSC | 8.4 | NC-PVC | 50 | 98 | 87 |
RG-213/U | 7/0.752 | BC | 7.24 | PE | 95% | - | BC | 10.3 | NC-PVC | 50 | 98 | 70 |
RG-214/U | 7/0.752 | SC | 7.24 | PE | 97% | 97% | SCSC | 10.8 | NC-PVC | 50 | 98 | 67 |
RG-216/U | 7/0.404 | TC | 7.24 | PE | 97% | 97% | BCBC | 10.8 | PVC | 75 | 67 | 72 |
RG-223/U | 1/0.90 | SC | 2.9 | PE | 97% | 97% | SCSC | 5.3 | NC-PVC | 50 | 98 | 120 |

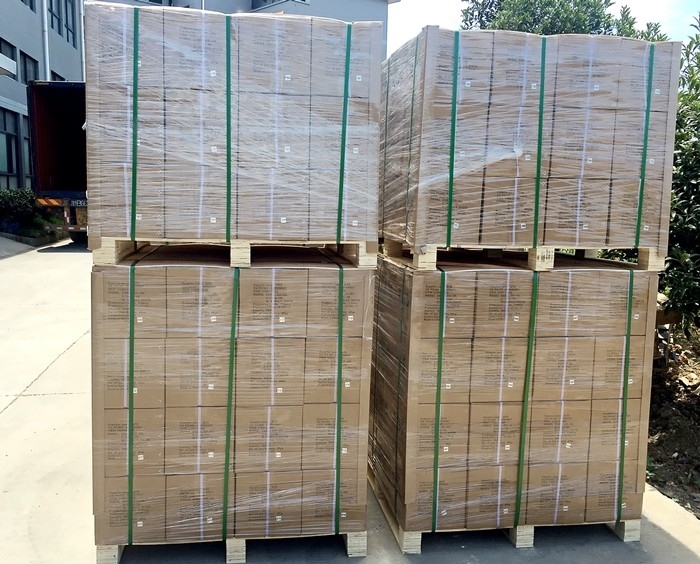

Finished Cables Wooden drum and Pallet Packing

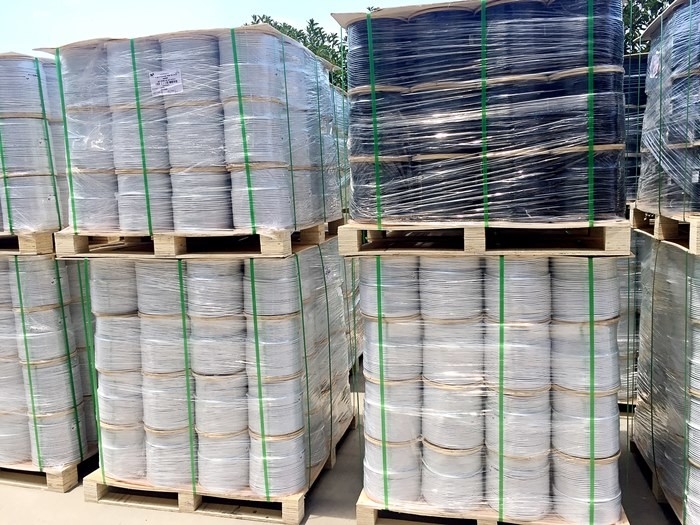

Finished Cables Loading the Container and Delivery to Port
OEM Packing As Required
Testing
Cable Raw Material
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
