Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CPR. CE. ROHS.
Model Number: RG58A/U
Payment & Shipping Terms
Minimum Order Quantity: 10km
Price: FOB Shanghai Price: 30.0 USD/200m
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Connector: |
19*0.18OFC Stranded |
Insulation: |
2.9Solid PE |
Jacket: |
4.95PVC |
Length: |
500m Or As Required |
Application: |
GPS, CCTV |
Connector: |
19*0.18OFC Stranded |
Insulation: |
2.9Solid PE |
Jacket: |
4.95PVC |
Length: |
500m Or As Required |
Application: |
GPS, CCTV |

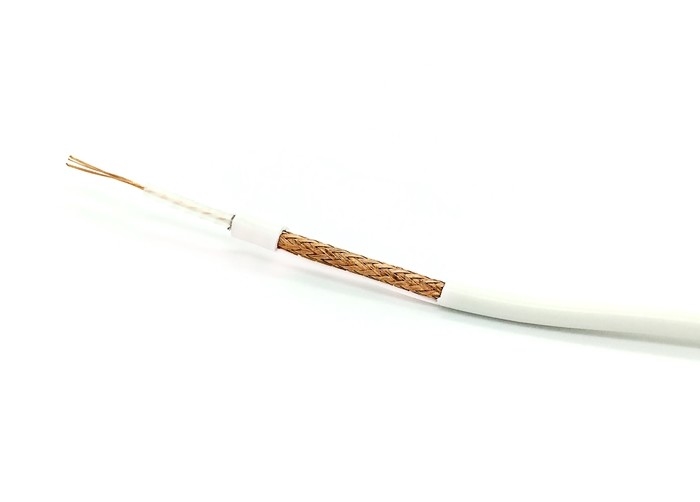

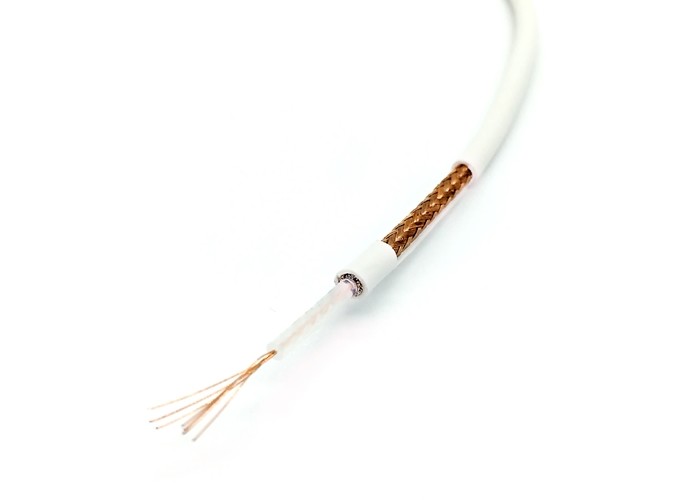

RG58 50 Ohm Coaxial Cable Tinned or Bare Copper Conductor Antenna Wire
RG Series Coaxial cable RG58: 19/0.18mm Cu+2.95mm SPE+TC Braid(85%)+4.95mm PVC
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC/TC | 0.18*19 |
| Dielectric | Solid PE | 2.95 |
| First Shield | Bonded AL Foil | WITHOUT |
| Second Shield | BC/TC Braild | 85% |
| Outer Jacket | PVC WHITE | 4.95 |
Electrical Characteristics
| Impedance (Ω) | 50±3 |
| Capacitance (pF/m) | 66.0 |
| Velocity of Propagation(﹪) | 83.0 |
| Conductor DCR(Ohm/km) | 13.5 |
| Outer Shield DCR(Ohm/km) | 35.1 |
| Max Operating Frequency(MHZ) | 1000.0 |
| Max Operating Voltage(RMS) | 1900.0 |
|
Operating Tem Range(℃) |
-20 to 85 |
Attenuation(@20℃)
| Frequency (MHZ) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 10 | 1.5 | 4.9 |
| 50 | 3.3 | 10.9 |
| 100 | 4.7 | 15.5 |
| 200 | 7.5 | 24.5 |
| 400 | 10.6 | 34.8 |
| 600 | 12.1 | 39.6 |
| 860 | 17.2 | 56.4 |
| 1000 | 18.4 | 60.5 |
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
