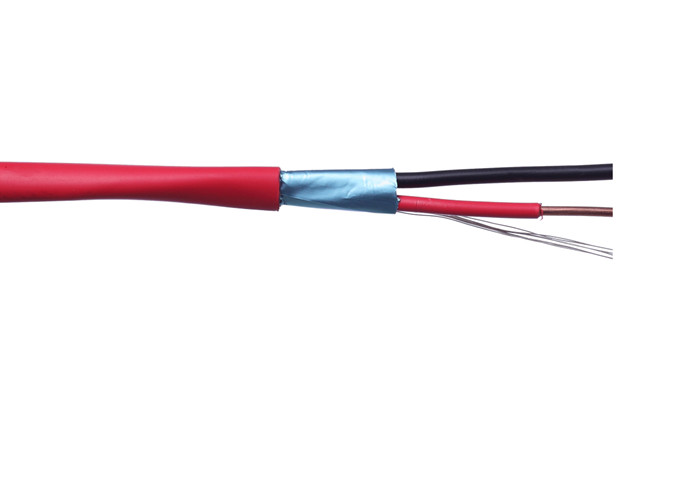

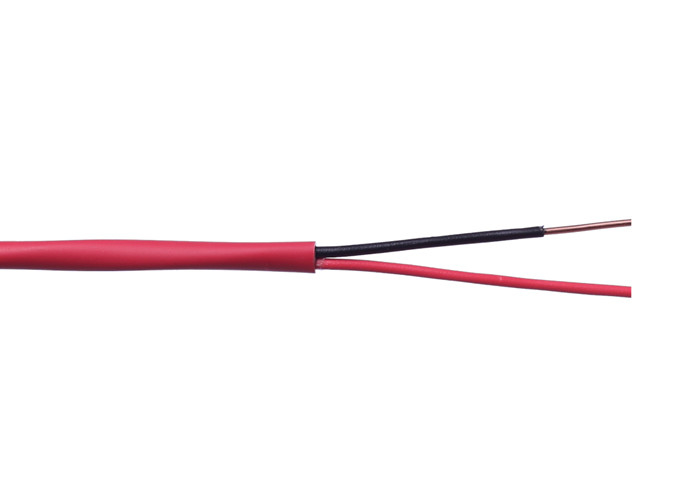

Orange / Red Fire Resistant Cable 22AWG FPLP-CL2P BC Pure Copper Fire Alarm

Product Details

Place of Origin: Hangzhou, China

Brand Name: OEM Produce

Certification: CE. ROHS.

Model Number: Alarm Cable

Payment & Shipping Terms

Minimum Order Quantity: 10km

Price: FOB Shanghai Price: 60USD/200m

Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel

Delivery Time: 20days after deposit

Payment Terms: TT. LC

Supply Ability: 5000km/ Month

Get Best Price
High Light:

fire alarm cables

,

fire proof cable

Useful:
Fire And Smoke Alarm Wire
Jacket Color:
Orange Or Red
Spec:
22AWG FPLP-CL2P Pure Copper
Inner Conductor:
BC Pure Copper
Type Name:
Flame Resistant Cable
Useful:
Fire And Smoke Alarm Wire
Jacket Color:
Orange Or Red
Spec:
22AWG FPLP-CL2P Pure Copper
Inner Conductor:
BC Pure Copper
Type Name:
Flame Resistant Cable
Orange / Red Fire Resistant Cable 22AWG FPLP-CL2P BC Pure Copper Fire Alarm

Flame Resistant Cable 22AWG FPLP-CL2P Pure Copper Fire Alarm Wire

Fire Alarm Cables 22AWG FPLP-CL2P
AT1426 Power Limited Multiple donductor

Application
Indoor for:
Audio Circuits
Control Circuits
Initiating Circuits
Notification Circuits

Properties
Temperature Rating: '-20 to 75℃
Operating Voltage: 300 Volts max.
Flame Rating: UL 910,NFPA 262,C(UL) FT6
Insulation & Jacket: Plenum PVC


Shielded types
Conductors NOM.THICKNESS(MM) Nominal0.D. Capacitance Impedance DC Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
4 22 AWG 0.007" 0.015" 0.126" 53 38 17

Drain Wire 22 AWG Solid Tinned-Copper
Shield 0.001" thick Aluminum/Mylar

Color
Number Description
4 Blk,Red,Ylw,Grn





Order Informations:
Print AITE AT1426 ×C22 E×××××××(UL) FPLP OR CL2P C(UL)US FT6 SUN RES(ROHS) ××××FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9

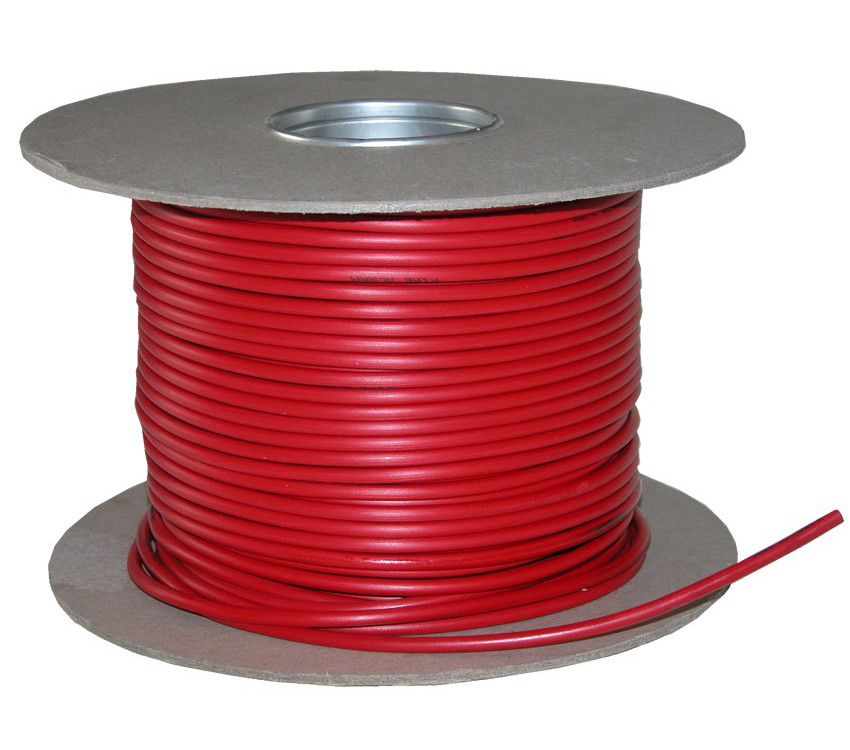

Packing 1000FT/Pull Box, 1000FT/Spool, Pallet

Online Service:
Skype thomas-aite   QQ/Wechat 398023701



If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.



If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
