MGTS Outdoor Fiber Optic Cable Stranded Loose Tube Mining Flame-Retardant Jacket

Product Details

Place of Origin: Hangzhou, China

Brand Name: OEM Produce

Certification: CE/ ROHS

Model Number: MGTS

Payment & Shipping Terms

Minimum Order Quantity: 10km

Price: 100-300usd

Packaging Details: 2000m/ wooden drum

Delivery Time: 15days

Supply Ability: 1000km/ month

Get Best Price
High Light:

outdoor fiber patch cable

,

aerial fiber optic cable

Jacket:
Flame-Retardant Jacket
Armored:
Steel Tape Armored
Type:
MGTS Outdoor Fiber Optic Cable
Fiber:
Fujikura G652D
Structure:
Stranded Loose Tube Mining
Application:
CATV, Telecom, HTTS, HTTP
Jacket:
Flame-Retardant Jacket
Armored:
Steel Tape Armored
Type:
MGTS Outdoor Fiber Optic Cable
Fiber:
Fujikura G652D
Structure:
Stranded Loose Tube Mining
Application:
CATV, Telecom, HTTS, HTTP

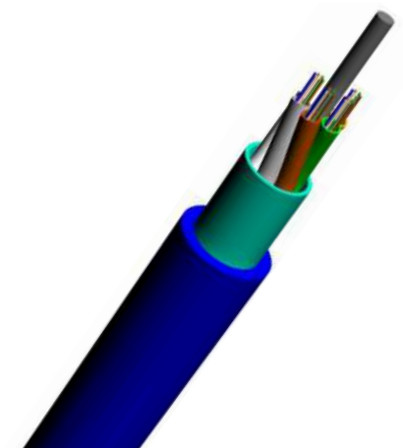

MGTS Outdoor Fiber Optic Cable Stranded Loose Tube Mining Flame-Retardant Jacket

MGTS Outdoor Fiber Optic Cable Stranded Loose Tube Mining Flame-Retardant Jacket

MGTS Stranded Loose Tube Mining Flame-Retardant Cable


Description

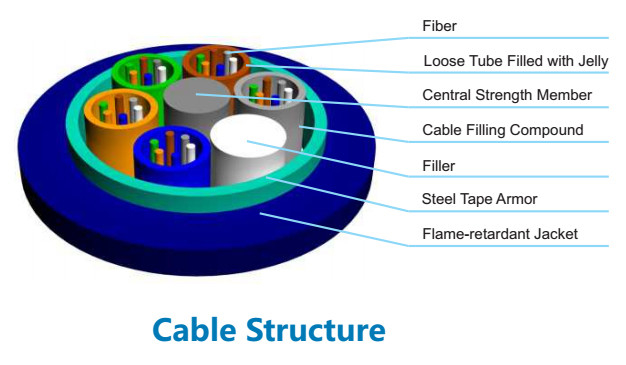

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with PE for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The steel tape armor is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a flame-retardant jacket.



Temperature Range

Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D

Features



Good mechanical and temperature performance. High strength loose tube that is hydrolysis resistant.

Special tube filling compound ensure a critical protection of fiber. Specially designed compact structure is good at preventing loose tubes from shrinking.

Crush resistance and flexibility.

Special jacket material ensures excellent flame-retardant performance. The following measures are taken to ensure the cable watertight:

PSP enhancing moisture-proof.

Steel wire used as the central strength member. Loose tube filling compound.

100% cable core filling.



Standards

EFON MGTS cable complies with Standard YD/T 901 as well as MT386; and passes

MA certification.

MGTS Outdoor Fiber Optic Cable Stranded Loose Tube Mining Flame-Retardant Jacket 0

Optical Characteristics                                                                                                   JET

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm     ≤3.0 dB/km ≤3.3 dB/km
1300 nm     ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm     ≥500 MHz·km ≥200 Mhz·km
1300 nm     ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture     0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm


Structure and Technical Specifications

Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max Fiber Per Tube Max No. of Tubes+Fillers  Allowable Tensile Load(N) Allowable Crush Resistance(N/100mm)
Short Term Long Term Short Term Long Term
2~24 9.5 112 6 6 600 1500 300 1000
26~36 10.0 131 6 6 1000 3000 300 1000
38~72 12.4 204 12 6 1000 3000 300 1000
74~96 13.8 255 12 8 1000 3000 300 1000
98~120 15.6 284 12 10 1000 3000 300 1000
122~144 17.4 340 12 12 1000 3000 300 1000

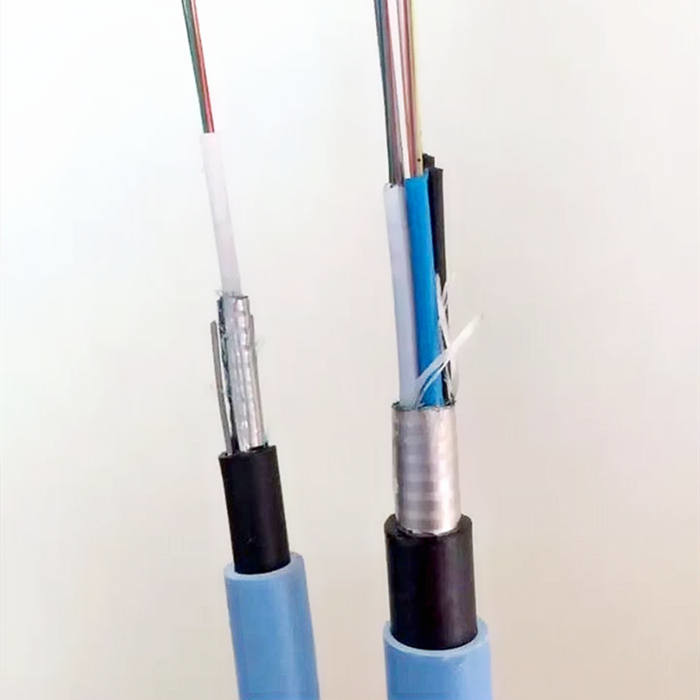

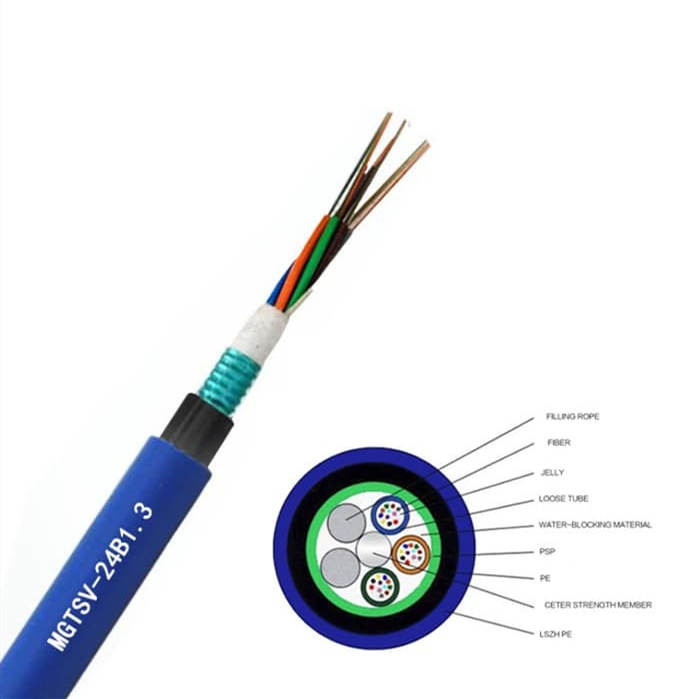

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.MGTS Outdoor Fiber Optic Cable Stranded Loose Tube Mining Flame-Retardant Jacket 1MGTS Outdoor Fiber Optic Cable Stranded Loose Tube Mining Flame-Retardant Jacket 2MGTS Outdoor Fiber Optic Cable Stranded Loose Tube Mining Flame-Retardant Jacket 3



If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.



If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
