Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CPR. CE. ROHS. |
| Model Number: | 2C RVV Power Cable |
| Minimum Order Quantity: | 10km |
| Price: | According to SPEC |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Delivery Time: | 20days after deposit |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Inner Conductor: | CU | Cores: | 2 Cores |
|---|---|---|---|
| Jacket: | PVC | Application: | Power Support |
| Packing: | 500M Reel | Operating Voltage: | 80V |
| High Light: | microphone wire cable,mic audio cable |
||

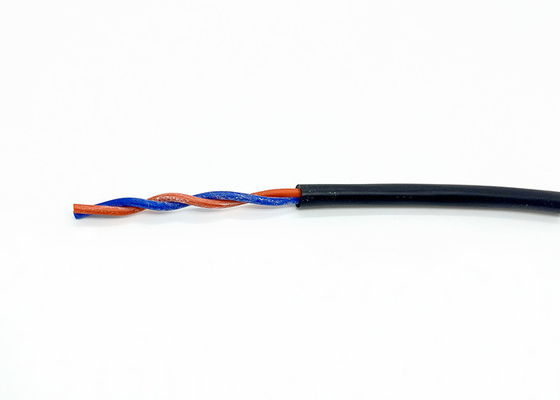

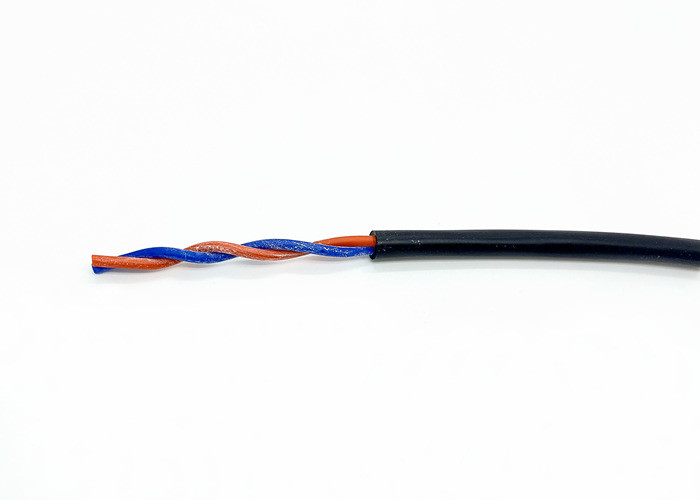

Application: RVV wires and cables are two cores or more cores RV wires plus a sheath. RVV cable is the most commonly used cable in the weak current system household appliances and electronic Tools. It is mainly used under 30V DC or AC power.
Operating temptature: the permitted long term operating temprature: -10℃-60℃.
| Type | NO of Conductor | Conductor | Insulator | Jacket | 70C min insulation resistance(MΩkm) | |||
| Sectional Area (mm2) | Construction (NO/mm) | Thickness (mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |||
| 227 IEC53 (RVV) -300/500V | 2 | 0.75 | 30/0.18 | 0.60 | 2.35 | 0.80 | 6.30 | 0.011 |
| 0.75 | 30/0.18 | 0.60 | 2.35 | 0.80 | 4.00 x6.30 | 0.011 | ||
| 1.00 | 40/0.18 | 0.60 | 2.35 | 0.80 | 6.80 | 0.010 | ||
| 1.50 | 30/0.254 | 0.70 | 3.00 | 0.80 | 7.80 | 0.010 | ||
| 2.50 | 50/0.251 | 0.80 | 3.65 | 1.00 | 9.30 | 0.009 | ||
| 3 | 0.75 | 30/0.18 | 0.60 | 2.35 | 0.80 | 6.70 | 0.011 | |
| 1.00 | 40/0.18 | 0.60 | 2.55 | 0.80 | 7.10 | 0.010 | ||
| 1.50 | 30/0.254 | 0.70 | 3.00 | 0.90 | 8.30 | 0.010 | ||
| 2.50 | 50/0.254 | 0.80 | 3.65 | 1.10 | 10.00 | 0.009 | ||
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
