Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CPR. |
| Model Number: | KX7+2C CCTV Cable |
| Minimum Order Quantity: | 10km |
| Price: | FOB Shanghai Price: 80.0USD/500m |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Delivery Time: | 20days after deposit |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Type: | Kx7+2Alim Coaxial With Power CCTV Cable | Inner Connector: | 7*0.2mm Bare Copper |
|---|---|---|---|
| Conductor Type: | Stranded | Insulation: | Solid PE |
| Jacket: | Green PVC 9.0MM | Packing: | 500M Wooden Drum Or Customized |
| Application: | Video Wire For Camera | ||
| High Light: | cctv lan cable,bulk network cable |
||
Kx7+2C Camera Wire Coaxial With Power CCTV Cable 7/9*0.19BC Algeria Market
RG Series KX6A+2C/ KX7+2Alim Siamese Coaxial cable:

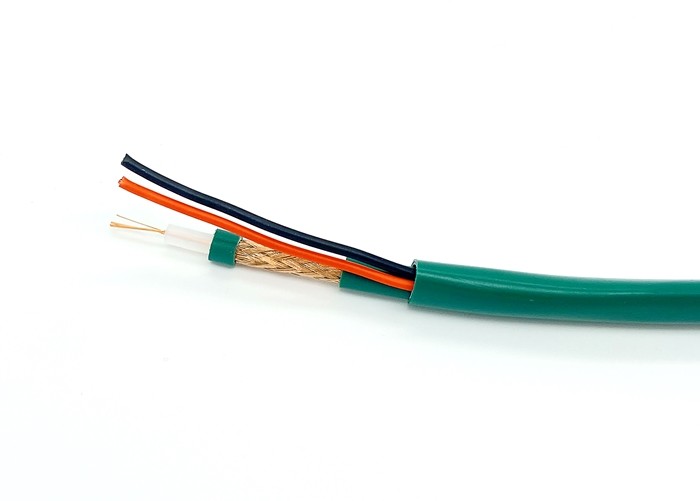

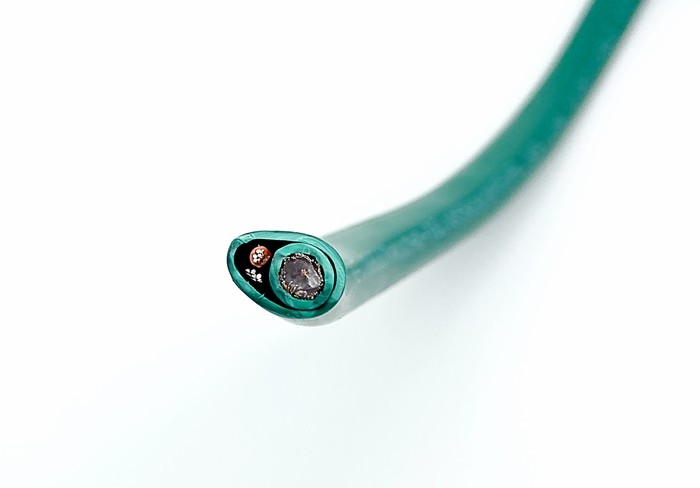

Spec: 7/9*0.19mm BC+3.57mm SPE+AL Foil Bonded+128#x0.12mm CCA+6.0mm PVC + 2C*(24*0.2CCA+1.8PVC)+9.0PVC Green

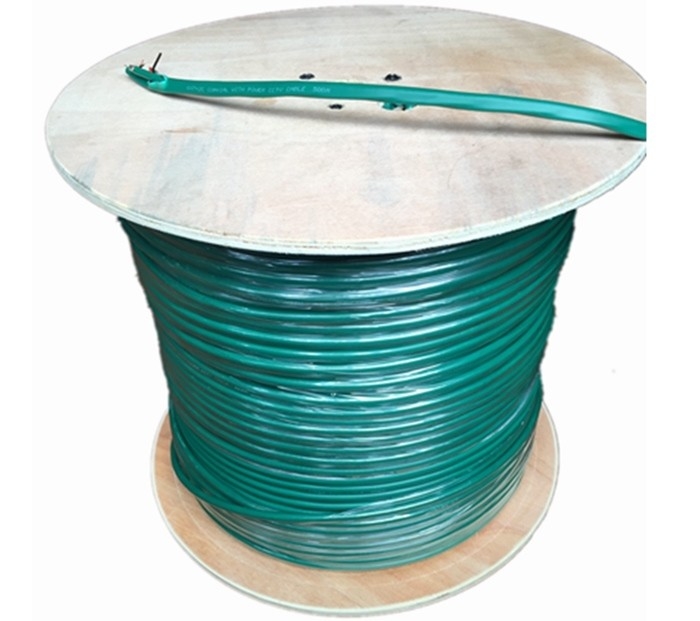

Packing: 500m/Wooden Drum, Common
KX7 9*0.19 Coaxial cable
KX6 Coaxial Cables are generally used in video transmission, CCTV, Digital TV, Satellite TV system abd HFC broadband networks.
Advanced Features:
Presented below are key features of RG Series which are widely represented in different versions within this catalogue.
All of these products have some common features including:
-- Closed cell Foamed PE Dielectric
-- Attenuation Swept from 5MHz-2GHz
-- High screening effectiveness, also know as Class A+/ Class A++ Screen Attenuation(AS) according to EN50117 SPECIFICATIONS
-- Long-lasting stability of signal attenuation thanks to physical gas injected foam PE dielectric technology(skin-foam-skin)
-- Coaxial cables with PVC Jacket, flexible thermo-plastic material commonly used on general purpose coaxial products. Temprature rating:-40℃ to 80℃
-- Coaxial cables with PE outer sheath, strong enough to protect the coaxial core from the environment, must be used for outdoor / underground/ direct burial installations. Temprature rating:-55℃ to 85℃
-- Characteristics of LSZH: flame and fire retartant, low smoke and fume emission, zero halogen and UV resistant
-- Series of Anti-corrosion protection materials are available

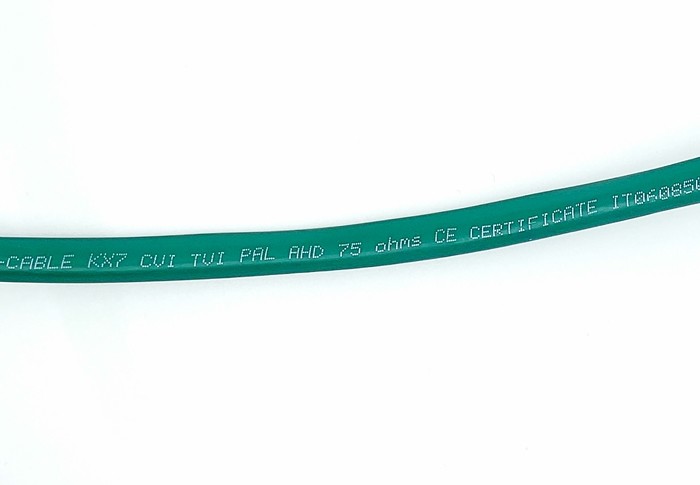

-- Cable marked Footage/ Meters
| Construction | Material | Diameter(mm) |
| Inner Conductor | BC | 7/9x0.2 |
| Dielectric | Solid PE | 3.57 |
| First Shield | Bonded AL Foil | 18 |
| Second Shield | AL Braid | 90% |
| Outer Jacket | PVC | 6.0; 9.0 |
| Power Wire | CCA | 0.2 |
| PE | 1.8 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
| Return Loss 5-1000MHz(dB) | ≥22 |
| Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.6 | 1.9 |
| 55 | 1.6 | 5.2 |
| 187 | 2.8 | 9.3 |
| 211 | 3.0 | 10.0 |
| 400 | 4.1 | 13.5 |
| 500 | 4.6 | 15.0 |
| 750 | 5.6 | 18.5 |
| 860 | 6.1 | 20.0 |
| 1000 | 6.6 | 21.5 |
| 1500 | 8.2 | 26.8 |
| 1800 | 8.8 | 28.9 |
| 2200 | 9.8 | 32.2 |
| 3000 | 11.5 | 37.6 |

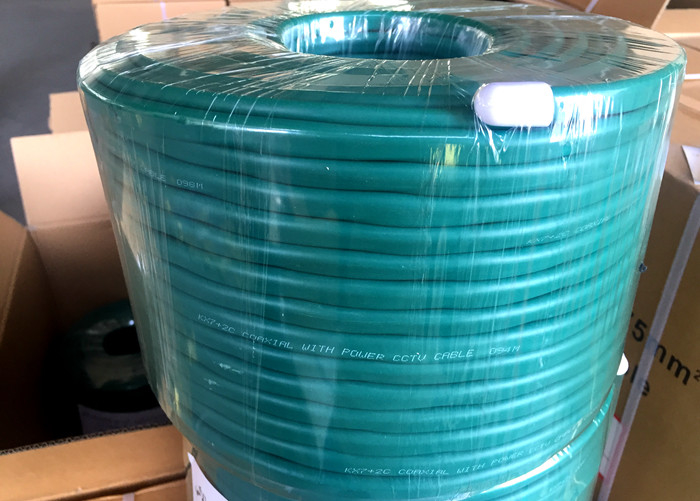

KX7+2C Coaxial Cable 100M/ 300M/ 500M Packing
What are CCTV cable types?
Generally, CCTV cable systems come with a number of tools and components. To the layman, it’s rather too confusing. Therefore, it’s important to understand the basics such as what a CCTV is and why opting for the right cable matters.
CCTV or Closed-Circuit Television is defined as the use of video cameras to transmit signal to a particular place. CCTV is used for mostly surveillance purposes bearing crime preventing, safety, monitoring and crime solving in mind. For this purpose, CCTV usually requires cables that would enhance the quality of video signals. For wired surveillance, there are plenty of other options that help in the transmission of better video signals among other functions. Take a look at the functions of each cable and how they are important for CCTVs.
Plug and Play / Video Power Cables:
Considered to be a cheaper option, PnP cables are quite straightforward. The CCTV’s power and video runs on one cable with the BNC (initialism of Bayonet Neill-Concelman) connectors present on each end. PnPs are ideal for situations that need quick fixing. It does not take a long time to fix and use, and is considered to be quite user-friendly.
Siamese Cables:
Siamese Cables are usually those that have certain power wires attached to them. While they are considered to be quite complicated to handle, it does, however, provide transmission of both data and power at the same time to security cameras. A combination of two cables, it is made up of RG59 and 18/2 cable, the former for video transmission quality and the latter for power purposes. In other words, since RG59 is a coaxial cable, it helps in running the video to the security camera, whereas 18/2 cable helps in the AC/DC power to the camera.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
