Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE/ ROHS
Model Number: GYFTC8YS
Payment & Shipping Terms
Minimum Order Quantity: 10km
Price: 100-300usd
Packaging Details: 2000m/ wooden drum
Delivery Time: 15days
Supply Ability: 1000km/ month
Type: |
GYFTC8S |
Fiber: |
SM B1.3 G652D Single Mode |
Application: |
Aerial/ Lashed HTTX, Backbone |
Structure: |
Figure 8 |
Messenger: |
Stranding Steel Wire |
Centre Strengthen Menber: |
CSM-FRP |
Strengthen Tape: |
Copolymer Coated Steel Tape |
Length: |
1000m, 2000m, 3000m |
Type: |
GYFTC8S |
Fiber: |
SM B1.3 G652D Single Mode |
Application: |
Aerial/ Lashed HTTX, Backbone |
Structure: |
Figure 8 |
Messenger: |
Stranding Steel Wire |
Centre Strengthen Menber: |
CSM-FRP |
Strengthen Tape: |
Copolymer Coated Steel Tape |
Length: |
1000m, 2000m, 3000m |

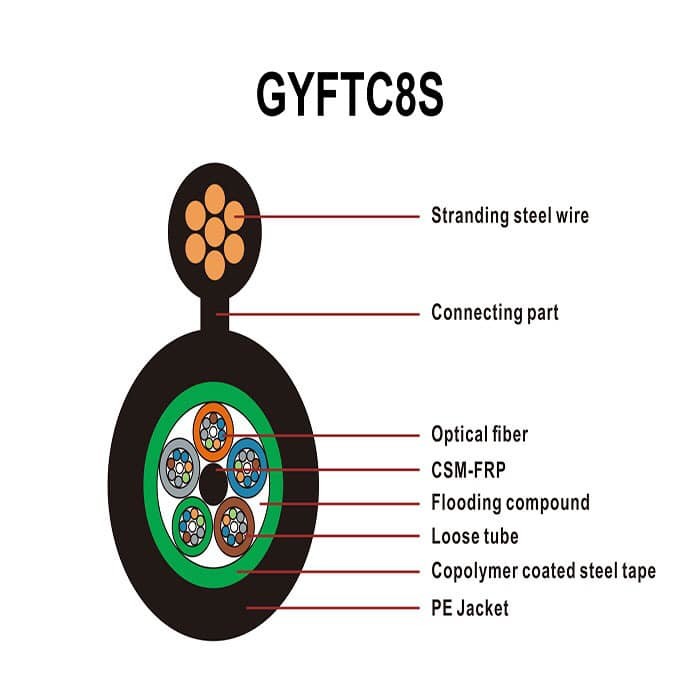

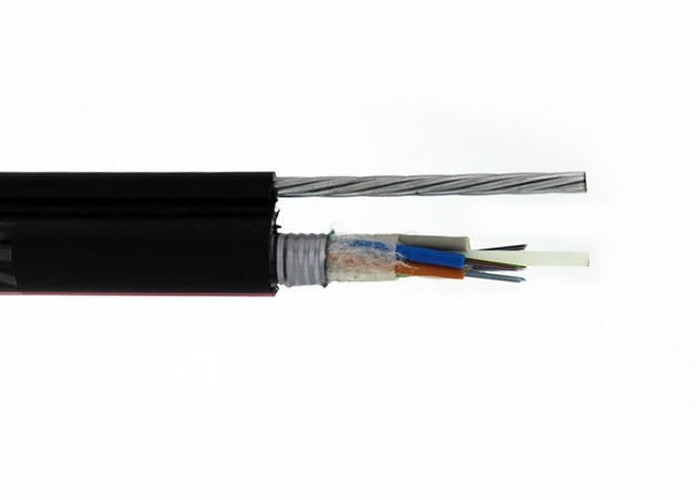

GYFTC8S Outdoor Cable
Aerial Fig8 Armored Loose Tube Single Jacket Optical Fiber Cable

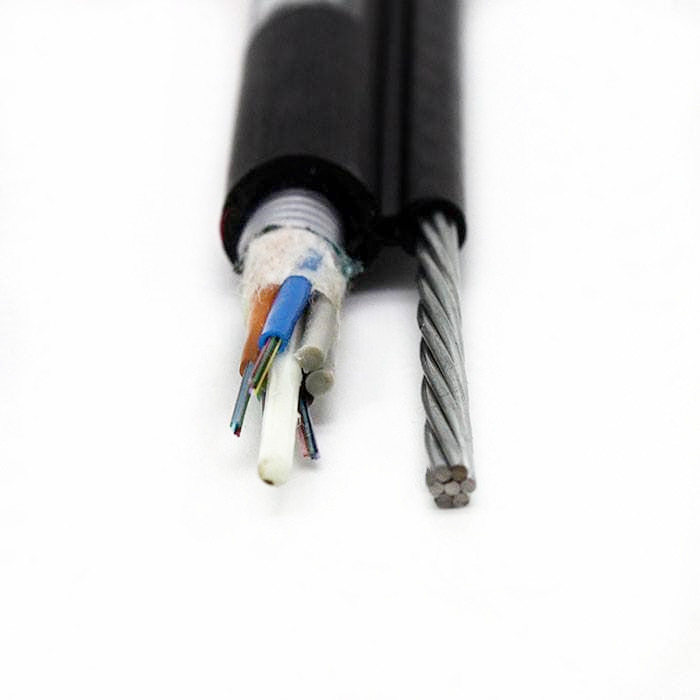

Description
ALL-Dielectric Aerial Fig8 Loose Tube cable is designed especially for aerial
installations. With fiber counts up to 288 and S-Z strand designs.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D
Features
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design.
Self-supporting Figure 8 design.
Applications
Aerial/Lashed.
Backbone. Access.
Option
FRP or Steel central strength member can be choosed.
Different size of steel strand wire can be choosed to reach different mid-span.
Dry core structure available for ease of handling.
Flame-retardant jacket can be provided.
Optical Characteristics GYTS
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |||||
| Attenuation(+20℃) | 850 nm | ≤3.0 dB/km | ≤3.3 dB/km | ||||||
| 1300 nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||||
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||||
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | |||||||
| Bandwidth | 850 nm | ≥500 MHz·km | ≥200 Mhz·km | ||||||
| 1300 nm | ≥500 MHz·km | ≥500 Mhz·km | |||||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||||||
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | |||||||

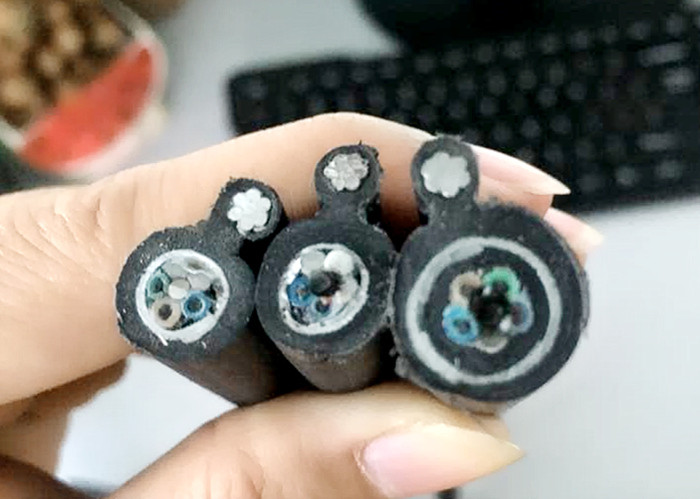

Structure and Technical Specifications
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 9.4x17.4 | 180 | 6 | 6 | 4000 | 2000 | 1000 | 300 |
| 32~36 | 10.0x18.0 | 180 | 12 | 6 | 4000 | 2000 | 1000 | 300 |
| 38~60 | 10.6x18.6 | 180 | 12 | 8 | 4000 | 2000 | 1000 | 300 |
| 62~72 | 10.9x19.0 | 215 | 12 | 10 | 4000 | 2000 | 1000 | 300 |
| ＞72 | Available upon customer·s request | 4000 | 2000 | 1000 | 300 | |||
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
