Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CE/ ROHS |
| Model Number: | GJYFJH-Ⅱ |
| Minimum Order Quantity: | 10km |
| Price: | 100-300usd |
| Packaging Details: | 2000m/ wooden drum |
| Delivery Time: | 15days |
| Supply Ability: | 1000km/ month |
| Type: | GJYFJH-Ⅱ | Name: | Indoor Fiber Optic Cable |
|---|---|---|---|
| Application: | Networking, CATV, HTTP, HTTS | Fiber: | Multi Mold And Single |
| High Light: | fiber optic wire,ftth optical fiber cable |
||

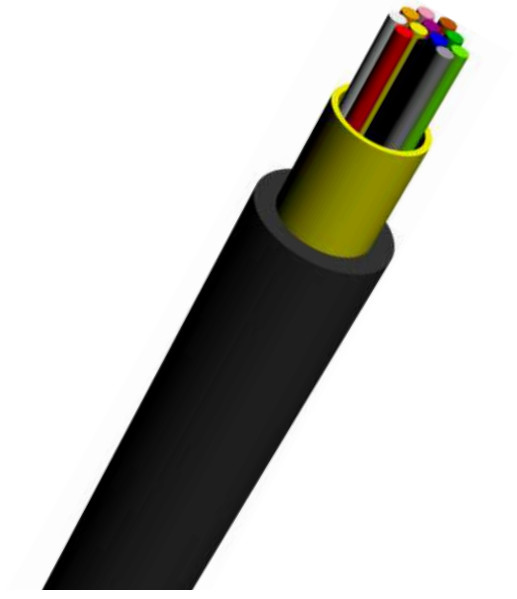

GJYFJH-Ⅱ Indoor Fiber Optic Cable Multi Mold and Single Mold for Access Network
Internal/External Tight Buffered Distribution Cable
Description
Multi-Purpose Tight Buffered Distribution cable provides a cost effective solution to all internal/ external datacomms cabling requirements, particularly where on-site direct connections are the preferred ermination technique.

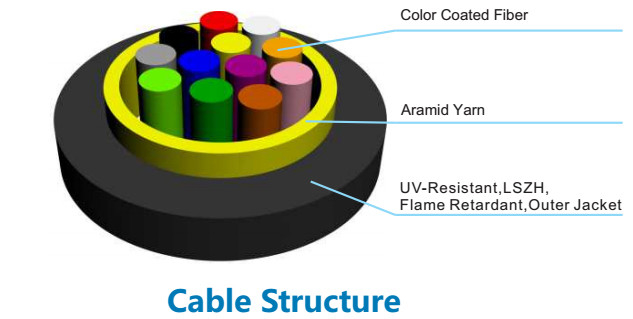

The cable consists of individually colour coded 900µm secondary coated fibers, embedded in an E-glass yarn, and oversheathed with a single Low Smoke Zero Halogen (LSZH) outer jacket. The jacket is flame retardant, UV stabilised and extremely resistant to the ingress of moisture. A choice of multi mode and single mode fiber types and specifications are offered, with fiber counts from two to twenty four in the standard range.Their small diameter, lightweight and excellent environmental performance makes these cables ideal for installation in a broad range of network applications including LAN backbones, networks with mixed indoor and outdoor cabling, outdoor in flooded ducts and any premises distribution system.
Standards
-ISO/IEC 11801 : 2002 -ANSI/TIA/EIA-568-B.3, ANSI/TIA-568-C.3 -Telcordia(Bellcore)GR-20-C0RE(GR-409-C0RE -ANSI/ICEA 696, ANSI/ICEA 596
-ITU-T G.651 (Multi mode) -ITU-T G.652D (Single mode) -IEC 60332-3, IEC60332-1 -IEC 61034-2, IEC60754-2
-IEC 60793, IEC60794-1-2, EIA-455 -EN 50173-1, TIS 2165-2548 -RoHS Compliant
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D
Characteristics
High performance multi mode (0M1, 0M2, 0M3 and 0M4) and single mode (0S2 or G.652D) fiber optic cable.
Fiber colors identification comply to TIA/EIA-598-C and EIA-359-A. Up to 24 core.
Applications
Used in access network or as access cable from outdoor to indoor in customer premises network.
Used as access building cable in premises distribution system, especially used from outdoor to indoor inaerial access cabling.
Optical Characteristics
| Single mode | Multi mode 850/1300 nm | ||||
| Optical Transmission Performance | 1310/1383/1550/1625 nm | 62.5/125 | 50/125 | 50/125 | 50/125 |
| 9/125 µm (OS2) | µm (0M1) | µm (0M2) | µm (0M3) | µm (0M4) | |
| Max. Attenuation (dB/km) | 0.36/0.36/0.25/0.35 | 3.0/0.8 | 2.7/0.8 | 2.7/0.8 | 2.7/0.8 |
| Typ. Attenuation (dB/km) | 0.34/0.32/0.21 /0.24 | 2.7/0.6 | 2.5/0.7 | 2.3/0.6 | 2.3/0.6 |
| Bandwidth (MHz/km) | N /A | 200 /600 | 500 / 500 | 1500/ 500 | 3500/500 |
| 850 nm Laser bandwidth (MHz/km) | N /A | N /A | N /A | 2000 | 4000 |
| Numerical Aparture | 0.13 ± 0.01 | 0.275 ± 0.015 | 0.200 ± 0.015 | 0.200 ± 0.015 | 0.200 ± 0.015 |
Structure and Technical Specifications
| Fiber | Cable | Cable Weight(Ref) | Tensile Strength | ||
| Diameter | (kg/km) | (N/100mm) | |||
| Count | (mm) | PVC Jacket | LSZH Jacket | Short Term | Long Term |
| 12 | 3.0±0.2 | 4.8 | 6.3 | 100 | 30 |
| 24 | 3.8±0.2 | 6.5 | 8.0 | 150 | 50 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
