Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CPR
Model Number: CAT5E Lan Cable
Payment & Shipping Terms
Minimum Order Quantity: 10km
Price: FOB Shanghai Price: 43.00 USD/305m
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Type: |
CAT5E Cable |
Conductor: |
4 Pair Bare Copper |
OEM Produce: |
Yes |
Application: |
Ethernet Wire |
Spec: |
24AWG CU |
Type: |
CAT5E Cable |
Conductor: |
4 Pair Bare Copper |
OEM Produce: |
Yes |
Application: |
Ethernet Wire |
Spec: |
24AWG CU |

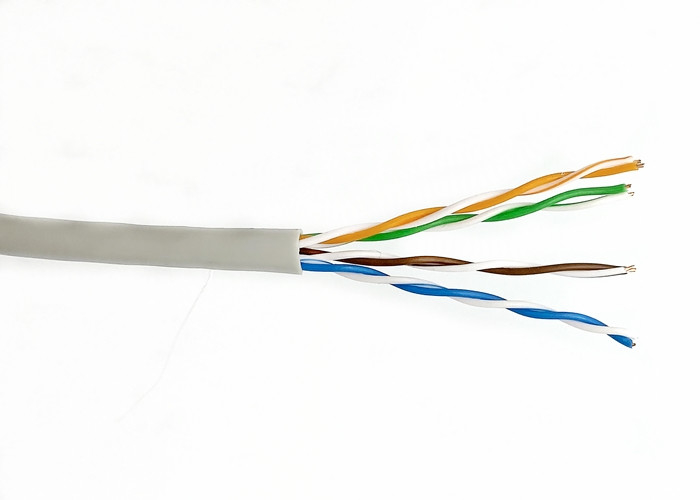

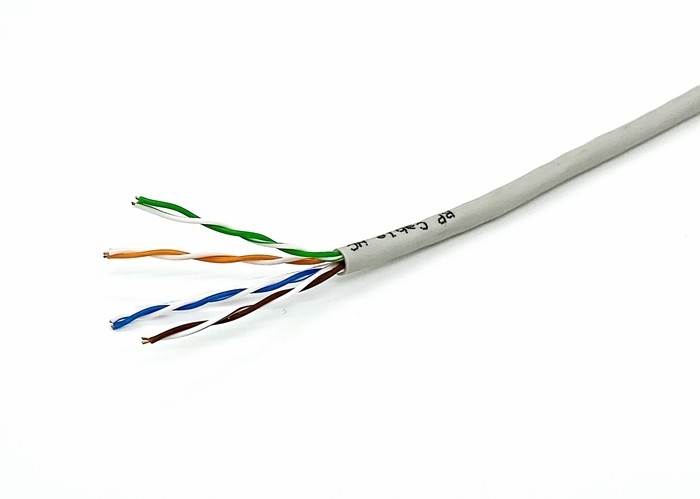

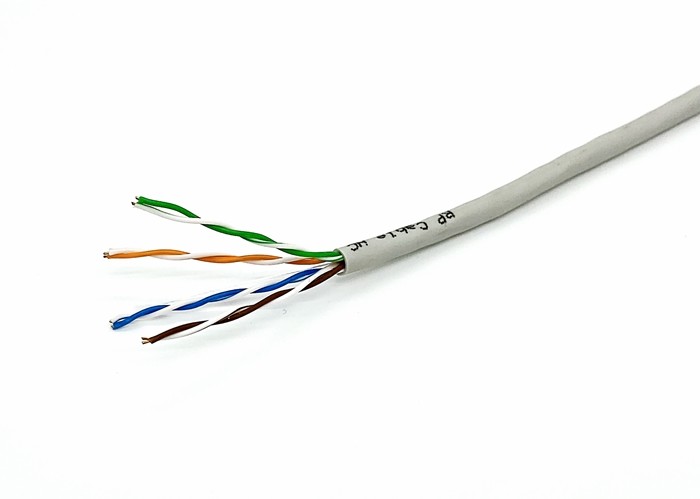

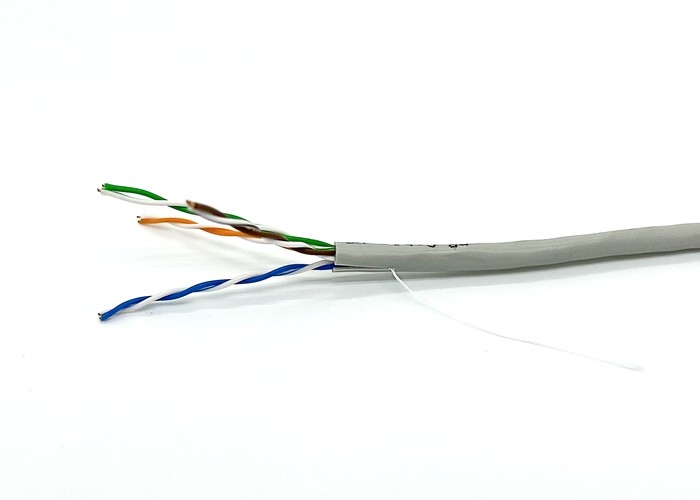

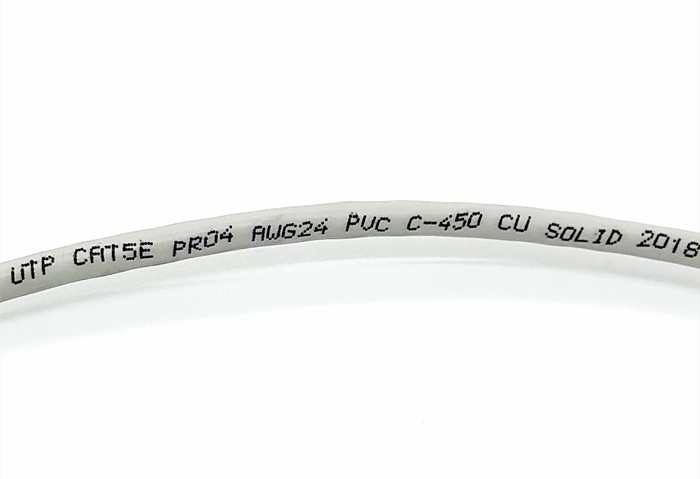

Unshielded CAT5E Twisted Lan Cable PR04 0.48 Pure Copper Gray PVC Computer Wire
24AWG UTP/ FTP CAT5E 4 Pair Bare Copper Network Lan Cable Ethernet Wire
CAT5E 4 Pair 0.5mm Copper
| UTP CAT5E | |||||
| Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring | |||||
| Basic Construction | Material | Diameter (mm) | |||
| Conductor | BC | 24AWG | |||
| Insulation | PE | 0.9 | |||
| Jacket | PVC | 5.1 | |||
| BASIC CHARACTERISTICS | |||||
| Temperature Rating | -20℃ to 60℃ | ||||
| Dielectric Breakdown | 2500V | ||||
| DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
| Characteristics Impedance | 100Ω | ||||
| Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair | |
| (MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT | |
| (dB/100m) | (dB/100m) | ||||
| 0.77 | 1.8 | NA | 70 | 69 | |
| 1 | 2 | 20 | 68.3 | 66.8 | |
| 4 | 4 | 23 | 59.3 | 54.7 | |
| 8 | 5.8 | 24.5 | 54.8 | 48.7 | |
| 10 | 6.5 | 25 | 53.3 | 46.8 | |
| 16 | 8.2 | 25 | 50.3 | 42.9 | |
| 20 | 9.2 | 25 | 48.8 | 40.7 | |
| 25 | 10.4 | 24.3 | 47.3 | 38.8 | |
| 31.25 | 11.7 | 23.6 | 45.9 | 36.9 | |
| 62.5 | 17 | 21.5 | 41.4 | 30.8 | |
| 100 | 22 | 20.1 | 38.3 | 26.8 | |
| 155 | 28.1 | 18.8 | 35.5 | 22.9 | |
| 200 | 32.4 | 18 | 33.8 | 20.7 | |
| 300 | 41 | 16.8 | 32.3 | 17.2 | |
| 350 | 44.9 | 16.3 | 30.2 | 15.9 | |
We know Category 5 and Category 6 cable can transfer signal approxmitely 100 meters, even Category 6 standard network cable, it can only up to 120 meters. Almost all network cable in market can not exceed 90 meters in engineering construction.
How to increase the transmission distance to 300 or more than 300 meters?
A lan cable switch (relay device) can be installed between the two pieces cables. In theory, we can add up to four switches during cctv installation. If you install 4 switches to connect 5 network segments, the theoretical maximum transmission distance can reach 500m. The switch has the function of amplifying the signal, and the network signal will be strengthened.
However, the signal may be unstable after the third-stage amplification of the switch. We suggest to add no more than two lan cable switches to solve the transmission problem within 300 meters.

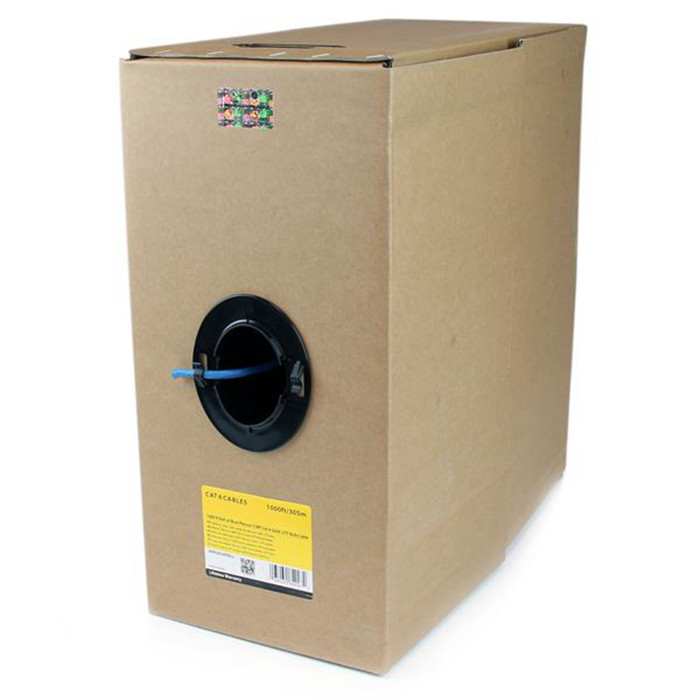

EASY PULL BOX 1000FT/ 305M PACKAGING
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
