Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE. ROHS2.0.
Model Number: CCA Wire
Payment & Shipping Terms
Minimum Order Quantity: 1000KG
Price: 1.5-2.5usd/kg

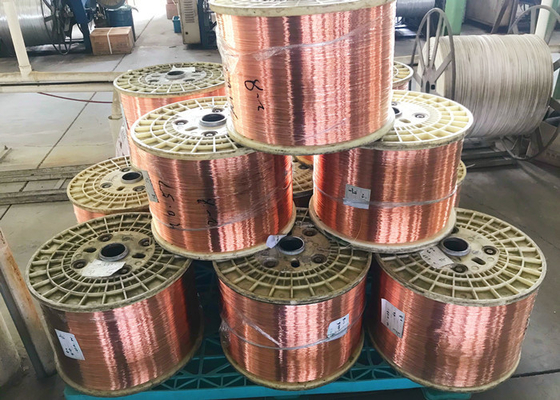

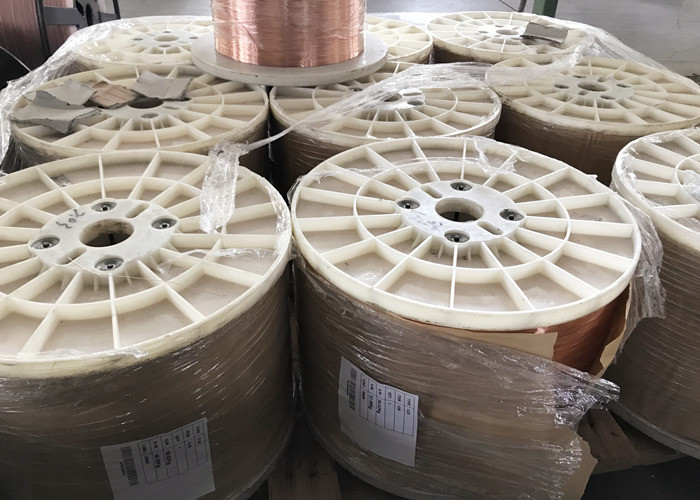

Packaging Details: 630 steel drum
Delivery Time: 10days
Payment Terms: TT. LC
Supply Ability: 5000Kg/ Day
Diameter: |
0.12mm-2.0mm, Customized |
Application: |
CCTV Cable Raw Material |
Packing: |

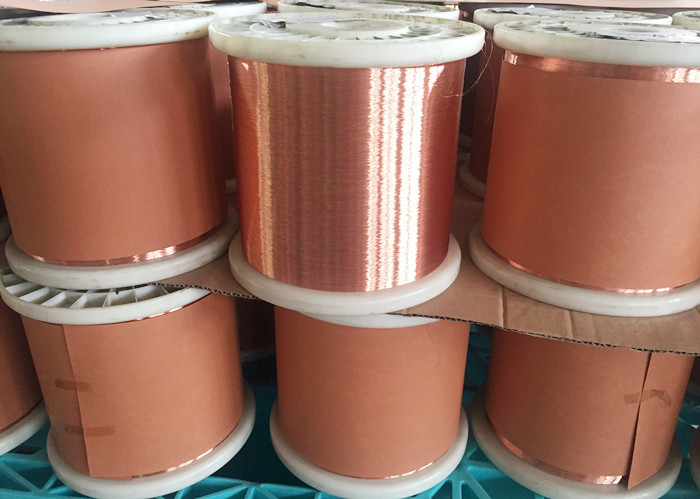

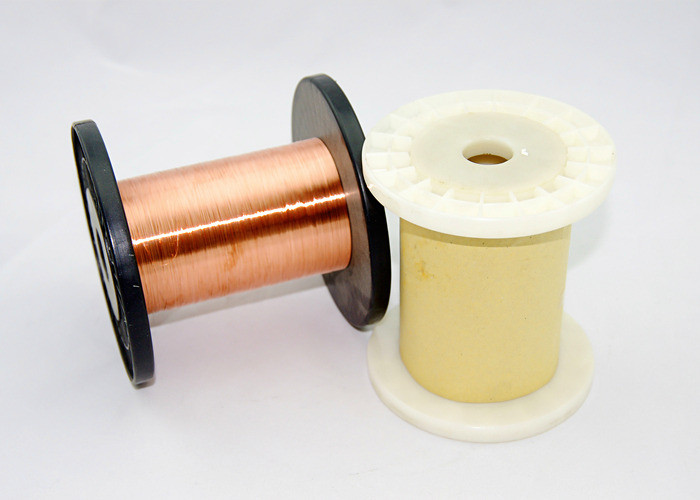

Plastic Spool/ Carton |
Density: |
2.9 |
ELONGATION AT BREAK(%): |
≥8 |
TENSILE STRENGTH (MPa): |
≥220 |
Diameter: |
0.12mm-2.0mm, Customized |
Application: |
CCTV Cable Raw Material |
Packing: |
Plastic Spool/ Carton |
Density: |
2.9 |
ELONGATION AT BREAK(%): |
≥8 |
TENSILE STRENGTH (MPa): |
≥220 |
Advantage:
1. Given the same weight and diameter, outer wire measures 2.6-3.2 times longer than copper wire, which means 1 Ton pure copper wire should offer 2.6Ton CCA WIRE, so reduce the raw material cost much for production factory.
2. According to pure copper wire , the impossibility to seperate copper from CCA wire, so it keeps thieves away.
3. CCA wire is more malleable than copper wire, unlike aluminum that would generate the insulation oxide, easier processing and good conductive properties.
4. CCA wire is light weight, easy to transport and installation and construction, to reduce labor costs.
5. CCA wire has signification social benefits, it can save a lot of copper raw resources.
CCA wire widely used in Cable TV signal and large volume communications net work signal transmission, control signal cable, welding cable and so on...
1. Choice conductor material for cable TV coaxial cable;
2. 50Ohm Radio frequence (RF) cable;
3. Flexible RF coaxial cable inner conductor material;
4. Computer cable and other data cable inner conductor material;
5. Superfine coaxial cable inner conductor material
1. Choice conductor material for computer;
2. Mobile communications wire;
3. Coil or column used in Aeronautics and Astronautics or Military Devices.
| Technical Characteristics | CCA WIRE | ||||
| Clad Type | Plated type | ||||
| 10H | 10A | 15H | 15A | ||
| Size range(mm) | 0.15-8.0 | 0.15-8.0 | 0.08-8.0 | 0.08-8.0 | 0.10-6.0 |
| Copper content(%by weight) | 25-31 | 25-31 | 32-40 | 32-40 | 6-15 |
| Tensile Strength(Mpa) | ≥152 | 110-172 | ≥152 | 110-172 | 90-120 |
| Elongation(%) | 1 | 5 | 1 | 5 | 5 |
| Conductivity(%) | 62 | 62 | 64 | 64 | 62 |
| DC resistivity(Ω.mm²/m) | 0.02743 | 0.02743 | 0.02679 | 0.02679 | 0.02743 |
| Density(g/cm³) | 3.32 | 3.32 | 3.63 | 3.63 | 2.85 |
H: Hard-Drawn; a: Annealed
| APPEARANCE |
SIZE (mm |
TOLERANCE (mm) |
ELONGATION AT BREAK(%) |
TENSILE STRENGTH (MPa) |
|
| STANDARD |
THE SURFACE OF THE COATING SHOULD BE SMOOTH AND ROUND, CONTINUOUS, NO DENTS, CRACKS, BARE AND OXIDATIVE DISCOLORATIO |
0.115 | ±0.002 | ≥8 | ≥220 |
| SAMPLE 1 | PASS | 0.115 | 8.6 | 241 | |
| SAMPLE 2 | PASS | 0.115 | 9.4 | 236 | |
| SAMPLE 3 | PASS | 0.116 | 8.5 | 253 | |
| INDIVIDUAL CONCLUSION | PASS | PASS | PASS | PASS | |
| FINAL CONCLUSION | PASS | PASS | PASS | PASS | |
Productis can be customized according to special requirements.
