CATV Telecom RG11U Cable 60% TC Braiding LSZH FR Jacket 1.63 Copper

Product Details

Place of Origin: Hangzhou, China

Brand Name: OEM Produce

Certification: CPR. CE. ROHS.

Model Number: RG11U Tril

Payment & Shipping Terms

Minimum Order Quantity: 10km

Price: FOB Shanghai Price: 170.00 USD/305m

Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel

Delivery Time: 20days after deposit

Payment Terms: TT. LC

Supply Ability: 5000km/ Month

Get Best Price
High Light:

75 ohm bnc cable

,

satellite coax cable

Type:
RG11U Tril
Conductors:
1.63 Copper
Shielth:
AL Foil+ Braiding+AL Foil
Outer Jacket:
LZSH
Application:
CATV Telecom Wire
Packing:

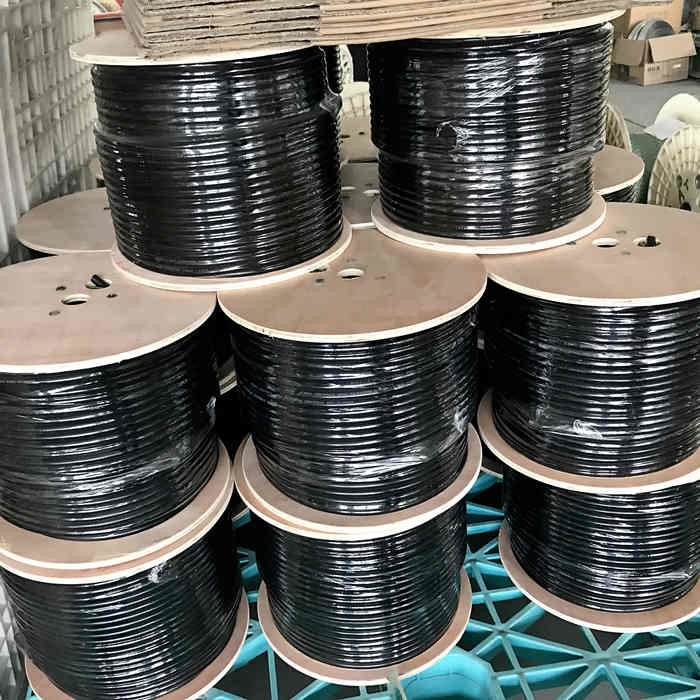

305Meter Wooden Drum
Type:
RG11U Tril
Conductors:
1.63 Copper
Shielth:
AL Foil+ Braiding+AL Foil
Outer Jacket:
LZSH
Application:
CATV Telecom Wire
Packing:
305Meter Wooden Drum
CATV Telecom RG11U Cable 60% TC Braiding LSZH FR Jacket 1.63 Copper

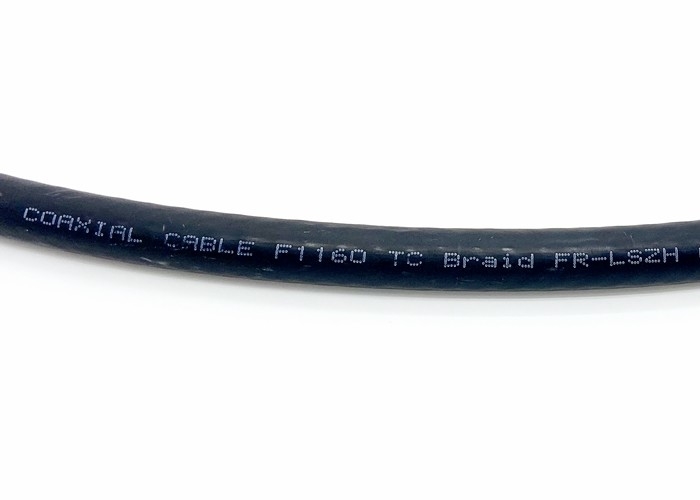

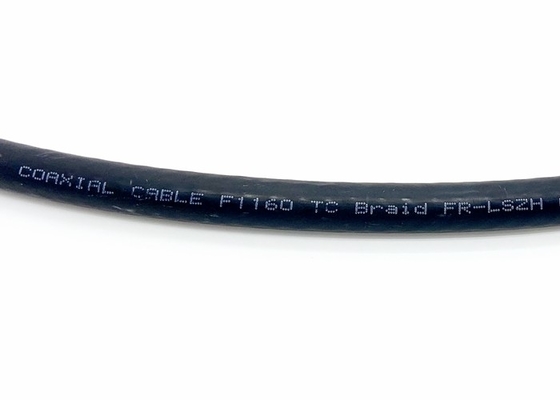

LSZH F1160(RG11) CATV Wire 60% TC Braiding Full copper 75 Ohm Coaxial Cable

RG Series Coaxial cable

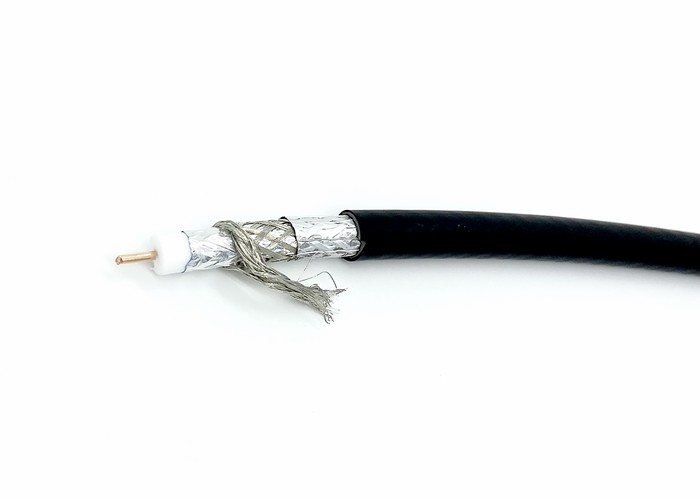

RG11: 1.63mm Cu+7.25mm FPE+AL Foil+16x6x0.16mm TC (60%) +10.10mm LSZH

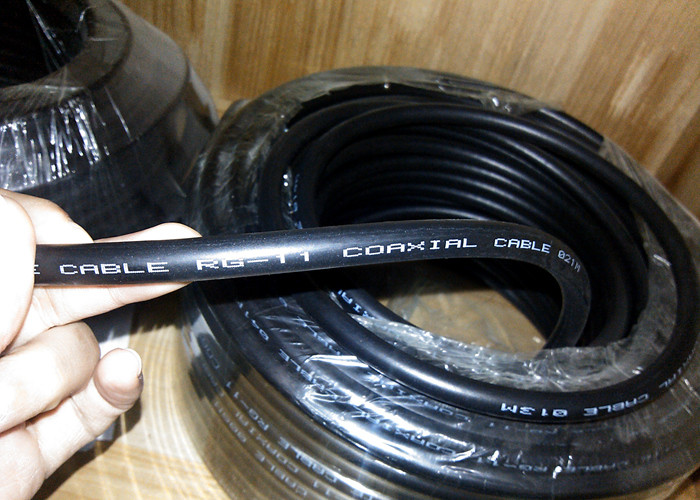

Packing: 305m/wooden drum



RG11 Coaxial cable

RG11 Coaxial Cables are generally used in video transmission, CCTV, Digital TV, Satellite TV system abd HFC broadband networks.

Advanced Features:

Presented below are key features of RG Series which are widely represented in different versions within this catalogue.

All of these products have some common features including:

--Closed cell Foamed PE Dielectric

--Attenuation Swept from 5MHz-2GHz

--High screening effectiveness, also know as Class A+/ Class A++ Screen Attenuation(AS) according to EN50117 SPECIFICATIONS

--Long-lasting stability of signal attenuation thanks to physical gas injected foam PE dielectric technology(skin-foam-skin)

--Coaxial cables with PVC Jacket, flexible thermo-plastic material commonly used on general purpose coaxial products. Temprature rating:-40℃ to 80℃

--Coaxial cables with PE outer sheath, strong enough to protect the coaxial core from the environment, must be used for outdoor / underground/ direct burial installations. Temprature rating:-55℃ to 85℃

--Characteristics of LSZH: flame and fire retartant, low smoke and fume emission, zero halogen and UV resistant

--Series of Anti-corrosion protection materials are available

--Cable marked Footage/ Meters



Construction Material      Diameter(mm)
Inner Conductor    BC 1.63
Dielectric    Foam PE         7.25
First Shield       Bonded AL Foil       25
Second Shield      TC Braid     60%
Outer Jacket    LSZH    10.1

Electrical Characteristics

Impedance (Ω)       75±3
Capacitance (pF/m)    52±2
Velocity of Propagation(﹪)   85.0

Return Loss   5-1000MHz(dB)

≥22

Return Loss  1000-3000MHz(dB)

≥20



Attenuation(@20℃)

Frequency (MHZ)   Min Attenuation (dB/100ft)   Max Attenuation (dB/100m)
 5 0.4 1.3
55 1.0 3.2
187 1.7 5.7
211 1.9 6.2
400 2.6 8.5
500 2.9 9.5
750 3.6 11.9
860 4.0 13.1
1000 4.3 14.3
1500 5.1 16.8
1800 5.7 18.6
2200 6.3 20.7
3000 7.6 24.9



TYPE

Conductor

Insulation

Braid Shield

Jacket

Nom.

Imped

Ohm

Nom.

Capa.

pF/m

Attenuation

100MHz

db/Km



No./mm

MTRL

mm

MTRL

No./mm No./mm

MTRL

O.D

mm

MTRL


RG-6/U 1/1.02 BC 4.57 FPE AF 95% TC 6.9 PVC 75 55 94
RG-8/U 7/0.9 BC 7.24 FPE 95% - BC 10.3 PVC 52 85 64
RG-8/U 7/0.724 BC 7.24 PE 95% - BC 10.3 PVC 52 97 70
RG-8/X 19/0.287 BC 3.94 FPE 95% - BC 6.15 PVC 52 85 121
RG-11/U 1/1.63 BC 7.24 FPE DF 75% TC 10.3 PVC 75 57 49
RG-14/U 1/2.591 BC 9.4 PE 97% 97% BCBC 13.8 PVC 52 97 50
RG-58/U 1/0.8 BC 2.9 PE 95% - TC 5.0 PVC 50 94 140
RG-58A /U 19/0.203 TC 2.9 FPE AF 97% TC 5.03 PVC 50 86 131
RG-58A /U 19/0.18 TC 2.95 PE 95% - TC 4.95 PVC 50 102 160
RG-58C /U 19/0.18 TC 2.95 PE 95% - TC 4.95 NC-PVC 50 102 160
RG-59/U 7/0.254 BC 3.71 FPE 95% - BC 6.15 PVC 75 57 98
RG-59/U 1/0.81 BC 3.71 FPE AF 85% BC 6.15 PVC 75 57 98
RG-59/U 1/0.643 CCS 3.71 PE 95% - BC 6.15 PVC 73 69 120
RG-59A /U 17/0.16 BC 3.71 PE 95% - BC 6.15 NC-PVC 73 69 120
RG-59B/U 1/0.584 CCS 3.71 PE 95% - BC 6.15 NC-PVC 75 67 120
RG-62/U 1/0.643 CCS 3.71 SSPE 95% - BC 6.15 PVC 93 44 83
RG-62A /U 1/0.643 CCS 3.71 SSPE 95% - BC 6.15 NC-PVC 93 44 83
RG-62B/U 7/0.203 CCS 3.71 SSPE 95% - BC 6.15 NC-PVC 93 44 100
RG-71B/U 1/0.643 CCS 3.71 SSPE 95% 95% TCTC 6.22 PE 93 44 84
RG-174/U 7/0.16 CCS 1.52 PE 95% - TC 2.8 PVC 50 100 260
RG-174A /U 7/0.16 CCS 1.52 PE 95% - TC 2.8 NC-PVC 50 100 260
RG-212/U 1/1.412 SC 4.7 PE 97% 97% SCSC 8.4 NC-PVC 50 98 87
RG-213/U 7/0.752 BC 7.24 PE 95% - BC 10.3 NC-PVC 50 98 70
RG-214/U 7/0.752 SC 7.24 PE 97% 97% SCSC 10.8 NC-PVC 50 98 67
RG-216/U 7/0.404 TC 7.24 PE 97% 97% BCBC 10.8 PVC 75 67 72
RG-223/U 1/0.90 SC 2.9 PE 97% 97% SCSC 5.3 NC-PVC 50 98 120
