Product Details
Place of Origin: Hangzhou, China
Brand Name: OEM Produce
Certification: CE. ROHS.
Model Number: Coaxial Connector
Payment & Shipping Terms
Minimum Order Quantity: 30KM
Price: 0.3usd/pcs
Packaging Details: 100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time: 20days after deposit
Payment Terms: TT. LC
Supply Ability: 5000km/ Month
Material: |
Zinc Alloy |
Useful: |
CCTV CATV |
Type: |
F Coaxial Connector Male Compression Adaptor RG6U Plug |
Certificate: |
RoHS CE |
Material: |
Zinc Alloy |
Useful: |
CCTV CATV |
Type: |
F Coaxial Connector Male Compression Adaptor RG6U Plug |
Certificate: |
RoHS CE |

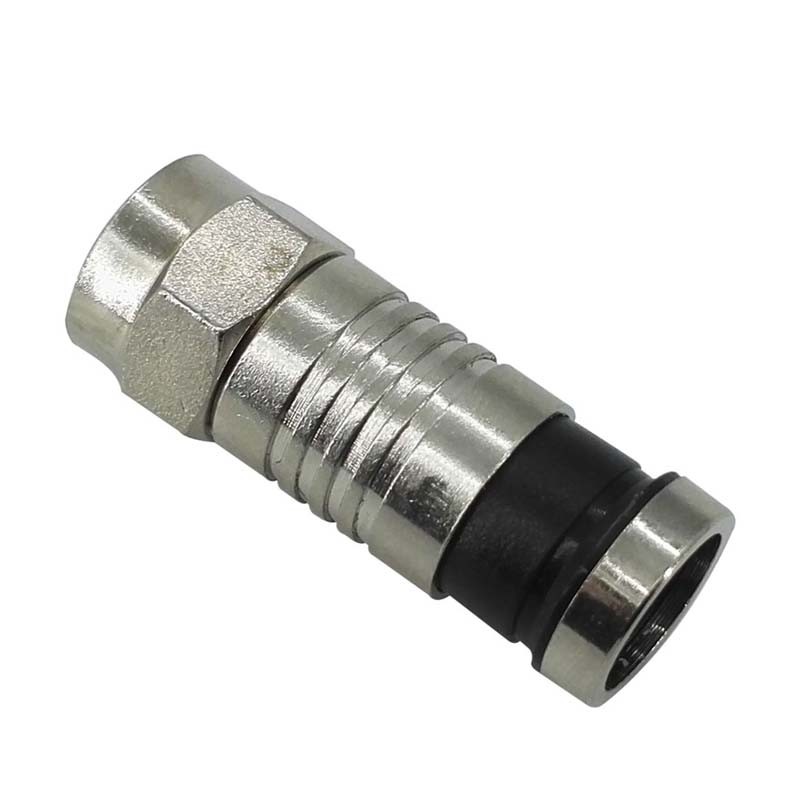

F Coaxial connector Male Compression Adaptor RG6U Plug Black Ring CCTV CATV
Product Details: F Male Compression Connector for RG6 Blue/ CCTV Connector
Description:

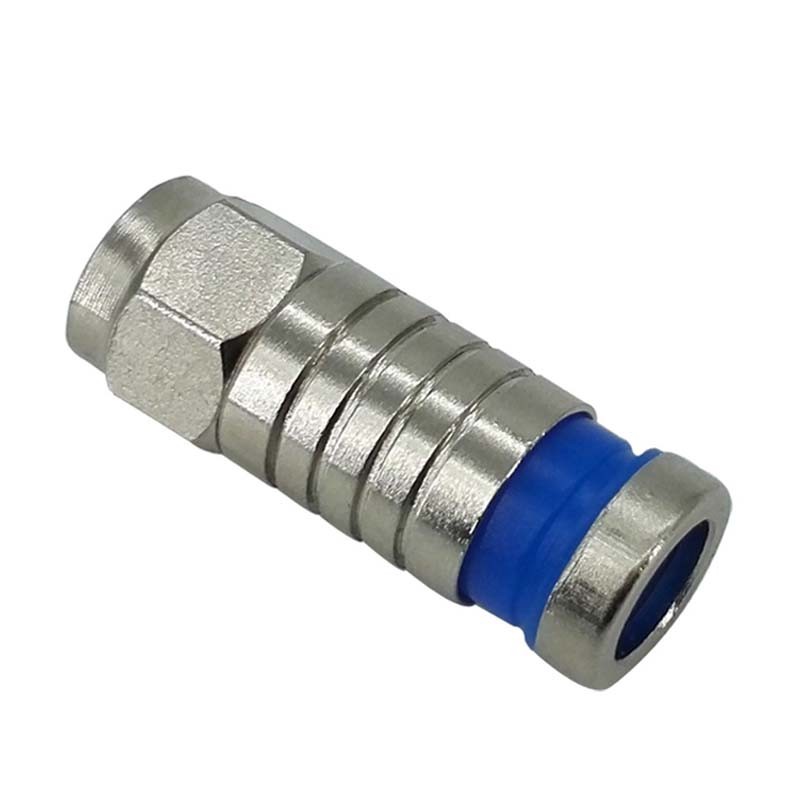

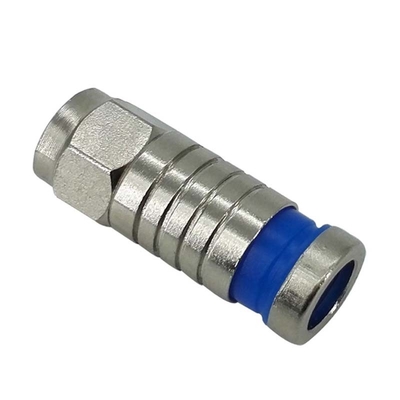

F Male Compression Connector for RG6 Cable with Blue Ring.
Body material: Zinc alloy
Insulating material: PTFE
Length: 31mm
Weight: 7g
| Major Technical Characteristics | |
| Temperature Range | -25 to +60 degree |
| Vibration | 100m/S2 (10 to 500 Hz), 10G |
| Impedance | 75ohm |
| Frequency Range | DC-1GHZ |
| Center Contact Resistance | ≤10Mohm |
| Outer Contact Resistance | ≤5Mohm |
| Insulation Resistance | ≥1000Mohm |
| Insertion Loss | ≤0.20dB/3GHz |
| Voltage Standing Wave Ratio : | |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Durability (Mating) | ≤500(cycles) |
Application:
The F connector is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and universally for satellite television and cable modems, usually with RG-6/U cable or, in older installations, with RG-59/U cable.
The F connector is inexpensive, yet has good 75 Ω impedance match up to 1 GHz and has usable bandwidth up to several GHz. Most male connectors have a matching threaded connecting ring, though push-on versions are also available.
Push-on F connector ends provide poor shielding against airborne signals (e.g., a nearby TV transmitter will interfere with a CATV station).
