75 Ohm Coaxial Cable RG11/ F1160 Trunk Telecom Wire Foamed PE(Skin-Foam-Skin))



75 Ohm Coaxial Cable RG11/ F1160 Trunk Telecom Wire Foamed PE(Skin-Foam-Skin))



RG Series Coaxial cable

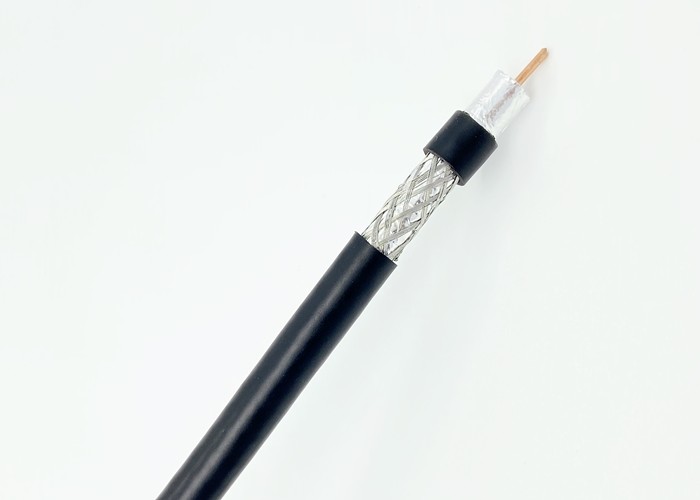

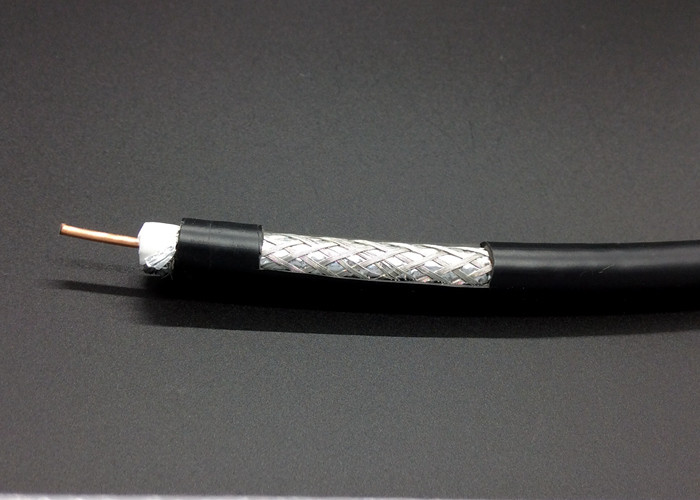

RG11: 1.63mm Cu+7.25mm FPE+AL Foil+16x6x0.16mm AL(70%) +10.10mm PVC

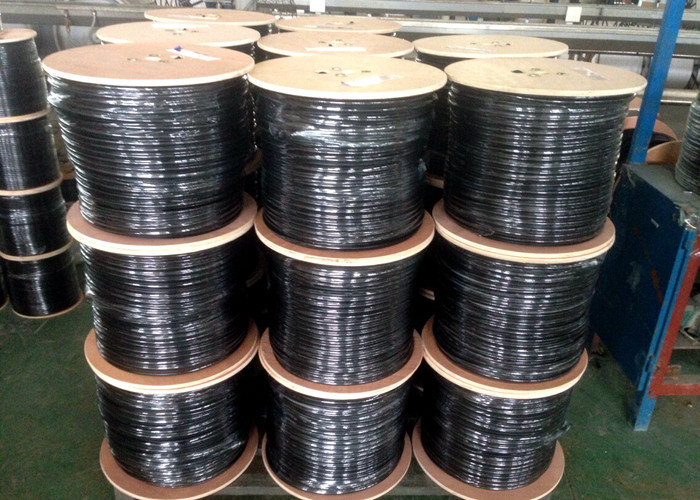

Packing: 305m/wooden drum



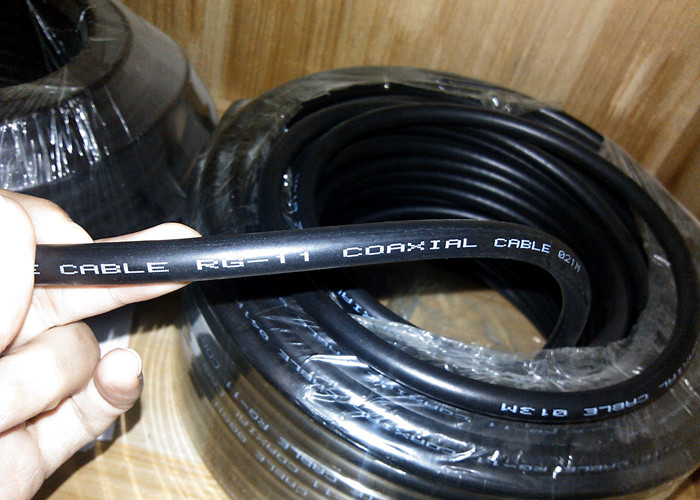

RG11 Coaxial cable

RG11 Coaxial Cables are generally used in video transmission, CCTV, Digital TV, Satellite TV system abd HFC broadband networks.

Advanced Features:

Presented below are key features of RG Series which are widely represented in different versions within this catalogue.

All of these products have some common features including:

--Closed cell Foamed PE Dielectric

--Attenuation Swept from 5MHz-2GHz

--High screening effectiveness, also know as Class A+/ Class A++ Screen Attenuation(AS) according to EN50117 SPECIFICATIONS

--Long-lasting stability of signal attenuation thanks to physical gas injected foam PE dielectric technology(skin-foam-skin)

--Coaxial cables with PVC Jacket, flexible thermo-plastic material commonly used on general purpose coaxial products. Temprature rating:-40℃ to 80℃

--Coaxial cables with PE outer sheath, strong enough to protect the coaxial core from the environment, must be used for outdoor / underground/ direct burial installations. Temprature rating:-55℃ to 85℃

--Characteristics of LSZH: flame and fire retartant, low smoke and fume emission, zero halogen and UV resistant

--Series of Anti-corrosion protection materials are available

--Cable marked Footage/ Meters



Construction	Material	Diameter(mm)
Inner Conductor	BC	1.63
Dielectric	Foam PE	7.25
First Shield	Bonded AL Foil	25
Second Shield	AL Braid	70%
Outer Jacket	PVC	10.1

Electrical Characteristics

Impedance (Ω)	75±3
Capacitance (pF/m)	52±2
Velocity of Propagation(﹪)	85.0
Return Loss   5-1000MHz(dB)	≥22
Return Loss  1000-3000MHz(dB)	≥20

Attenuation(@20℃)

Frequency (MHZ)	Min Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.4	1.3
55	1.0	3.2
187	1.7	5.7
211	1.9	6.2
400	2.6	8.5
500	2.9	9.5
750	3.6	11.9
860	4.0	13.1
1000	4.3	14.3
1500	5.1	16.8
1800	5.7	18.6
2200	6.3	20.7
3000	7.6	24.9



TYPE	Conductor		Insulation		Braid Shield			Jacket		Nom. Imped Ohm	Nom. Capa. pF/m	Attenuation 100MHz db/Km
	No./mm	MTRL	mm	MTRL	No./mm	No./mm	MTRL	O.D mm	MTRL
RG-6/U	1/1.02	BC	4.57	FPE	AF	95%	TC	6.9	PVC	75	55	94
RG-8/U	7/0.9	BC	7.24	FPE	95%	-	BC	10.3	PVC	52	85	64
RG-8/U	7/0.724	BC	7.24	PE	95%	-	BC	10.3	PVC	52	97	70
RG-8/X	19/0.287	BC	3.94	FPE	95%	-	BC	6.15	PVC	52	85	121
RG-11/U	1/1.63	BC	7.24	FPE	DF	75%	TC	10.3	PVC	75	57	49
RG-14/U	1/2.591	BC	9.4	PE	97%	97%	BCBC	13.8	PVC	52	97	50
RG-58/U	1/0.8	BC	2.9	PE	95%	-	TC	5.0	PVC	50	94	140
RG-58A /U	19/0.203	TC	2.9	FPE	AF	97%	TC	5.03	PVC	50	86	131
RG-58A /U	19/0.18	TC	2.95	PE	95%	-	TC	4.95	PVC	50	102	160
RG-58C /U	19/0.18	TC	2.95	PE	95%	-	TC	4.95	NC-PVC	50	102	160
RG-59/U	7/0.254	BC	3.71	FPE	95%	-	BC	6.15	PVC	75	57	98
RG-59/U	1/0.81	BC	3.71	FPE	AF	85%	BC	6.15	PVC	75	57	98
RG-59/U	1/0.643	CCS	3.71	PE	95%	-	BC	6.15	PVC	73	69	120
RG-59A /U	17/0.16	BC	3.71	PE	95%	-	BC	6.15	NC-PVC	73	69	120
RG-59B/U	1/0.584	CCS	3.71	PE	95%	-	BC	6.15	NC-PVC	75	67	120
RG-62/U	1/0.643	CCS	3.71	SSPE	95%	-	BC	6.15	PVC	93	44	83
RG-62A /U	1/0.643	CCS	3.71	SSPE	95%	-	BC	6.15	NC-PVC	93	44	83
RG-62B/U	7/0.203	CCS	3.71	SSPE	95%	-	BC	6.15	NC-PVC	93	44	100
RG-71B/U	1/0.643	CCS	3.71	SSPE	95%	95%	TCTC	6.22	PE	93	44	84
RG-174/U	7/0.16	CCS	1.52	PE	95%	-	TC	2.8	PVC	50	100	260
RG-174A /U	7/0.16	CCS	1.52	PE	95%	-	TC	2.8	NC-PVC	50	100	260
RG-212/U	1/1.412	SC	4.7	PE	97%	97%	SCSC	8.4	NC-PVC	50	98	87
RG-213/U	7/0.752	BC	7.24	PE	95%	-	BC	10.3	NC-PVC	50	98	70
RG-214/U	7/0.752	SC	7.24	PE	97%	97%	SCSC	10.8	NC-PVC	50	98	67
RG-216/U	7/0.404	TC	7.24	PE	97%	97%	BCBC	10.8	PVC	75	67	72
RG-223/U	1/0.90	SC	2.9	PE	97%	97%	SCSC	5.3	NC-PVC	50	98	120
