Bulk CCTV Cable OEM Manufacturer
| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | OEM Produce |
| Certification: | CE. ROHS. CPR |
| Model Number: | 17VATC 75Ohm Coaxial Cable |
| Minimum Order Quantity: | 10km |
| Price: | 7.0usd/ 100m |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Delivery Time: | 20days after deposit |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Connector: | 18AWG CCS/CU | Jacket: | PVC |
|---|---|---|---|
| Color: | White Or Black | Standard: | France Standard |
| Application: | CATV/ MATV System TV Wire | OEM: | Available |
| High Light: | 75 ohm bnc cable,75 ohm video cable |
||
17VATC 75 Ohm Coaxial Cable France Standard CATV/ MATV System TV Wire
17VATC Series Coaxial cable
17VATCStandard
| Construction | Material | Diameter(mm) |
| Inner Conductor | CCS /CU | 1.02 |
| Dielectric | Foam PE | 4.88 |
| First Shield | Bonded AL Foil | 18 |
| Second Shield | BC Braid | 80% |
| Outer Jacket | PVC | 6.8 |
Electrical Characteristics
| Impedance (Ω) | 75±3 |
| Capacitance (pF/m) | 52±2 |
| Velocity of Propagation(﹪) | 85.0 |
|
Return Loss 5-1000MHz(dB) |
≥22 |
|
Return Loss 1000-3000MHz(dB) |
≥20 |
Attenuation(@20℃)
| Frequency (MHZ) | Min Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 1.3 | 1.8 |
| 50 | 3.7 | 4.6 |
| 100 | 5.6 | 7.1 |
| 200 | 8.1 | 9.0 |
| 400 | 11.7 | 13.0 |
| 800 | 17.0 | 19.0 |
| 862 | 17.7 | 19.8 |
| 950 | 18.7 | 20.9 |
| 1350 | 22.8 | 25.5 |
| 1750 | 26.4 | 29.6 |
| 2150 | 29.4 | 33.4 |
| 3000 | 36.2 | 40.6 |

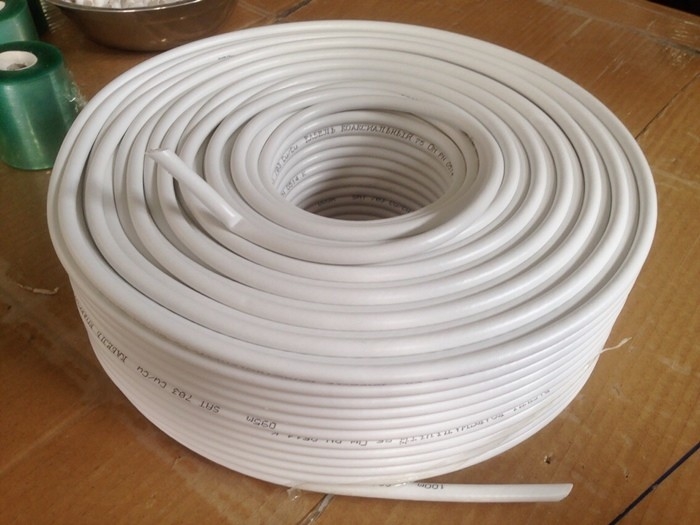

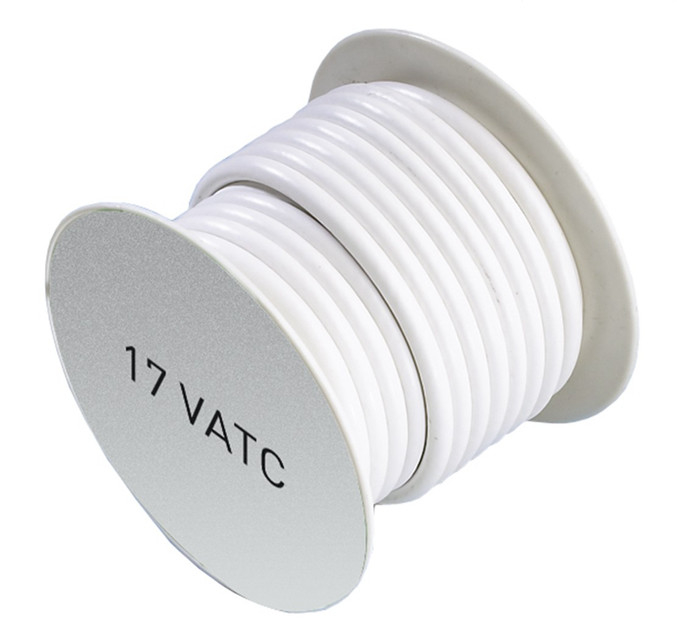

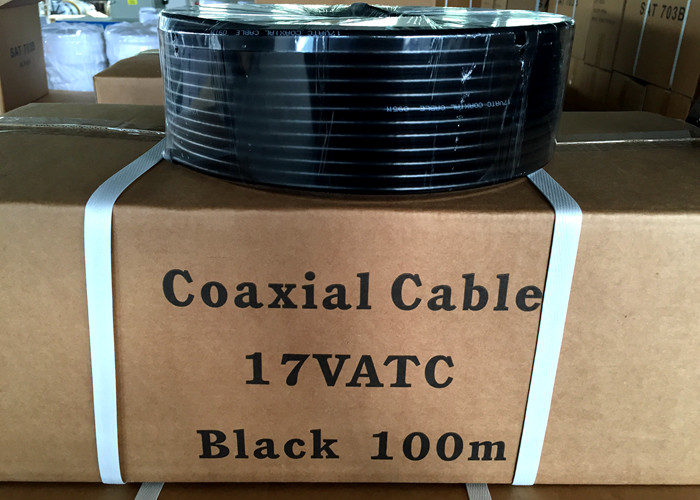

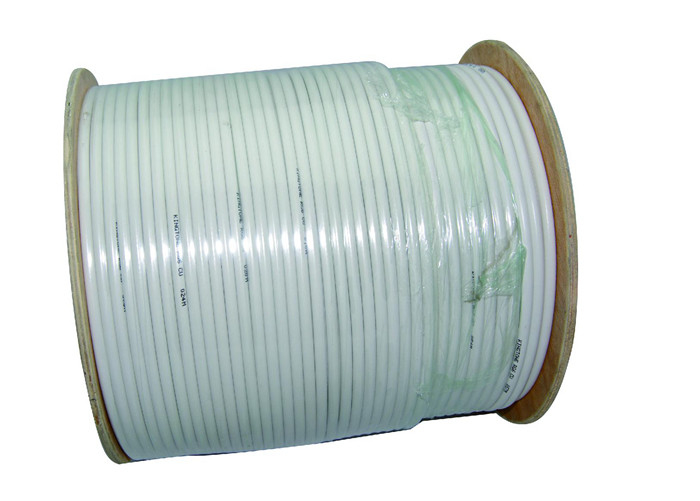

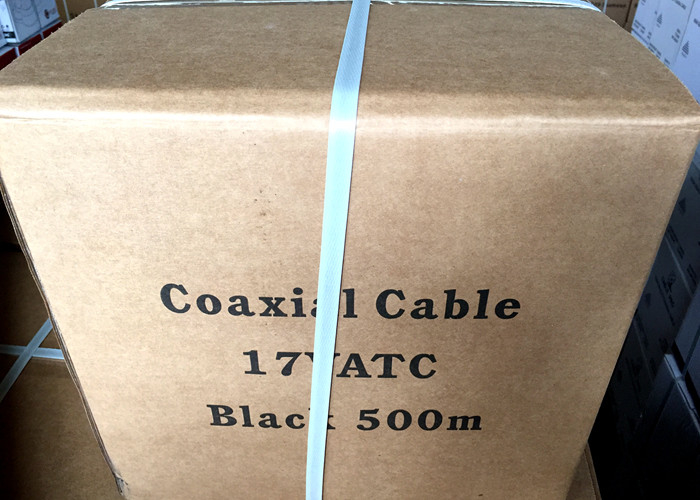

17/ 19VATC Coaxial Cable 305M/ 1000M Packing
Cables Loading the Container and Delivery to Port
OEM Packing As Required
Testing
Cable Raw Material
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
